4. LUBRICATION SYSTEM
4-7
MX’er SYSTEM

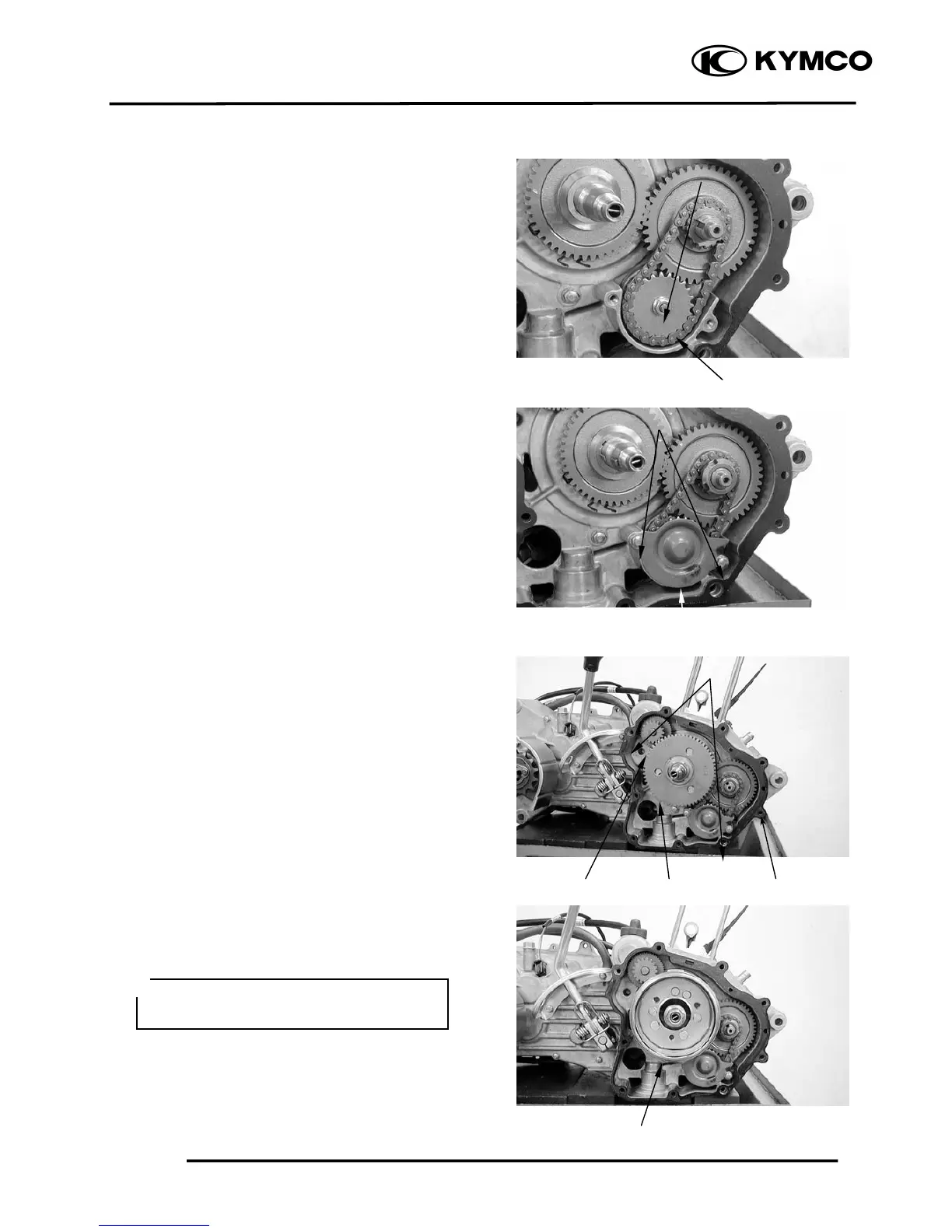

Install the pump driven gear and drive chain
by aligning the pump driven gear with the
cutout in the pump shaft.
Flywheel
Starter Idle Gea
r
Bolts
Nu
t
Pump Driven Gea
r
Starter Clutch
Install and tighten the pump driven gear nut.
Torque: 0.81.2kgf-m
Install the oil separator cover and tighten
the bolts.
Install the starter idle gear and starter
clutch.
Install the starter clutch nut and tighten it to
specified torque..
Torque: 9.5 kgf-m
Install the gasket and dowel pins.
Install the A.C. generator flywheel.
Install the right crankcase cover.
Torque: 0.81.2kgf-m
Oil Separator Cove
r
Dowel Pin
Gaske
t
Diagonally tighten the bolts in 23
times.

