Kyocera FS-1920 User Manual

2FP/2FY/2FR
1-6-31
(2) Removing the heater lamp
WARNING The heater lamp is extremely hot immediately after the printer was running. Allow substantial period of
time until it cools down.
CAUTIONS The heater lamps are fragile. Use extreme care when handling not to drop or break.
Do not directly touch on the heater lamp. Finger prints on the heater lamp’s outer surface can prevent
proper fusing of toner on paper. When holding the heater lamp, hold the ceramic parts of heater lamp at
both ends.
When refitting the heater lamp, direct the wattage making side facing the heat gear Z36 side.
1. Remove and split the fuser unit. See page 1-
6-27.
2. Remove the lamp support.
3. Remove two screws and heater wire terminal.
4. Remove the heater lamp from the heat roller.

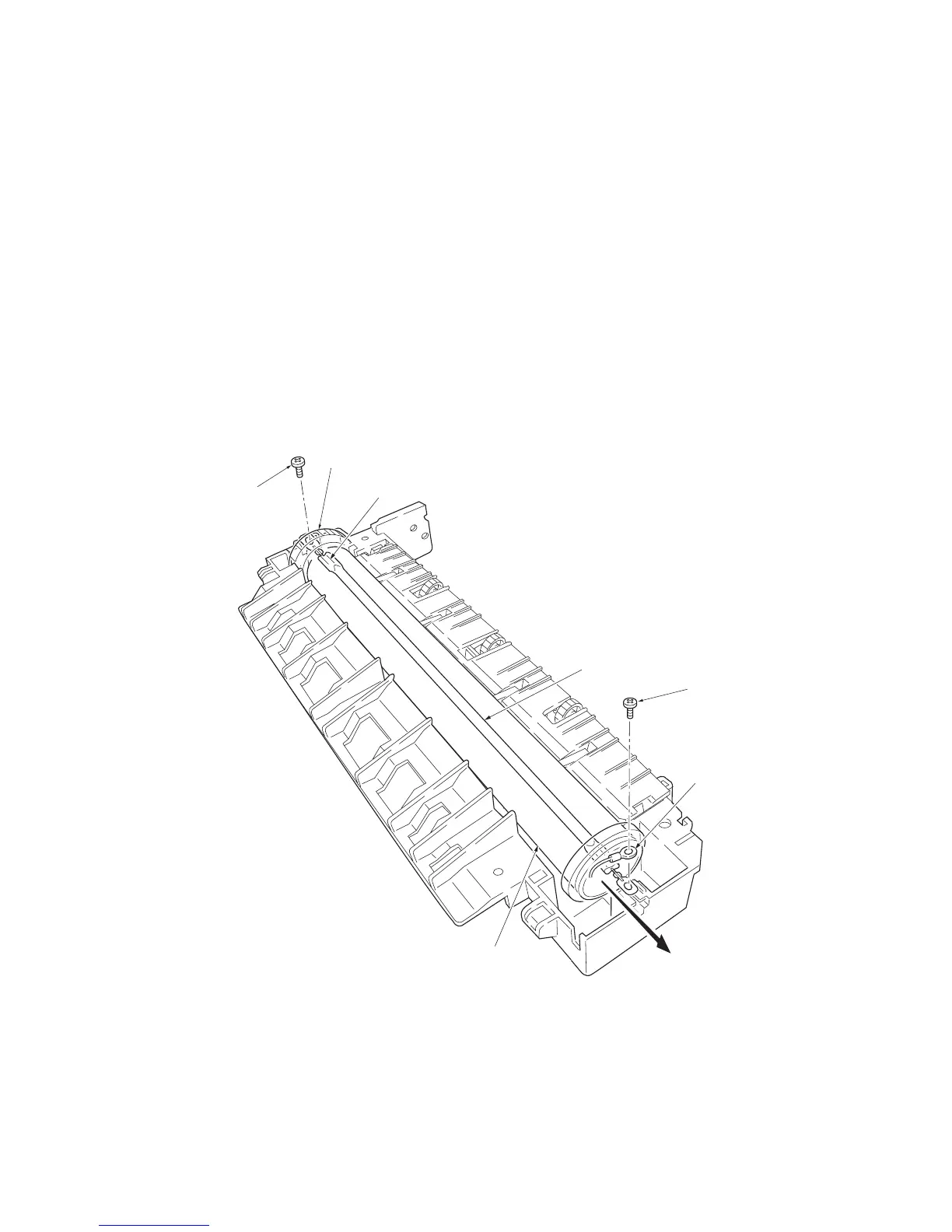

Figure 1-6-30 Removing the heater lamp
Screw
Heater lamp
Heat roller
Heater wire
terminal
Heat gear Z36
Screw
Wattage marking

Kyocera FS-1920 Specifications

General

Print Technology	Laser
Resolution	600 x 600 dpi
Warm-up Time	15 seconds
Time to First Page	9 seconds
Processor Frequency	200 MHz
Type	Monochrome Laser Printer
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Memory	32 MB
Output Capacity	250 sheets
