13. Remove the connector.
14. Remove seven screws and then remove the
power source PWB.
15. Check or replace the power source unit and
refit all the removed parts.

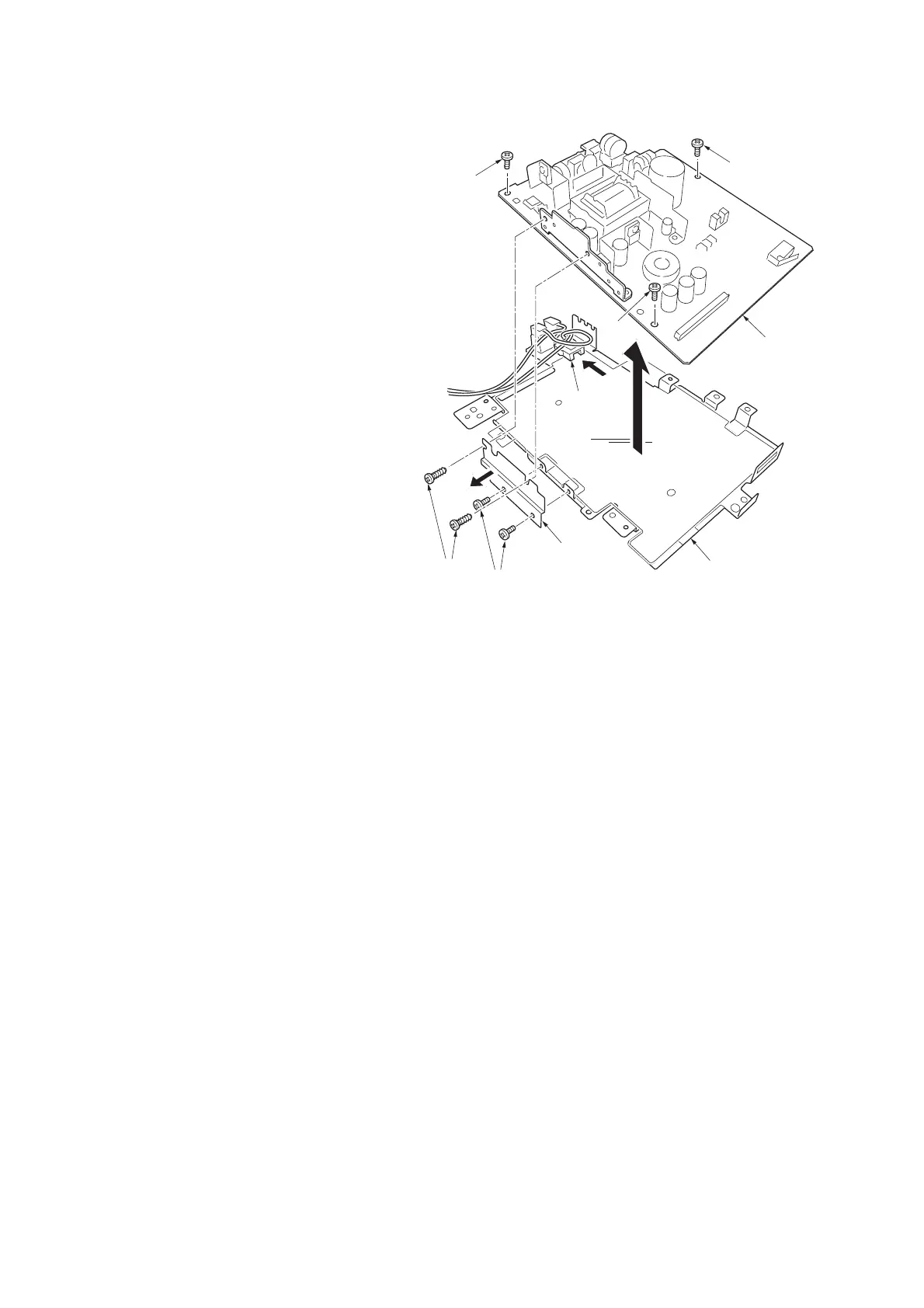

Figure 1-5-45
Screw
Screws
Power source plate
Heat sink plate
Screws
Screw
Screw
Power source PWB
Connector
