Kyocera FS-C8500DN Service Manual

4
C
E
10
9
7
8

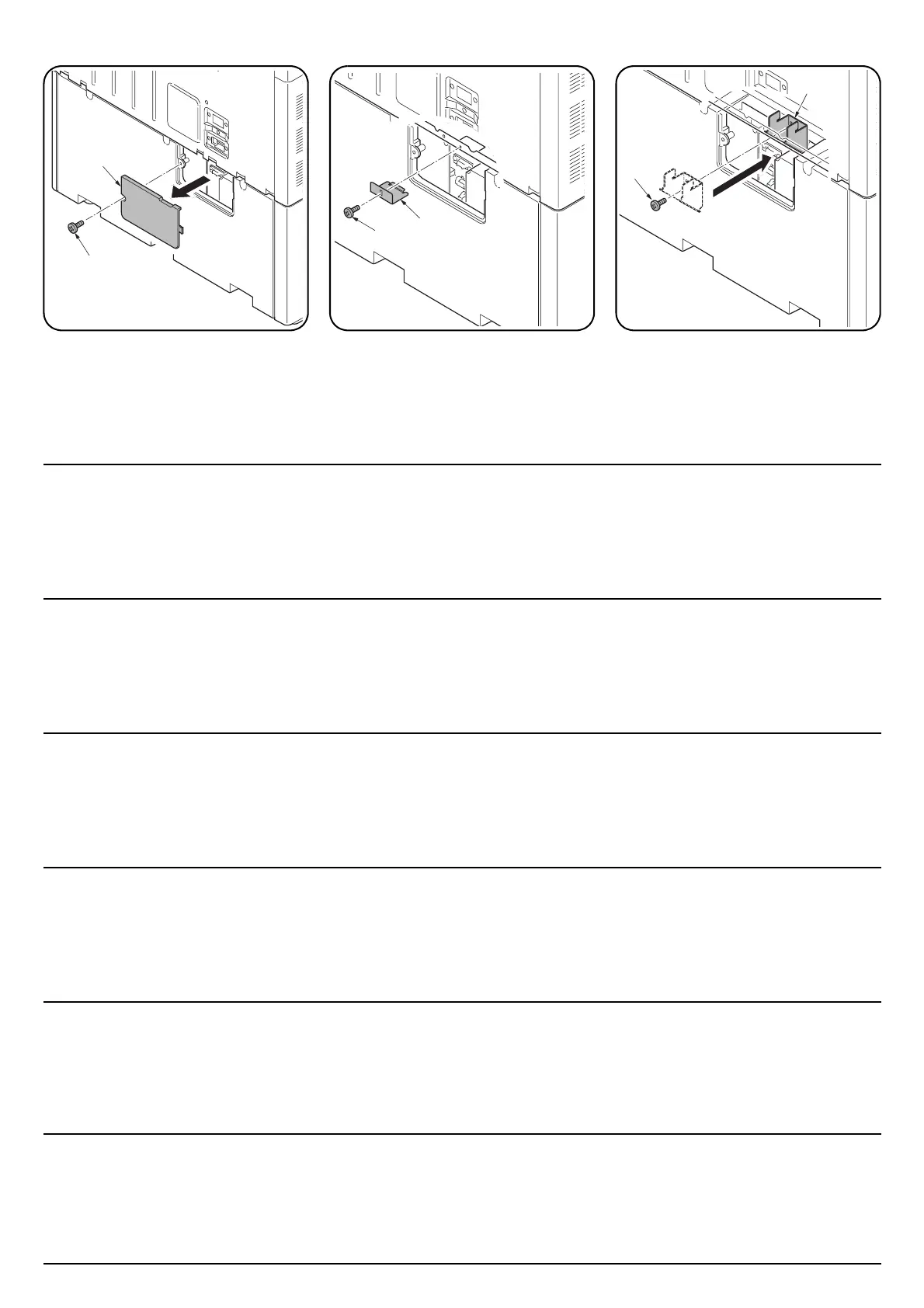

7. Remove the screw (7) at the rear side of the
paper feeder to remove the cover (8).
8. Remove the screw (9) to remove the metal
plate (10).
9. Secure the retainer (C) with the screw (E).
7. Retirer la vis (7) située sur le côté arrière du
bureau papier pour retirer le couvercle (8).
8. Retirer la vis (9) pour déposer la plaque
métallique (10).
9. Fixer le e
lément de retenue (C) à l'aide de la
vis (E).
7. Quite el tornillo (7) en el lado trasero del
alimentador de papel para desmontar la tapa
(8).
8. Quite el tornillo (9) para desmontar la placa
de metal (10).
9. Asegure la
retén (C) con el tornillo (E).
7. Die Schraube (7) auf der Rückseite des
Papiereinzugs herausdrehen, um die
Abdeckung (8) abzunehmen.
8. Die Schraube (9) herausdrehen, um die
Metallplatte (10) abzunehmen.
9. Die halterung (C) mit der Schraube (E)
befestigen.
7. Rimuovere la vite (7) dal retro dell’unità di
alimentazione della carta per togliere il
coperchio (8).
8. Rimuovere la vite (9) per togliere la piastra di
metallo (10).
9. Fissare la
fermo (C) con la vite (E).
7. ペーパーフィーダ後側のビス (7)1 本を外
し、カバー(8) を取り外す。
8. ビス (9)1 本を外し、金具 (10) を取り外す。 9. ビス (E)1 本で取付板 (C) を固定する。
7. 拆除供纸盒后侧的 1 个螺丝 (7)，拆下盖板
(8)。
8. 拆除 1 个螺丝 (9)，拆下金属件 (10)。 9. 使用螺丝 (E) 安装板 (C)。

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
