Kyocera Mita FS-1128MFP Service Manual

2JN
1-5-6
1-5-3 Paper feed section

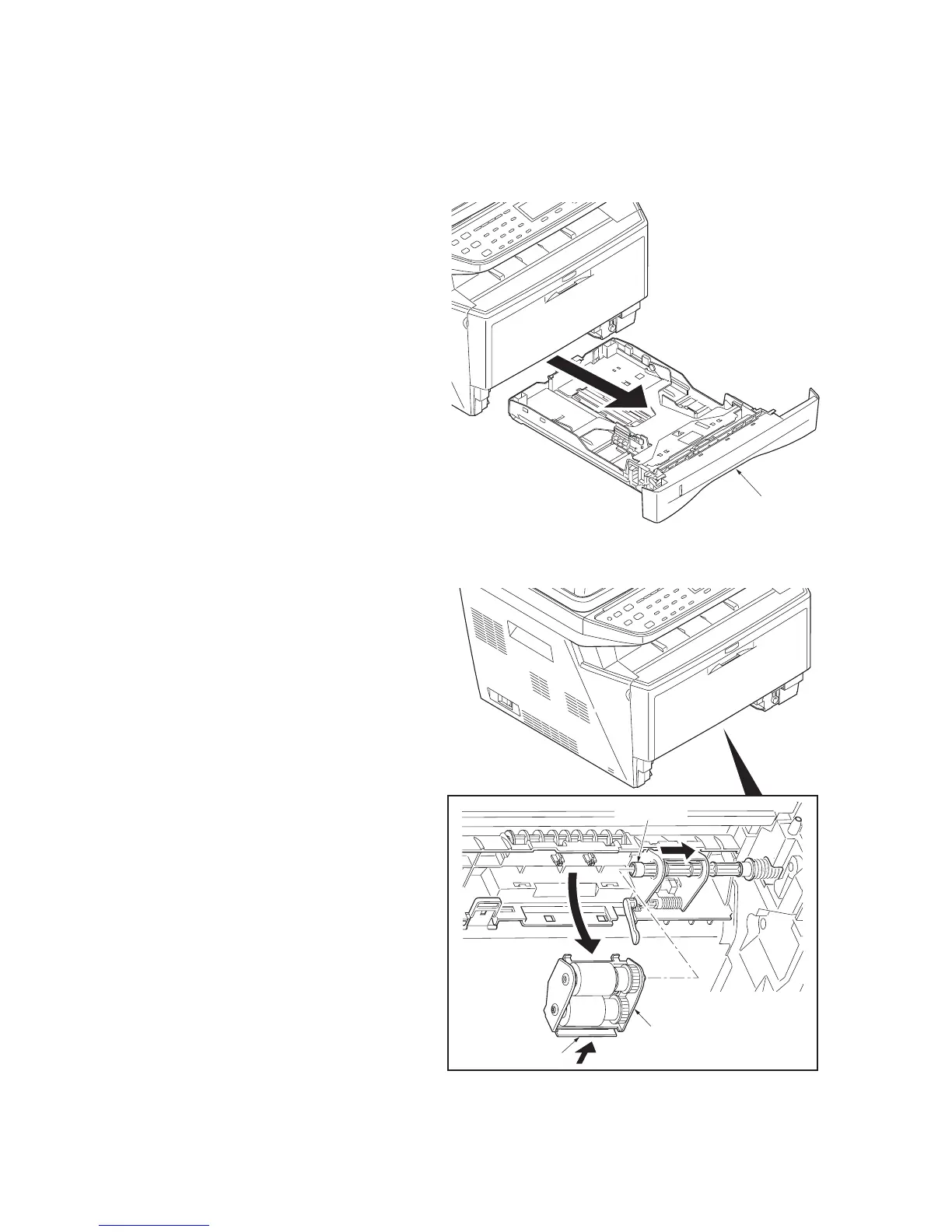

(1) Detaching and refitting the paper feed assembly (paper feed roller and pickup roller)
Procedure
1. Remove the cassette.
Figure 1-5-7
2. Slide the feed shaft.
3. While pressing the lever and then remove
the paper feed roller assembly.
Figure 1-5-8
Cassette
Lever
Feed shaft
Paper feed roller
assembly

Kyocera Mita FS-1128MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Monthly Duty Cycle	20, 000 pages
Functions	Print, Copy, Scan, Fax
Fax Transmission Speed	33.6 Kbps
Print Speed	28 ppm
Copy Speed	28 cpm
Standard Paper Capacity	250 sheets
Automatic Document Feeder (ADF)	50 sheets
