2JN
1-5-27
(5) Detaching and refitting the exposure lamp and inverter PWB
Procedure
1. Remove the DP (See page 1-5-13).
2. Move the image scanner unit (ISU) unit to
the center.
3. Unhook five hooks and then remove the
lamp mount.
4. Remove the connector.

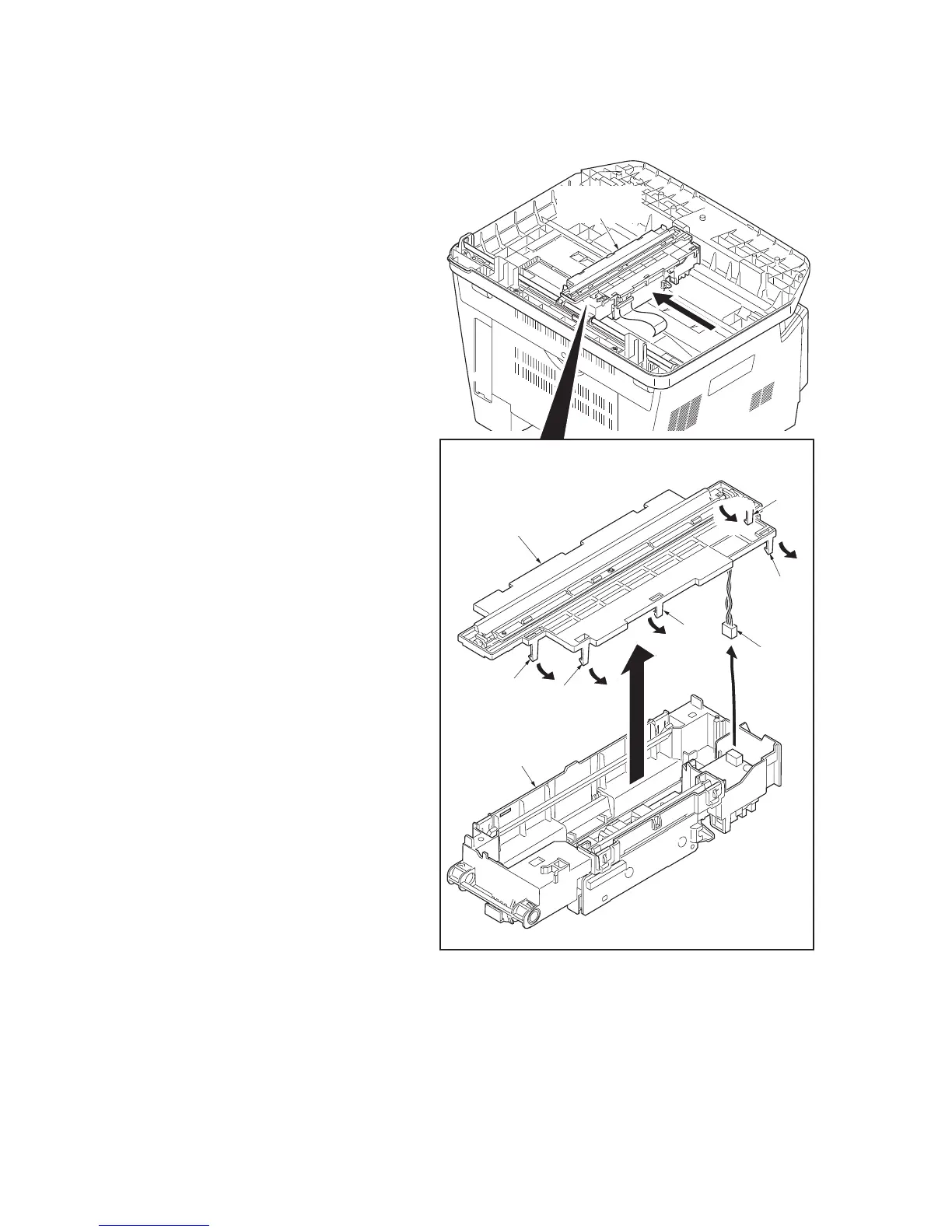

Figure 1-5-40
Hook
Hook
Hook
Hook
Hook
Lamp mount
Connector
Image scanner
unit (ISU)
Image scanner
unit (ISU)
