Kyocera Mita FS-1128MFP Service Manual

2JN-1
1-5-49

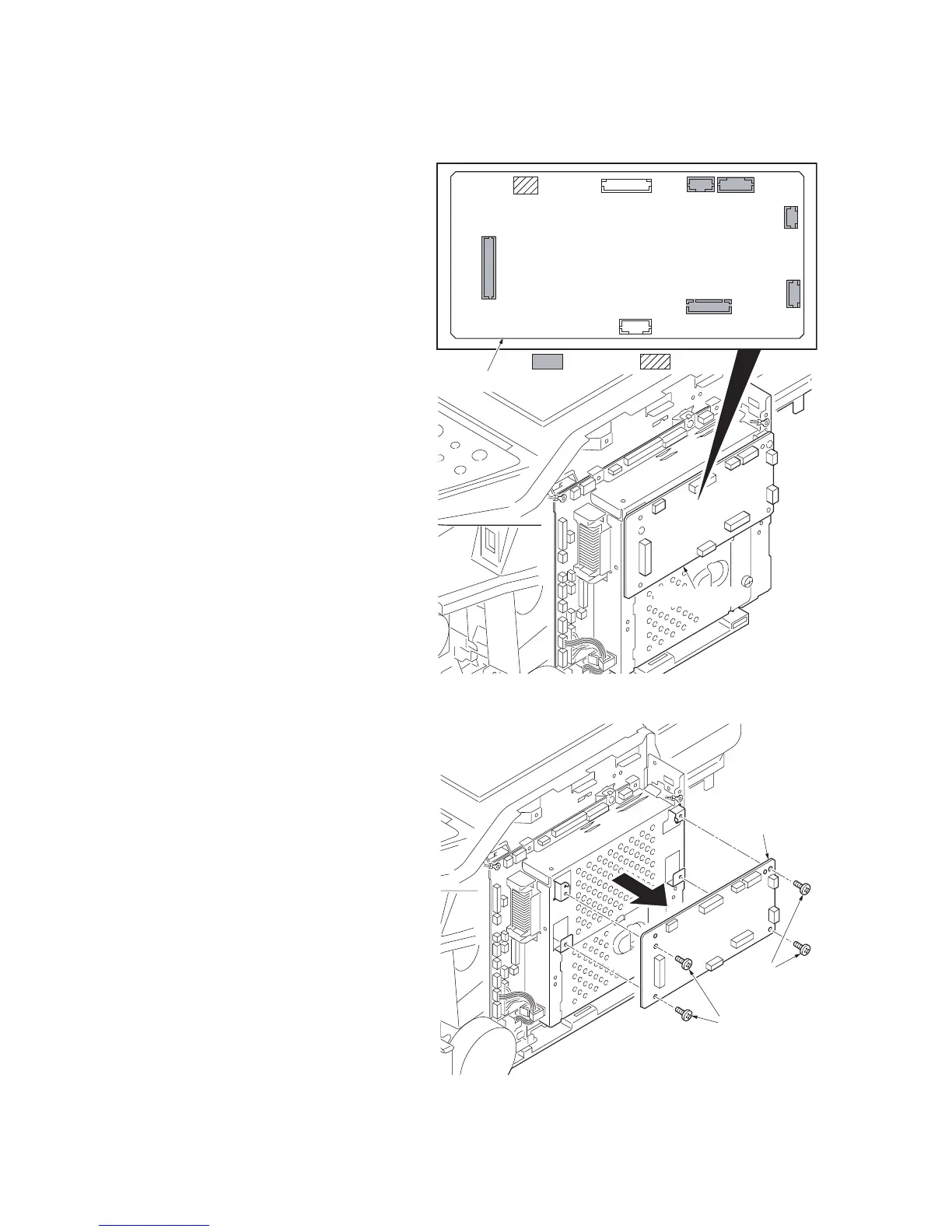

(4) Detaching and refitting the scanner PWB
Procedure
1. Remove the right cover (See page 1-5-3).
2. Remove six connectors and the FFC from
the scanner PWB.
Figure 1-5-74
3. Remove four screws and then remove the
scanner PWB.
4. Check or replace the scanner PWB and refit
all the removed parts.
NOTE:
When the replacing the scanner PWB, per-
form following maintenance modes.
1. U425 Setting the target (see page 1-3-46)
2. U411 Adjusting the scanner automatically
(see page 1-3-45)
Figure 1-5-75
YC102
YC103
FFCConnectors
Scanner PWB
Scanner PWB
YC101
YC109
YC108YC104
YC105
Scanner PWB
Screws
Screws

Kyocera Mita FS-1128MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Monthly Duty Cycle	20, 000 pages
Functions	Print, Copy, Scan, Fax
Fax Transmission Speed	33.6 Kbps
Print Speed	28 ppm
Copy Speed	28 cpm
Standard Paper Capacity	250 sheets
Automatic Document Feeder (ADF)	50 sheets
