Kyocera Mita FS-1128MFP Service Manual

2JN
1-5-39
1-5-9 PWBs
(1) Detaching and refitting the control PWB
Procedure
1. Remove the FAX PWB (See page 1-5-50).
2. Remove the right cover (See page 1-5-3).
3. Remove the five connectors from the scan-
ner PWB.
4. Remove twenty connectors and two FFCs
from the control PWB.
5. Remove the wires from the clamp.

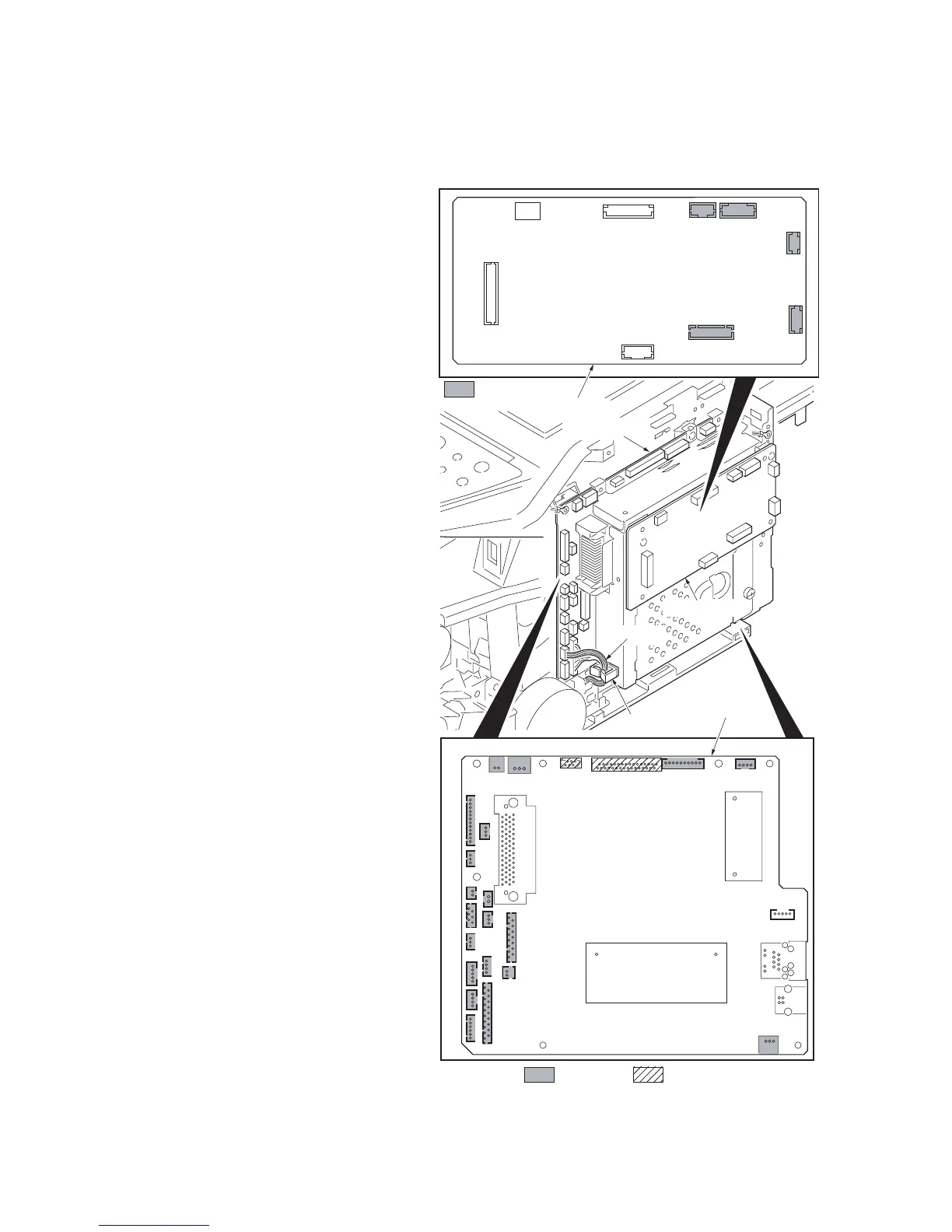

Figure 1-5-59
Scanner PWB
Wires
Clamp
YC29YC28
YC6
YC8
YC7
(FFC)(FFC)
YC3
YC19
YC30
YC23
YC25 YC17
YC13
YC16 YC20
YC27
YC21 YC18
YC24
YC10
YC26
YC9
YC12
YC101
YC109
YC108YC104
YC105
Connectors
FFCsConnectors
Control PWB
Scanner PWB
Control PWB

Kyocera Mita FS-1128MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Monthly Duty Cycle	20, 000 pages
Functions	Print, Copy, Scan, Fax
Fax Transmission Speed	33.6 Kbps
Print Speed	28 ppm
Copy Speed	28 cpm
Standard Paper Capacity	250 sheets
Automatic Document Feeder (ADF)	50 sheets
