Kyocera Mita FS-1128MFP Service Manual

2JN
1-5-8
(2) Detaching and refitting the retard roller assembly
Procedure
1. Remove the cassette (See page 1-5-6).
2. Push the bottom plate down until it locks.
3. Unhook two hooks and then remove the
retard guide.

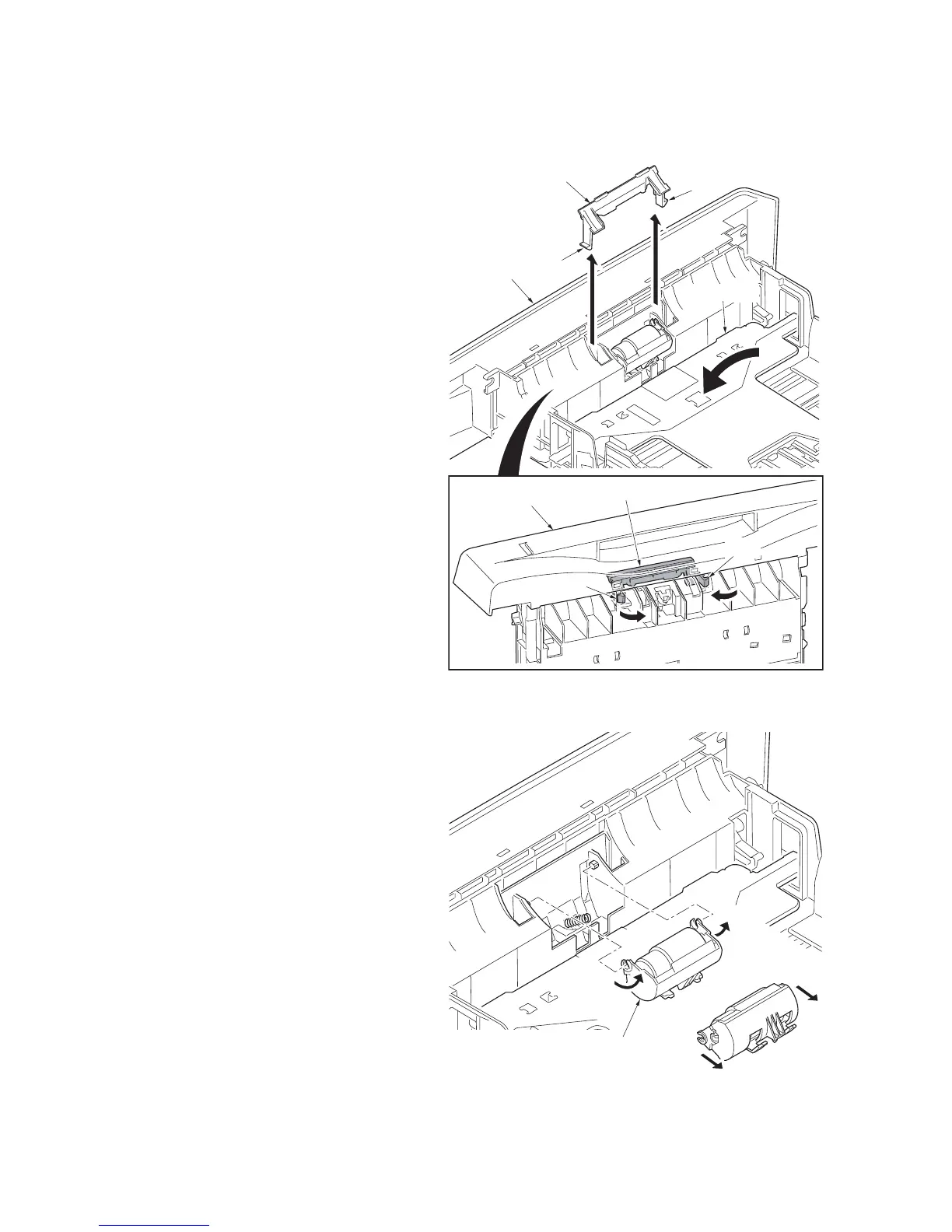

Figure 1-5-10
4. Remove the retard roller assembly.
Figure 1-5-11
Retard guide
Retard guide
Cassestte
Cassette
Hook
Hook
Hook
Hook
Bottom plate


Retard roller
Assembly

Kyocera Mita FS-1128MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Monthly Duty Cycle	20, 000 pages
Functions	Print, Copy, Scan, Fax
Fax Transmission Speed	33.6 Kbps
Print Speed	28 ppm
Copy Speed	28 cpm
Standard Paper Capacity	250 sheets
Automatic Document Feeder (ADF)	50 sheets
