Kyocera Mita FS-1128MFP Service Manual

2JN
2-1-3
(3) Paper conveying section

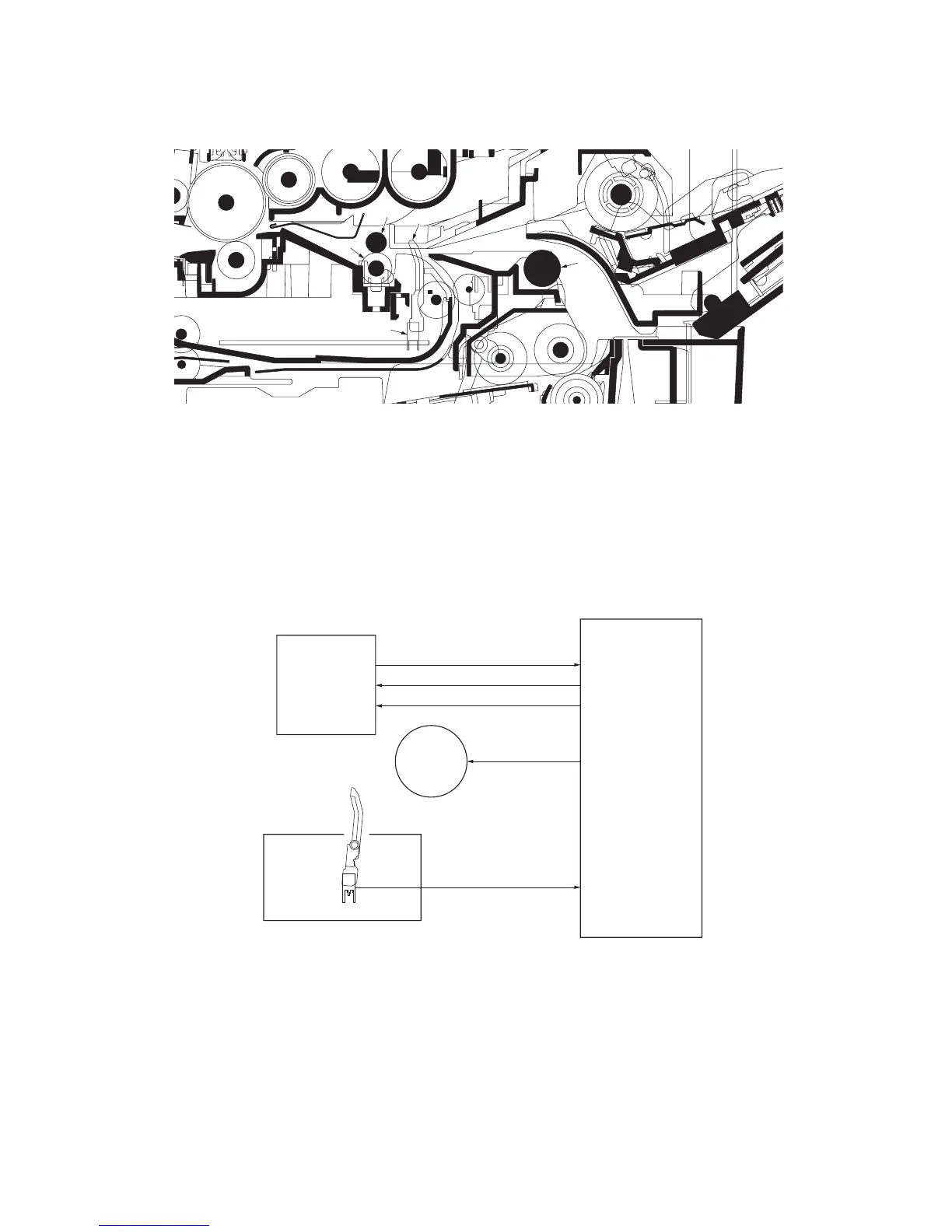

Figure 2-1-5 Paper conveying section
Figure 2-1-6 Paper conveying section block diagram
1
4
3
5
2
(1) Lower registration roller
(2) Upper registration roller
(3) Registration sensor
(4) Actuator (registration sensor)
(5) Feed pulley
MMOTRDYN
REGDRN
Registration
clutch
Main motor
Control PWB
YC23-11
Registration
sensor
High voltage PWB
REGN
YC20-2
MOTCLK
REMOTEN
YC17-3
YC17-4
YC17-5

Kyocera Mita FS-1128MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Monthly Duty Cycle	20, 000 pages
Functions	Print, Copy, Scan, Fax
Fax Transmission Speed	33.6 Kbps
Print Speed	28 ppm
Copy Speed	28 cpm
Standard Paper Capacity	250 sheets
Automatic Document Feeder (ADF)	50 sheets
