Kyocera Mita FS-1128MFP Service Manual

2JN
1-6-1
1-6 Requi rements on P WB Replacement
1-6-1 Upgrading the firmware
Follow the procedure below to upgrade the firmware of control PWB (main controller and engine) and scanner PWB.
Preparation
Extract the file that has the download firmware and put them in the USB Memory.
Procedure
1. Turn ON the main switch and confirm if the
screen shows “Ready to print” then, turn
OFF the main power switch.
2. Insert USB memory that has the firmware in
the USB memory slot.
3. Turn ON the main power switch.
4. About 40 seconds later, “Firmware Update
Downloading” will be displayed and blinking
the memory LED (this shows to start the
download).
5. Display the software that now upgrading (5
minutes).
“Firmware Update Main”
“Engine”
“Scanner”
6. Display the completion of the upgrade
(Memory LED is ON condition).
Firmware Update
Main: Completed
Engine: Completed
Scanner: Completed

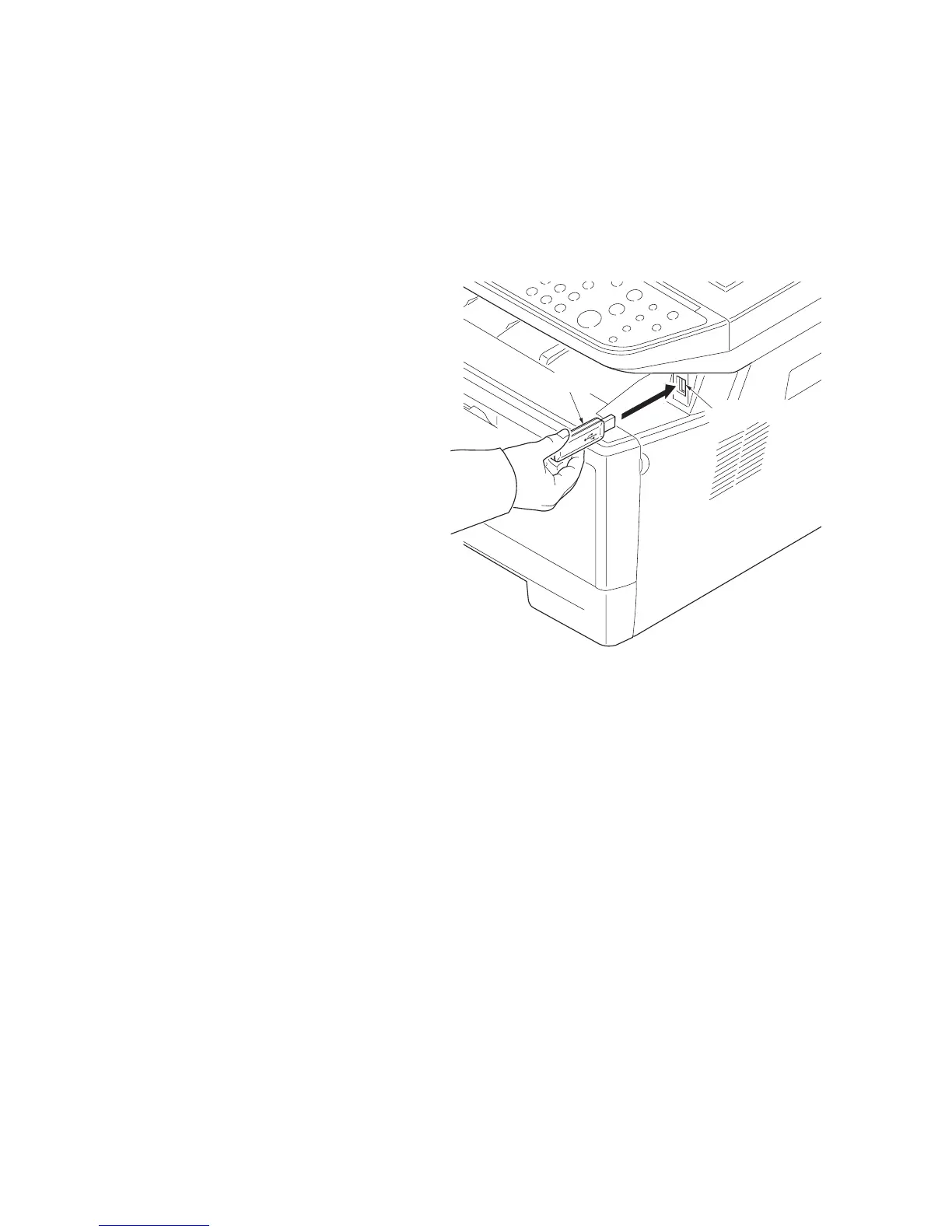

Figure 1-6-1
7. Turn OFF the main power switch and
remove the USB memory.
Check the result of the version up
1. Output the service status by the U000 or
execute U019 to check.
USB memory
USB memory slot

Kyocera Mita FS-1128MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Monthly Duty Cycle	20, 000 pages
Functions	Print, Copy, Scan, Fax
Fax Transmission Speed	33.6 Kbps
Print Speed	28 ppm
Copy Speed	28 cpm
Standard Paper Capacity	250 sheets
Automatic Document Feeder (ADF)	50 sheets
