Kyocera Mita FS-1128MFP Service Manual

2JN
1-5-17
(3) Detaching and refitting the laser scanner unit (LSU)
Procedure
1. Remove the scanner unit (See page 1-5-
14).
2. Remove the screw and then remove the
grounding terminal.
3. Remove two connectors from the control
PWB.

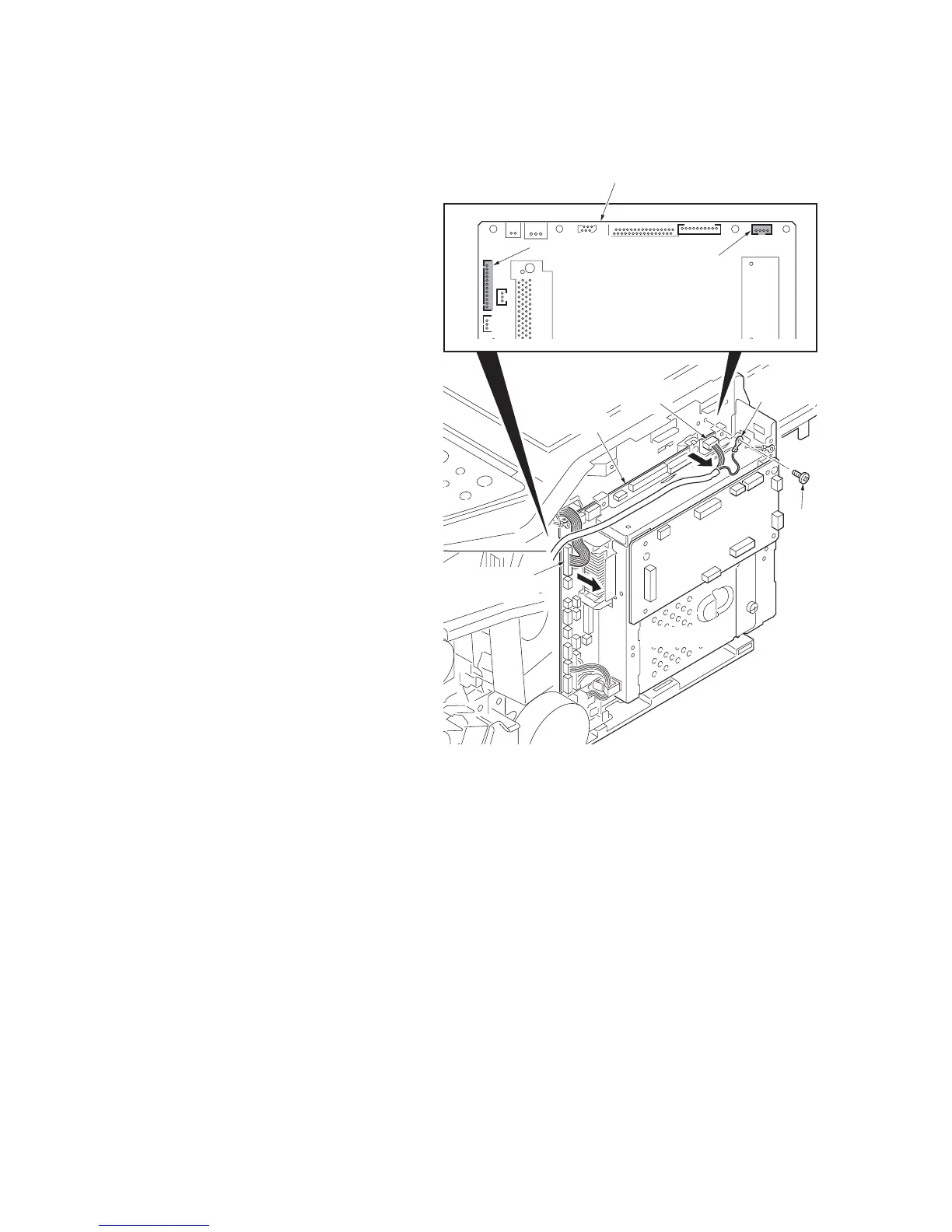

Figure 1-5-21
Control PWB
Connector
Connector
YC3
YC10
Screw
Grounding
terminal
Connector
(YC10)
Connector
(YC3)
Control PWB

Kyocera Mita FS-1128MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Monthly Duty Cycle	20, 000 pages
Functions	Print, Copy, Scan, Fax
Fax Transmission Speed	33.6 Kbps
Print Speed	28 ppm
Copy Speed	28 cpm
Standard Paper Capacity	250 sheets
Automatic Document Feeder (ADF)	50 sheets
