Kyocera Mita FS-1128MFP Service Manual

2JN
1-5-18

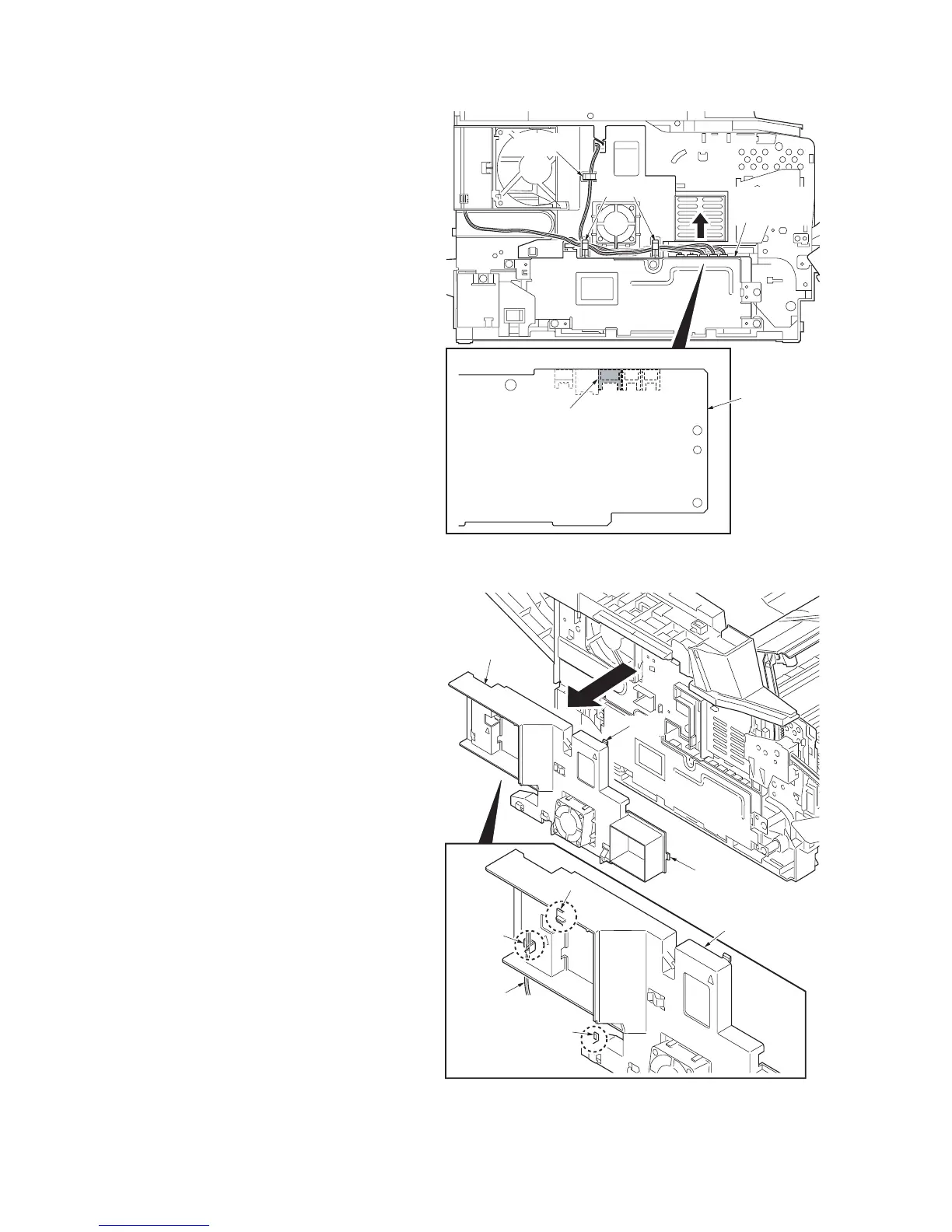

4. Remove the wires from three clamps.
5. Remove the connector from the power
source PWB.
Figure 1-5-22
6. Unhook four hooks and then remove the
frame left duct.
7. Remove the wires from the clamp.
Figure 1-5-23
Clamp
Clamps
Connector
Power source
PWB
Power source
PWB
YC106
Frame left duct
Frame left duct
Hook
Hook
Clamp
Wires
Hook
Hook

Kyocera Mita FS-1128MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Monthly Duty Cycle	20, 000 pages
Functions	Print, Copy, Scan, Fax
Fax Transmission Speed	33.6 Kbps
Print Speed	28 ppm
Copy Speed	28 cpm
Standard Paper Capacity	250 sheets
Automatic Document Feeder (ADF)	50 sheets
