2-1-8 Paper exit section
The paper exit section transports the paper which passed the fuser unit towards the top tray. The paper which passed
through the fuser unit turns on the actuator (exit sensor) in the fuser unit, and is led by the guide comprised of the rear
cover, frame and the FD cover guide, finally reaching the upper FD roller. The paper is delivered to the top tray by the rota-
tion of the upper FD roller.

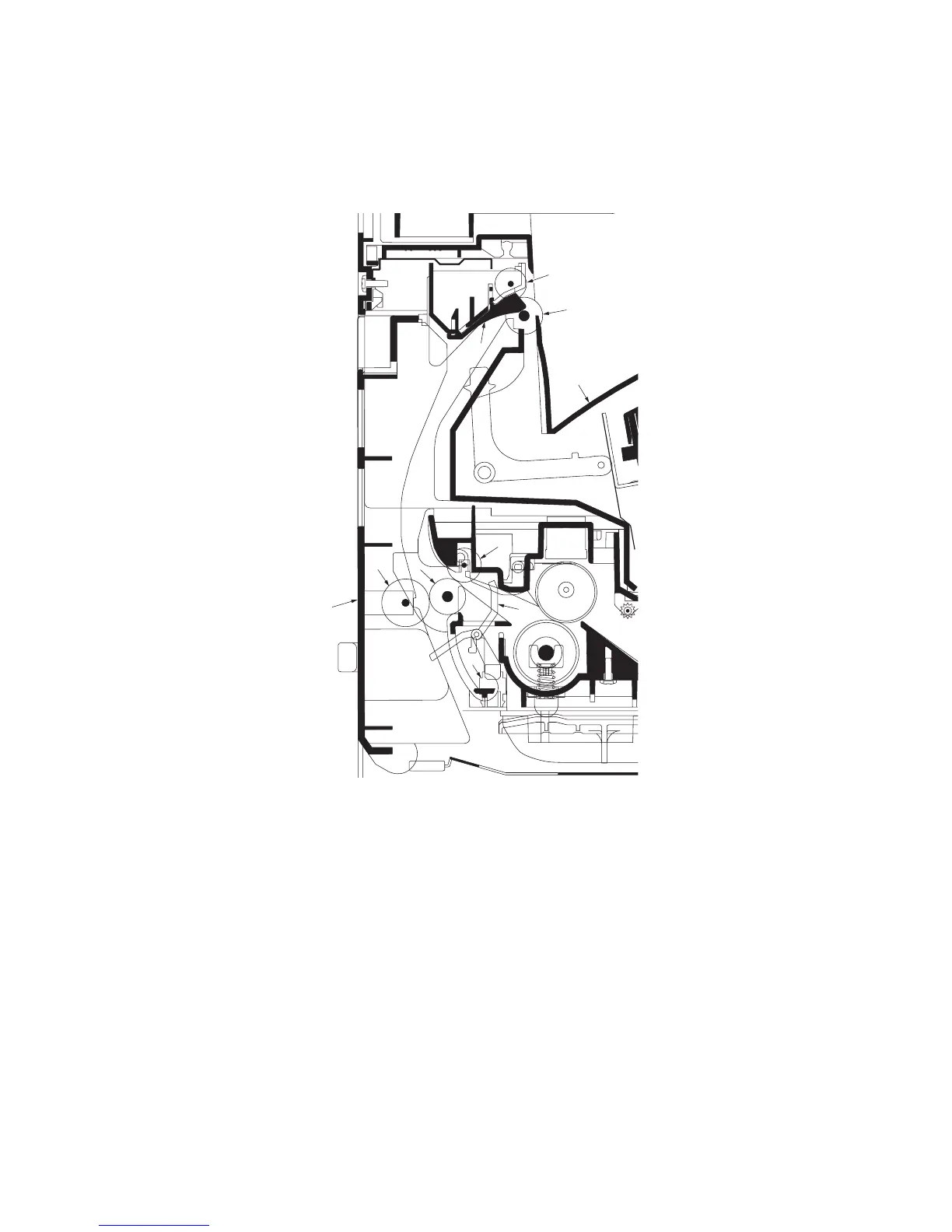

Figure 2-1-23 Paper exit section
3
4
10
5
8
7
6
1
9
2
(1) Exit roller
(2) Fuser exit pulley
(3) Middle pulley
(4) Rear cover
(5) Upper FD roller
(6) Exit pulley
(7) FD cover
(8) Top tray
(9) Exit sensor
(10) Actuator (exit sensor)

Kyocera Mita FS-1128MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Monthly Duty Cycle	20, 000 pages
Functions	Print, Copy, Scan, Fax
Fax Transmission Speed	33.6 Kbps
Print Speed	28 ppm
Copy Speed	28 cpm
Standard Paper Capacity	250 sheets
Automatic Document Feeder (ADF)	50 sheets
