Kyocera Mita FS-1128MFP Service Manual

2JN
1-1-4
1-1-2 Parts names
(1) Overall

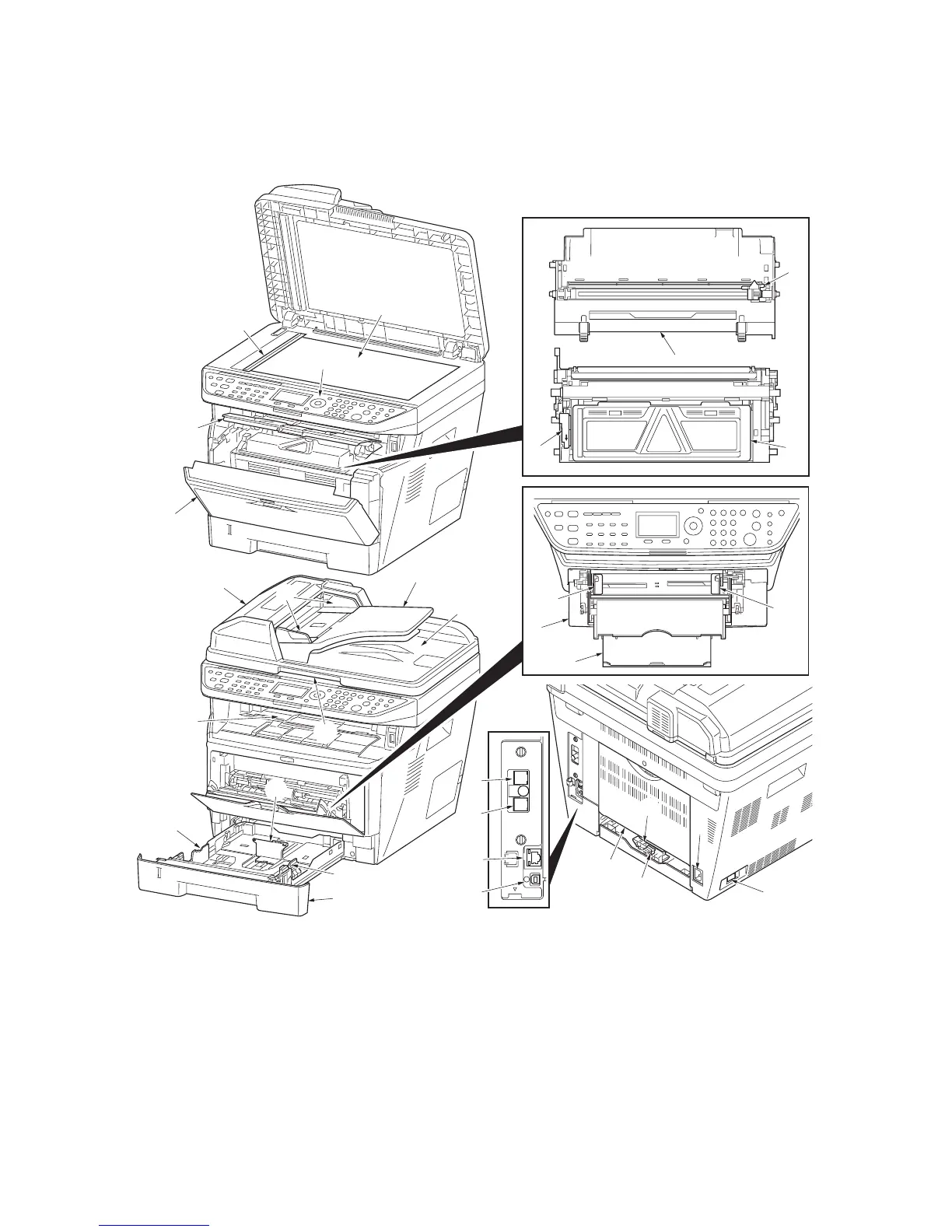

Figure 1-1-1
25
6
8
7
1
2
4
5
9
10
12
11
13
13
17
18
22
24
23
19
20
21
16
15
15
14
3
12
26
27
28
29
1. Platen (contact glass)
2. Original size Indicator plate
3. Operation panel
4. Top cover
5. Front cover
6. Main charger cleaner
7. Drum unit
8. Lock lever
9. Toner container
10. Top tray
11. Paper length guide
12. Paper stopper
13. Paper width guides
14. Cassette
15. Paper width guides (MP tray)
16. MP (Multi-Purpose) tray
17. MP tray extension
18. USB Interface connector
19. Network Interface connector
20. Tel connector (T1)
21. Line connector (L1)
22. Rear cover
23. Main power switch
24. Power cord connector
25. Top cover
26. Original width guides
27. Original table
28. Original eject table
29. Opening handle

Kyocera Mita FS-1128MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Monthly Duty Cycle	20, 000 pages
Functions	Print, Copy, Scan, Fax
Fax Transmission Speed	33.6 Kbps
Print Speed	28 ppm
Copy Speed	28 cpm
Standard Paper Capacity	250 sheets
Automatic Document Feeder (ADF)	50 sheets
