Kyocera Mita FS-1128MFP Service Manual

2JN-1
1-5-26

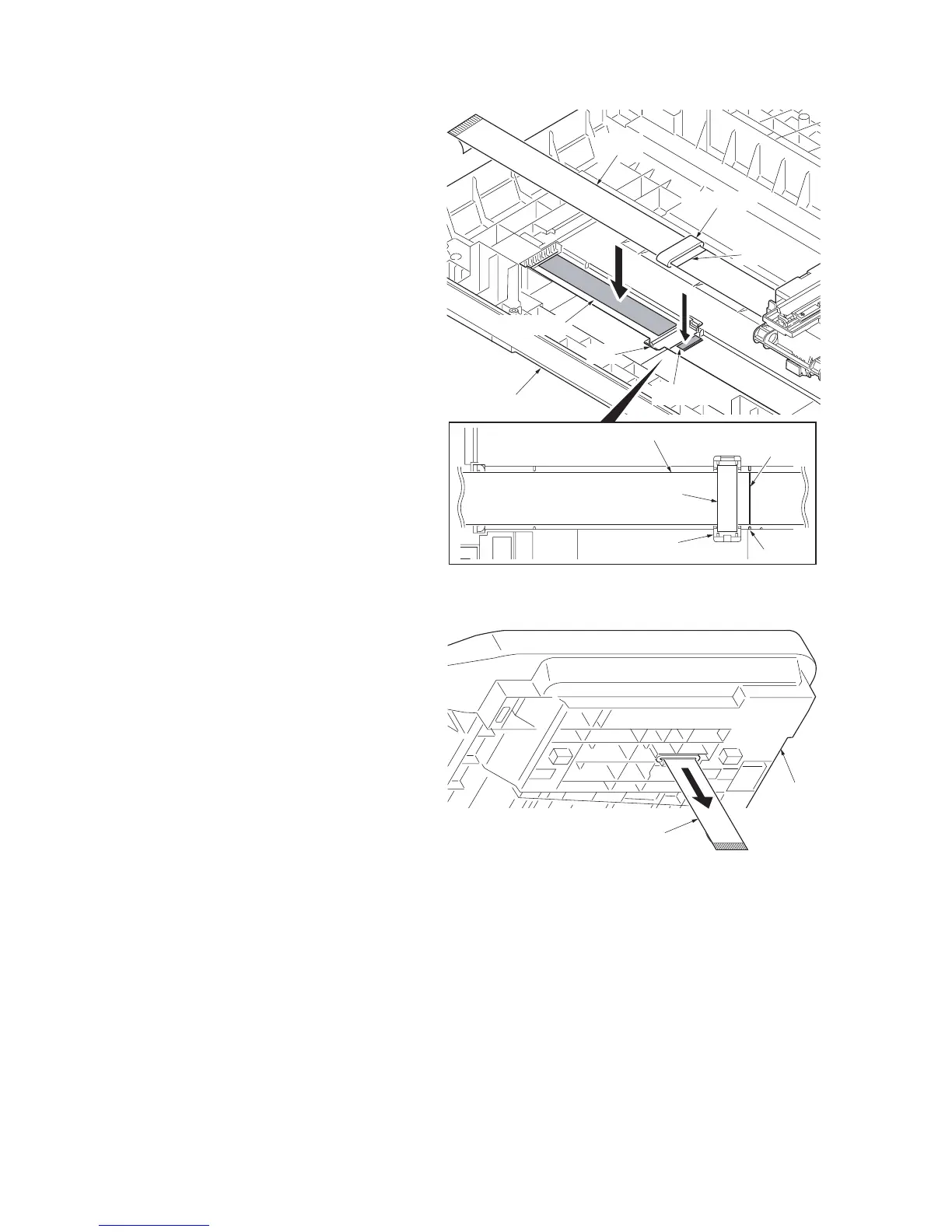

24. Peel off the protective seal from the FFC
tape D.
25. Align the line marking on the FFC with the
rib on the ISU lower frame, then fix the FFC
to the FFC tape D.
26. Install the ferrite core in the pit.
27. Peel off the released paper from the FFC
tape A.
28. Stick the FFC on the FFC tape A.
Figure 1-5-38
29. Thread an end of the FFC through the ISU
lower frame.
30. Refer to the step 11 to 1 and refit all the
removed parts.
NOTE:
When the replacing the image scanner unit
(ISU), perform following maintenance
modes.
1. U425 Setting the target (see page 1-3-46)
2. U411 Adjusting the scanner automatically
(see page 1-3-45)
Figure 1-5-39
Ferrite core
Ferrite core
FFC tape A
Pit
Pit
FFC
FFC tape D
ISU lower frame
FFC
Line
Rib
Line
FFC
ISU lower
frame

Kyocera Mita FS-1128MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Monthly Duty Cycle	20, 000 pages
Functions	Print, Copy, Scan, Fax
Fax Transmission Speed	33.6 Kbps
Print Speed	28 ppm
Copy Speed	28 cpm
Standard Paper Capacity	250 sheets
Automatic Document Feeder (ADF)	50 sheets
