Kyocera Mita FS-1128MFP Service Manual

2JN-1
2-1-8

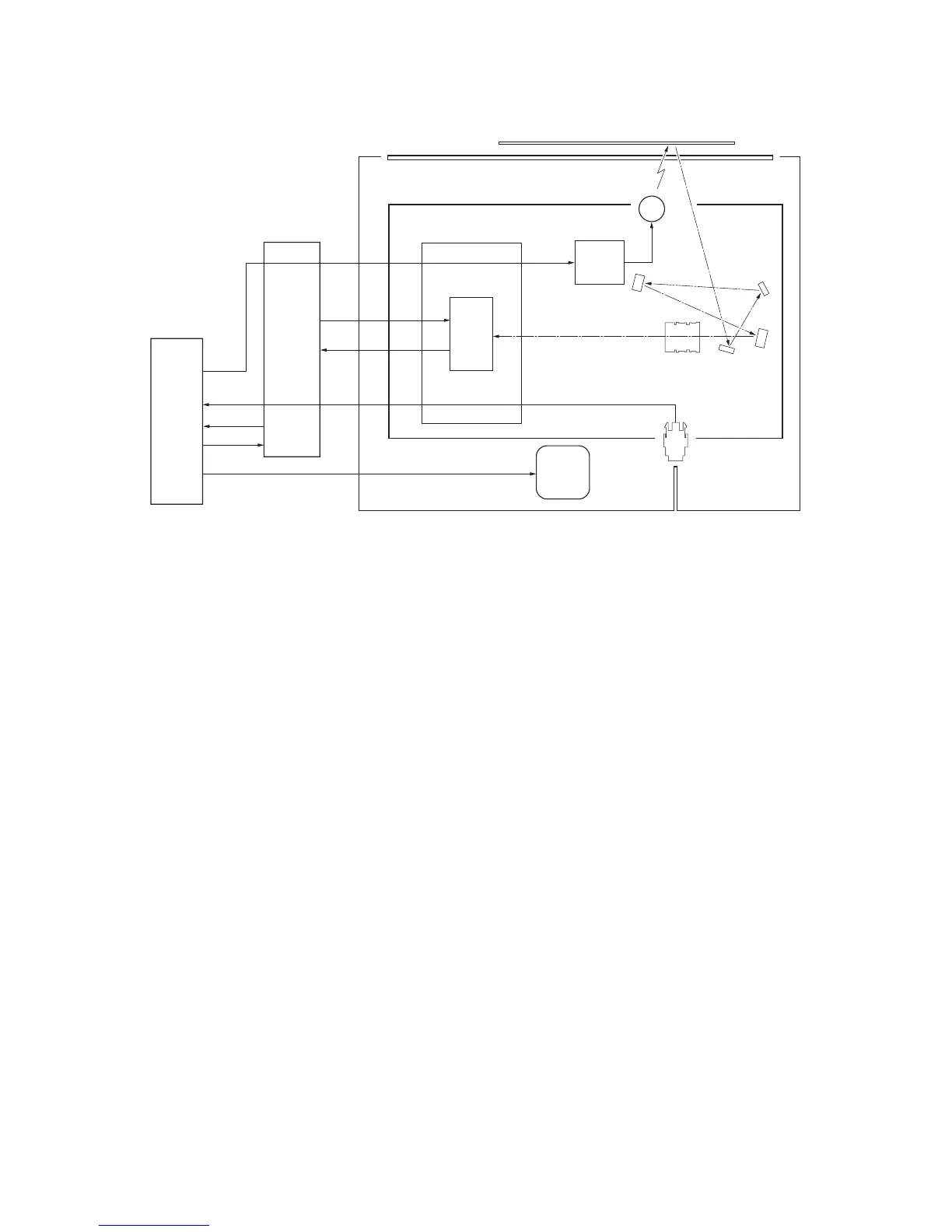

Figure 2-1-12 Scanner unit block diagram
CCD
sensor
Control
PWB
Scanner
PWB
CCD PWB
HPSW
LAMP
SCMOT1A, SCMOT2B
SCMOT1B, SCMOT2A
Exposure
lamp
Inserter
PWB
ISU
motor
Home
position
sensor
Scanner unit
Mirrors
and lens
Image scanner unit (ISU)
Original
Contact glass
YC103-6
YC103-3
YC104-
1,2,3,4

Kyocera Mita FS-1128MFP Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Monthly Duty Cycle	20, 000 pages
Functions	Print, Copy, Scan, Fax
Fax Transmission Speed	33.6 Kbps
Print Speed	28 ppm
Copy Speed	28 cpm
Standard Paper Capacity	250 sheets
Automatic Document Feeder (ADF)	50 sheets
