3 Product Description

3.1 Structure of the F300K

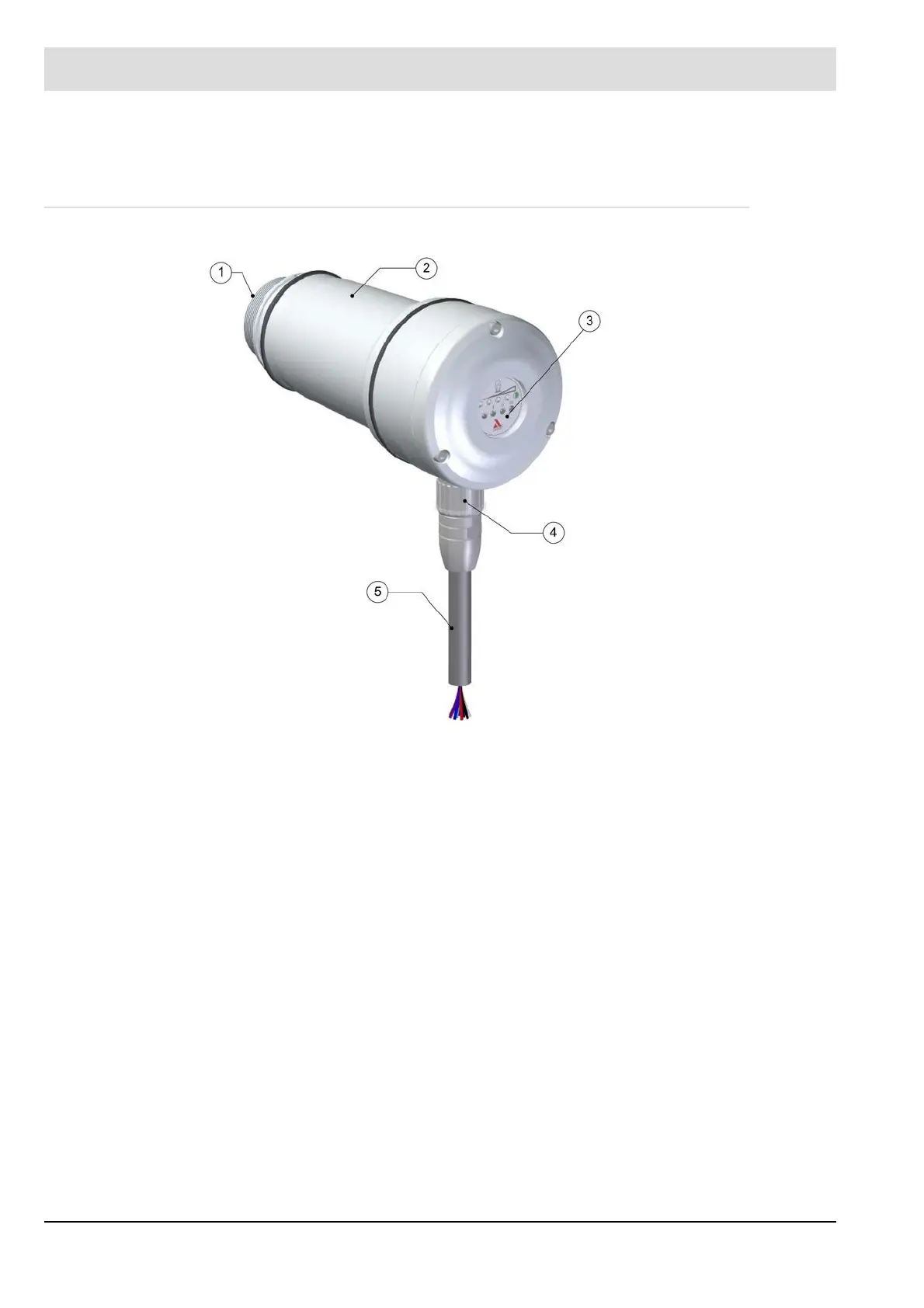

Fig. 3-1 The components of the F300K

1 Lens holder

2 F300K housing

3 Cover with operating unit

UI (user interface) or

LED display

4 Device connector

5 Connecting cable
