7.3.3.2 Signal simulator
NOTICE
Simulation of the signal
How the flame scanner would behave with the current parameters in the various frequency
ranges that can be set is simulated (what would happen if?).
The flame intensity and flame ON/OFF state are displayed for each frequency range:
Approx. 70 % switching threshold: flame ON
Approx. 30 % switching threshold: flame OFF

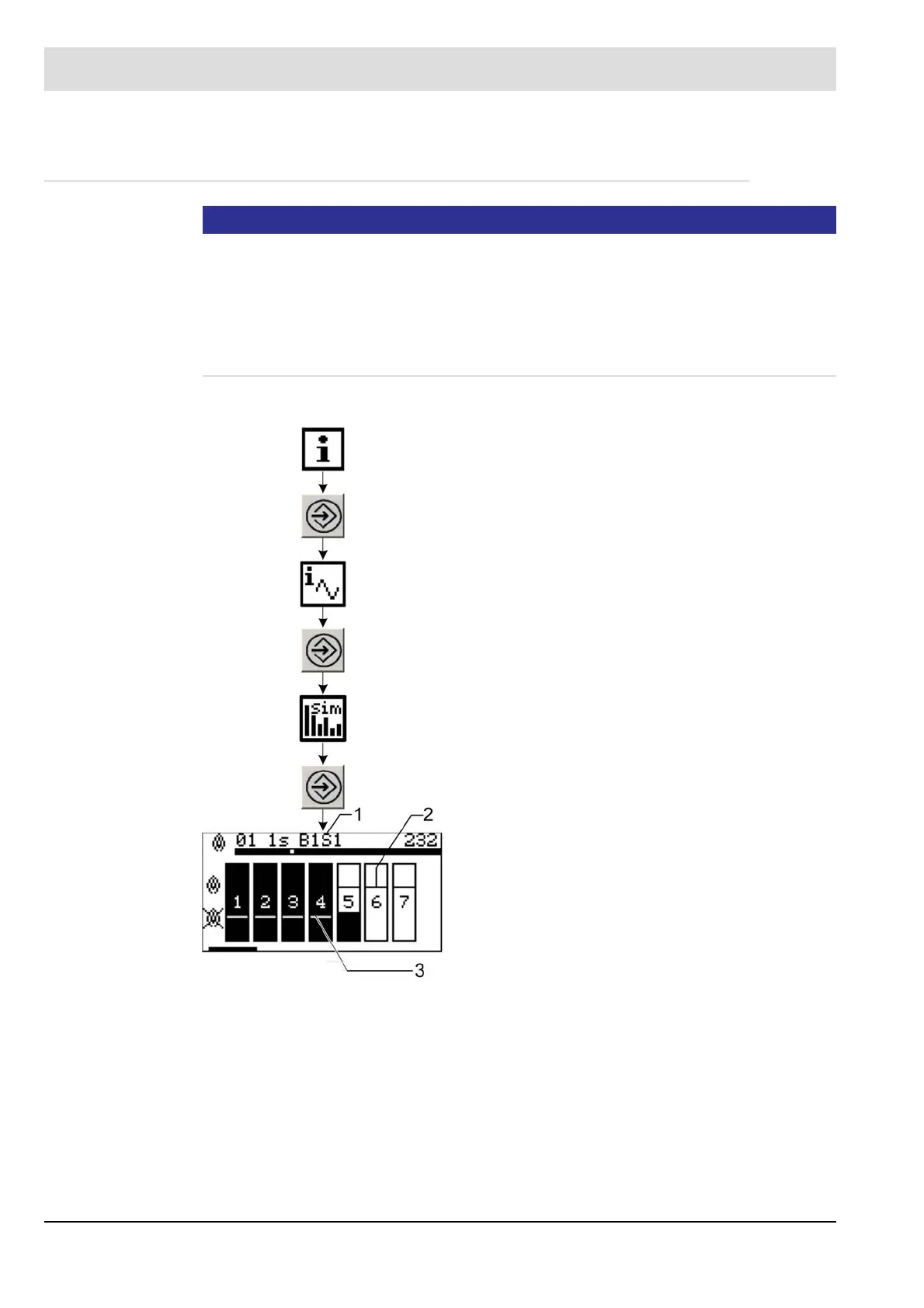

Calling the signal simulator
1 B1-1 or B1S1 or B1T1 indicate which
frequency band is active
2 Switch-on limit in range 1 ... 7
3 Switch-off limit in range 1 ... 7
