14 Appendix
14.1.2 FB30 External User Interface

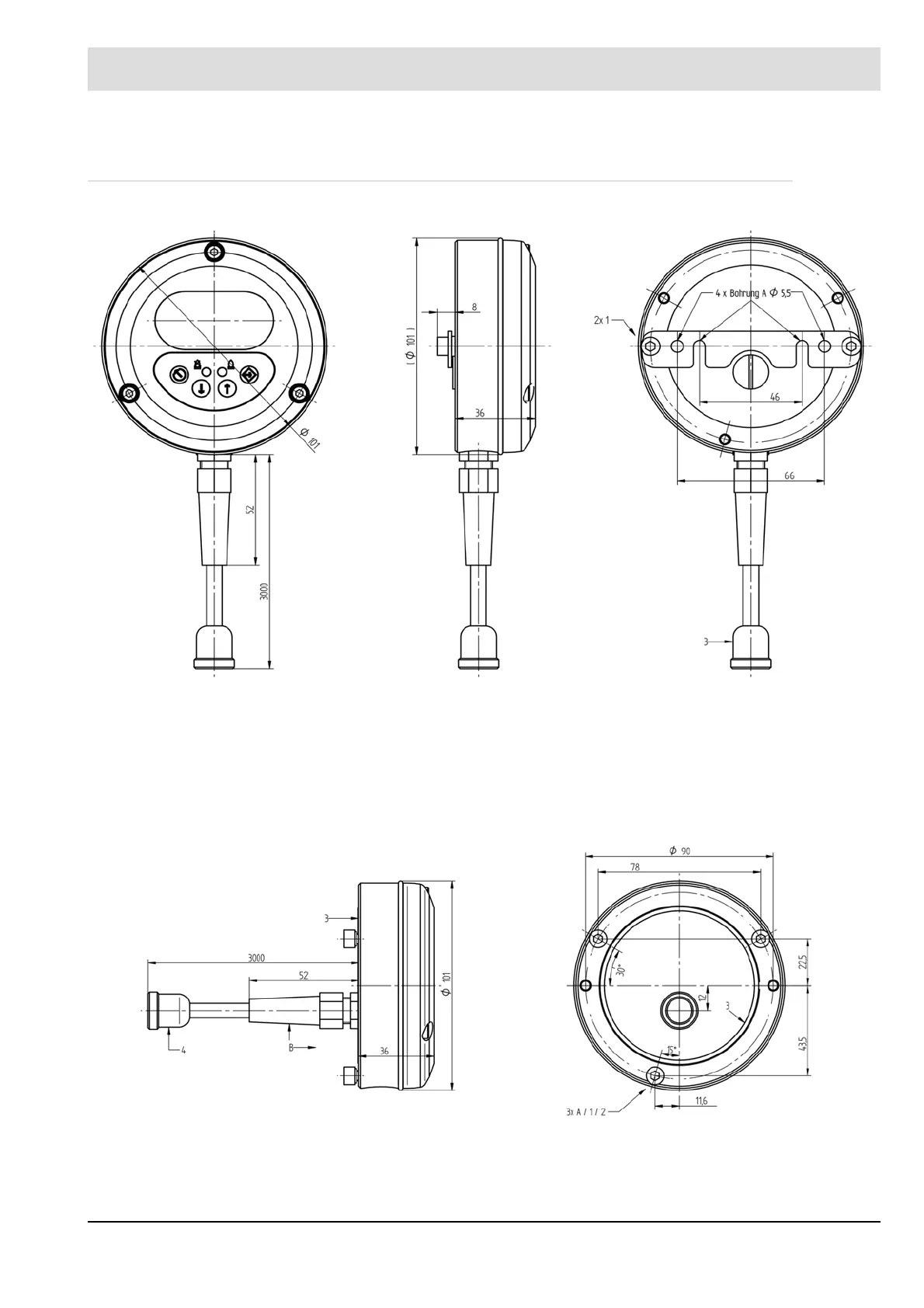

Fig. 14-2 Dimensions of the FB30-00 external operating unit
A Fixing/mounting holes for M5 1 Cylinder-head screw with M5x8
2 Mounting bracket
3 Round 5-pin M5 plug-in connector
Fig. 14-3 FB30-10 views from the side and below-Mounting on the control panel door
