14 Appendix
1
The product must not be transported, stored or operated outside the specified range. If it is, any guarantees with regard to safety-
related functions lose their validity.

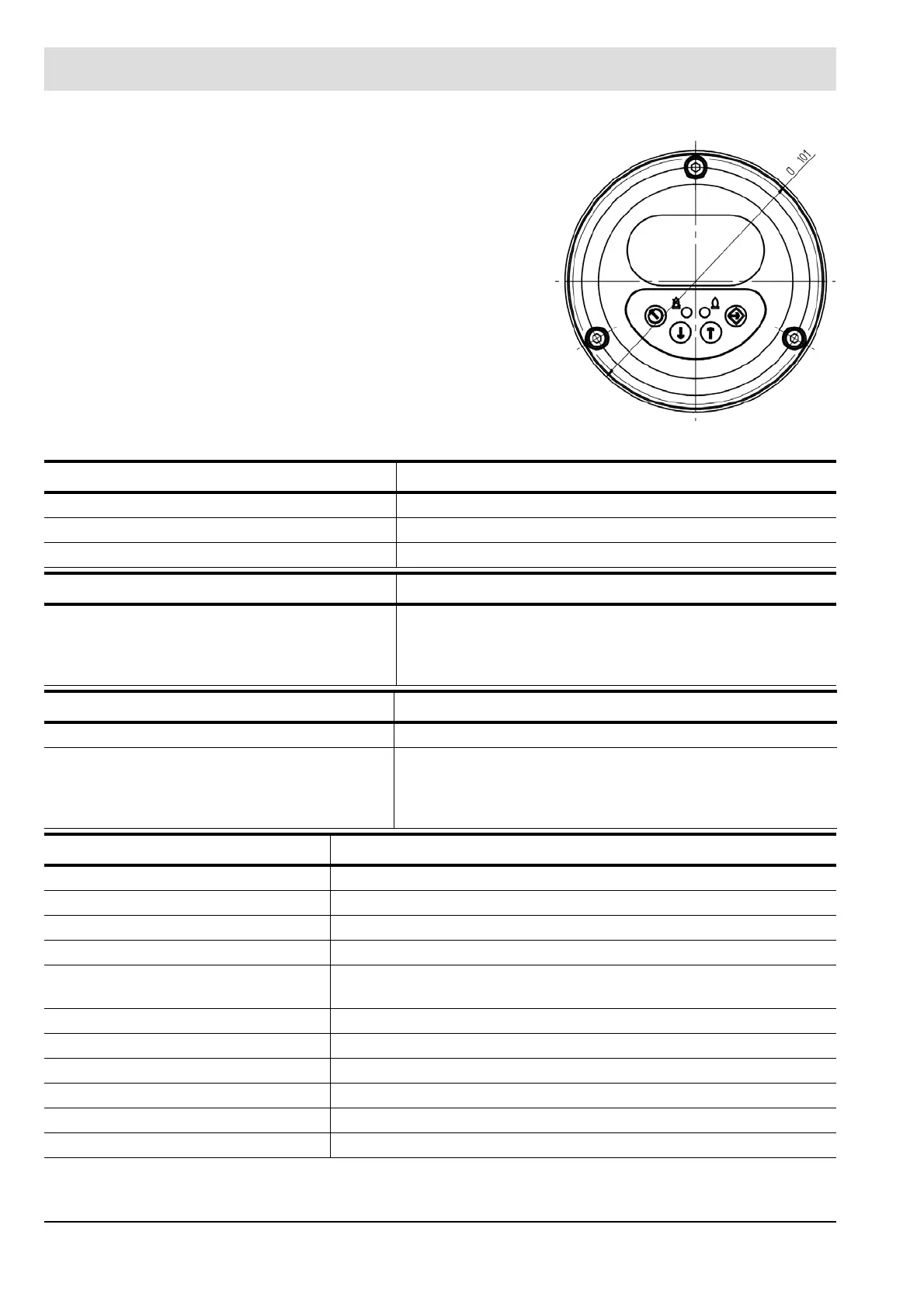

Fig. 14-4 FB30-10 view from above
A Create fixing hole (5.5 mm/0,21" in) for M5 (3-point attachment to
the control cabinet)
B Create a through/hole (18 mm/0,70" in) for the cable conduit
1 Cylinder-head bolt with M5x8 hexagon socket,
drill a suitable hole in the control cabinet
2 5x1 O-ring as bolt seal for control cabinet hole
3 72x2 O-ring (in ring groove) as an additional seal for the control cabi-
net hole
4 Round 5-pin M12 plug-in connector
Input parameters
Supply voltage: 24 VDC ± 20%
Power consumption: < 1 W (< 30 mA)
Fuse protection: Internal fuse
Communication
CAN bus
- Driver
- Speed
- Cable length without repeater
High-speed
500 kbps
80 m /262,46 ft TP (twisted pair) recommended
Connecting/extension cable
Connection type: 2x2-wire TP, shielded (e.g. LiYCY TP 0.34)
Cable length: Core cross-section 0.34 mm
2
/22 AWG
Stub cable 6.0 m/19,68 ft
The cable length depends on the maximum bus length (see
F300K technical data).
Climatic range
Emitted interference: DIN EN 55022, Class B
Protection class:
1
IP67
Protection class: Protection class III
Operating temperature range
Ambient temperature:
1
- 40 … + 80 °C/-40 °F ... 176 °F
(display disappears at temperatures higher than +70 °C/ 158 °F)
Humidity: Relative humidity of 20 ... 90 % RH non-condensing
Storage/transport conditions
Storage location: Enclosed spaces
Air temperature: - 40 … + 85 °C/-40 °F ... 185 °F
Humidity: Relative humidity of 10 ... 95 % RH non-condensing
Weight: 0.30 kg/0,66 lb
