108

14 Appendix

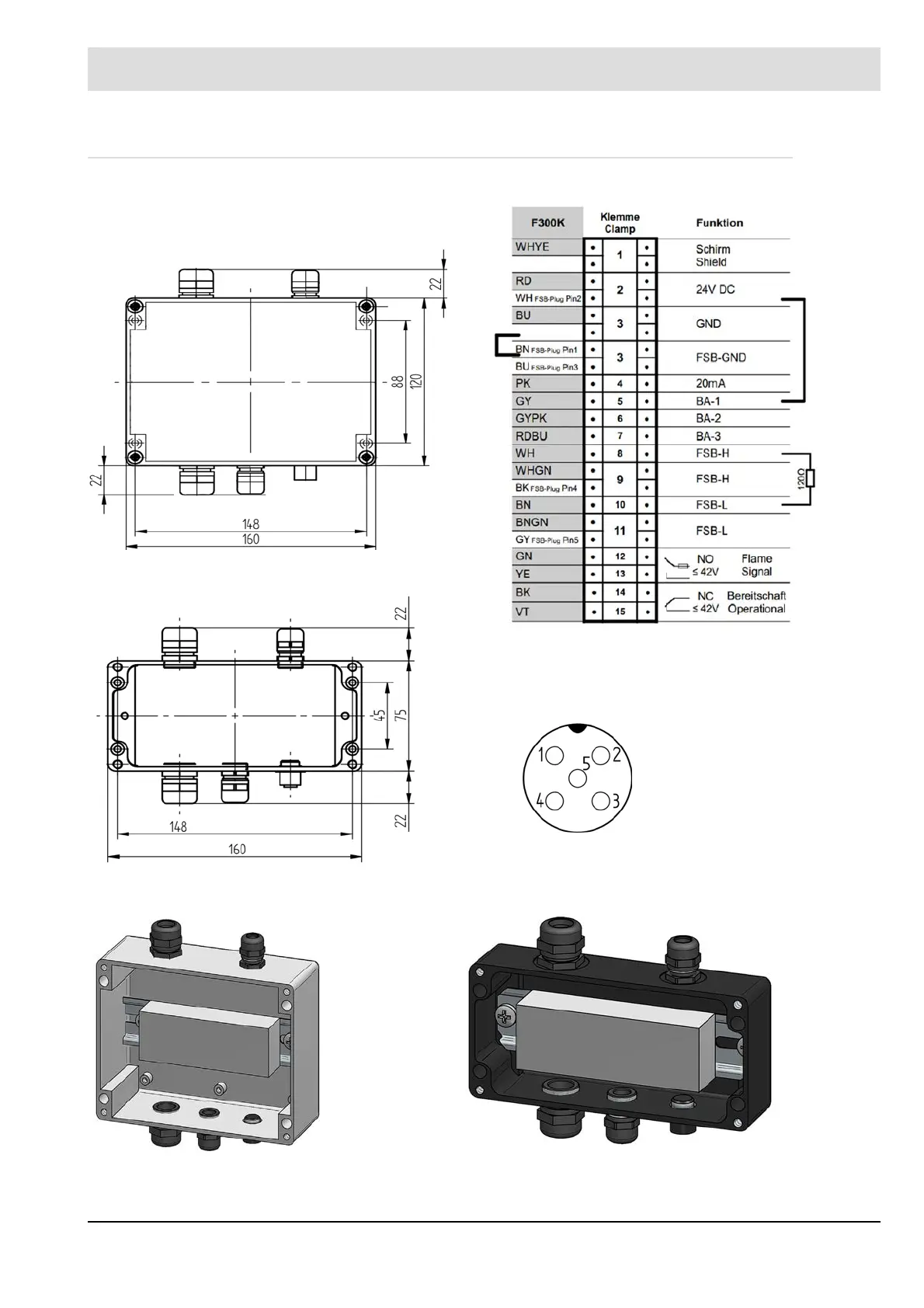

14.1.4 FG30 connection housing and FG30-21 stainless steel

Fig. 14-14 Dimensional drawing FG30-00

Fig. 14-15 Terminal assignment

Fig. 14-16 Dimensional drawing FG30-20

Fig. 14-17 BUS plug

1 shielding

2 +24 V

3 GND

4 FSB-H

5 FSB-L

Fig. 14-18 FG30-00

Fig. 14-19 FG30-20
