7 Operation
7.3.3 Reading the signal of the flame
7.3.3.1 Reading the signal values

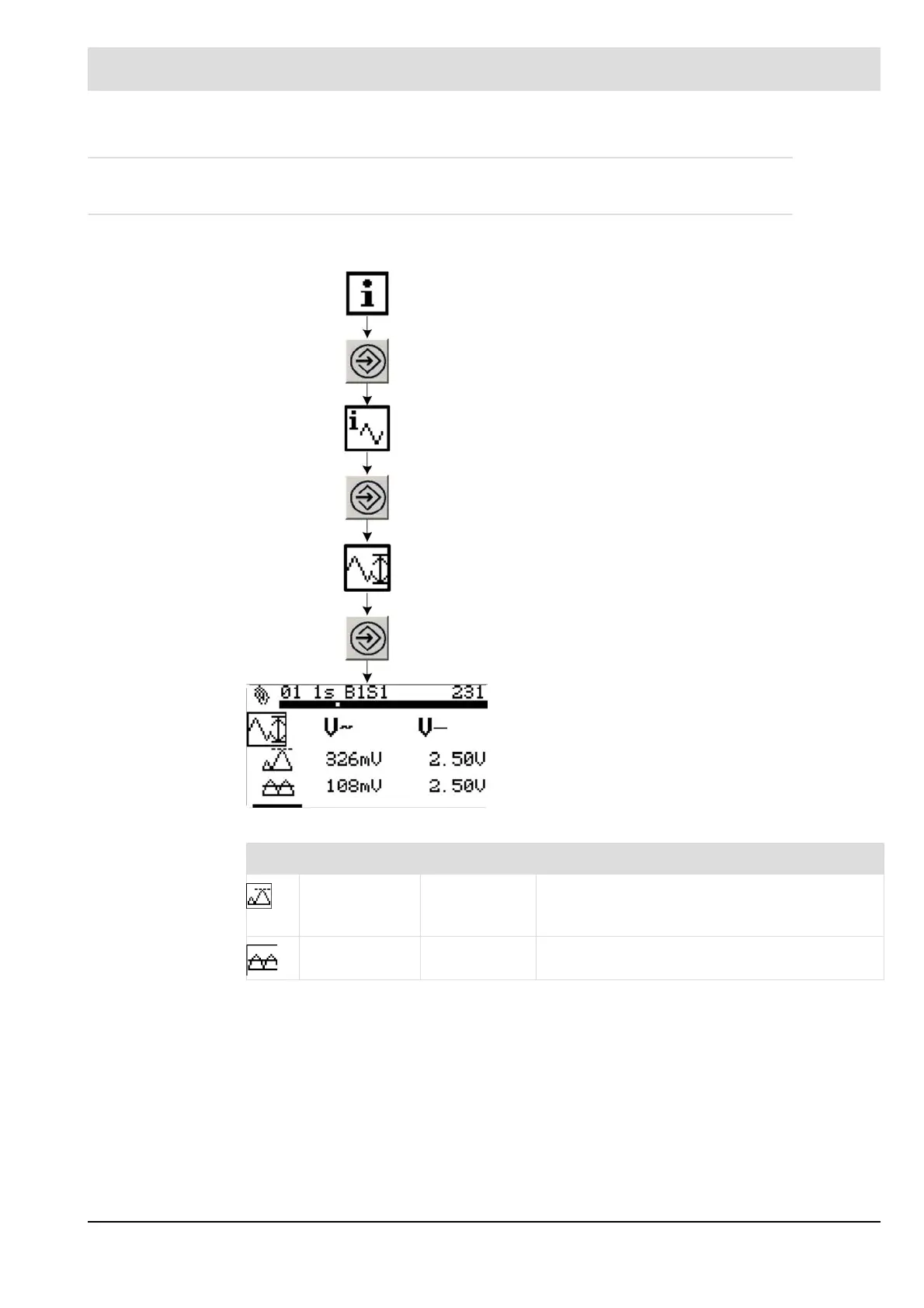

Displaying the signal values
You will find more information on the values in the following table:
Icon Name Value Explanation
Peak value of
the signal
VDC
VAC
Current peak value of the amplified signal and
maximum value of the DC voltage signal that
occurred
Effective value
of the signal
VDC
VAC
Current effective value of the amplified signal
and current value of the DC voltage signal
