14 Appendix

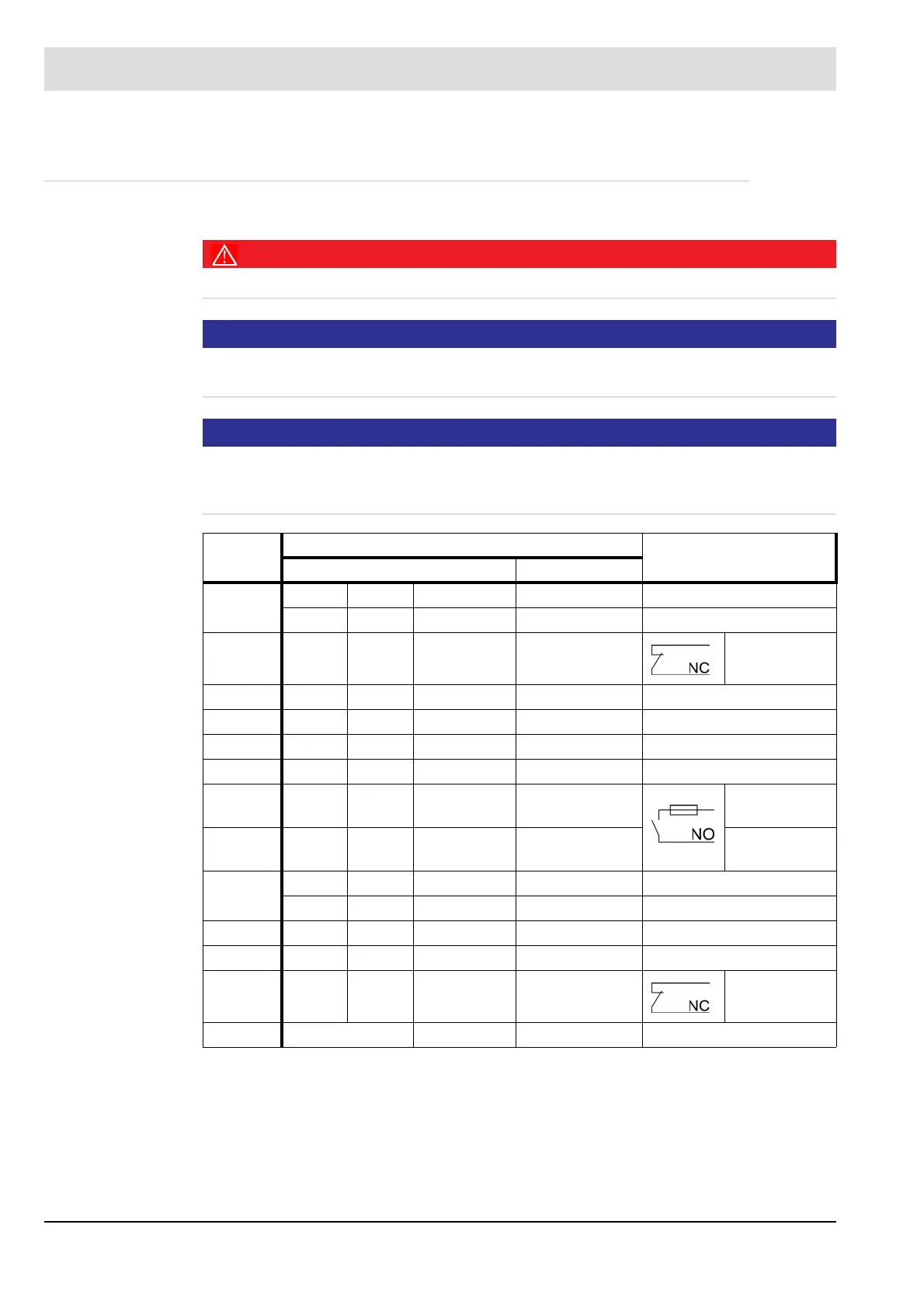

14.1.7 Connection Cable AK05
The connection cable is intended for use with the F300K.
DANGER!
The Connection Cable are approved for use with SELV or PELV only.
NOTICE
For special requirements it may be necessary to protect cable additionally.
The specific installation rules are to be observed.
NOTICE
Only the Connection Cable AK05-51 is UL Listed approofed. For the use of the Flame scan-
ner as UL Recognized approofed, the other Connection Cable types can be used.
Devices shall be wired in accordance with NEC field wiring requirements for the location.
Plug
PIN
Cable - Core - Code Function F300K
Farben Zahlen
1
WH ws weiß 11 ELEVEN Bus FSB-H
WHGN wsgn weiß-grün 14 FOURTEEN Bus FSB-H
2
BK
sw
schwarz
10 TEN
Stand-by
3 RD rt rot 8 EIGHT + 24 VDC
4 BU bl blau 7 SEVEN GND
5 PK rs rosa 6 SIX + 20 mA
6 GY gr grau 5 FIVE Mode of operation BA-1
7
YE
ge
gelb
4 FOUR
Flame signal
8
GN
gn
grün
3 THREE
Flame signal
9
BN br braun 12 TWELVE Bus FSB-L
BNGN brgn braun-grün 13 THIRTEEN Bus FSB-L
10 RDBU rtbl rot-blau 9 NINE Mode of operation BA-3
11 GYPK grrs grau-rosa 1 ONE Mode of operationBA-2
12
VT
vi
violett
2 TWO
Stand-by
Housing Shield braid weiß-gelb gelb + schwarz Shield
