3 Product Description
3.7.9 Fiber Optic
The LAMTEC Fiber Optic System is available with 2 spectral sensitivities and 2 basic
mechanical constructions.The spectral sensitivity is matched to the LAMTEC flame detector.
WARNING!
F300K IR-x FO
The flame detector F300K FO in the IR version (IR-2..4) may only be used with the
LAMTEC Fiber Optic in the IR version. The Fiber Optic IR version includes the required
spectral sensitivity limitation.
Visible is the Fiber Optic IR version on the process optics (see Fig. below).
The viewing port to the flame is not a lens, but covered with a black filter.

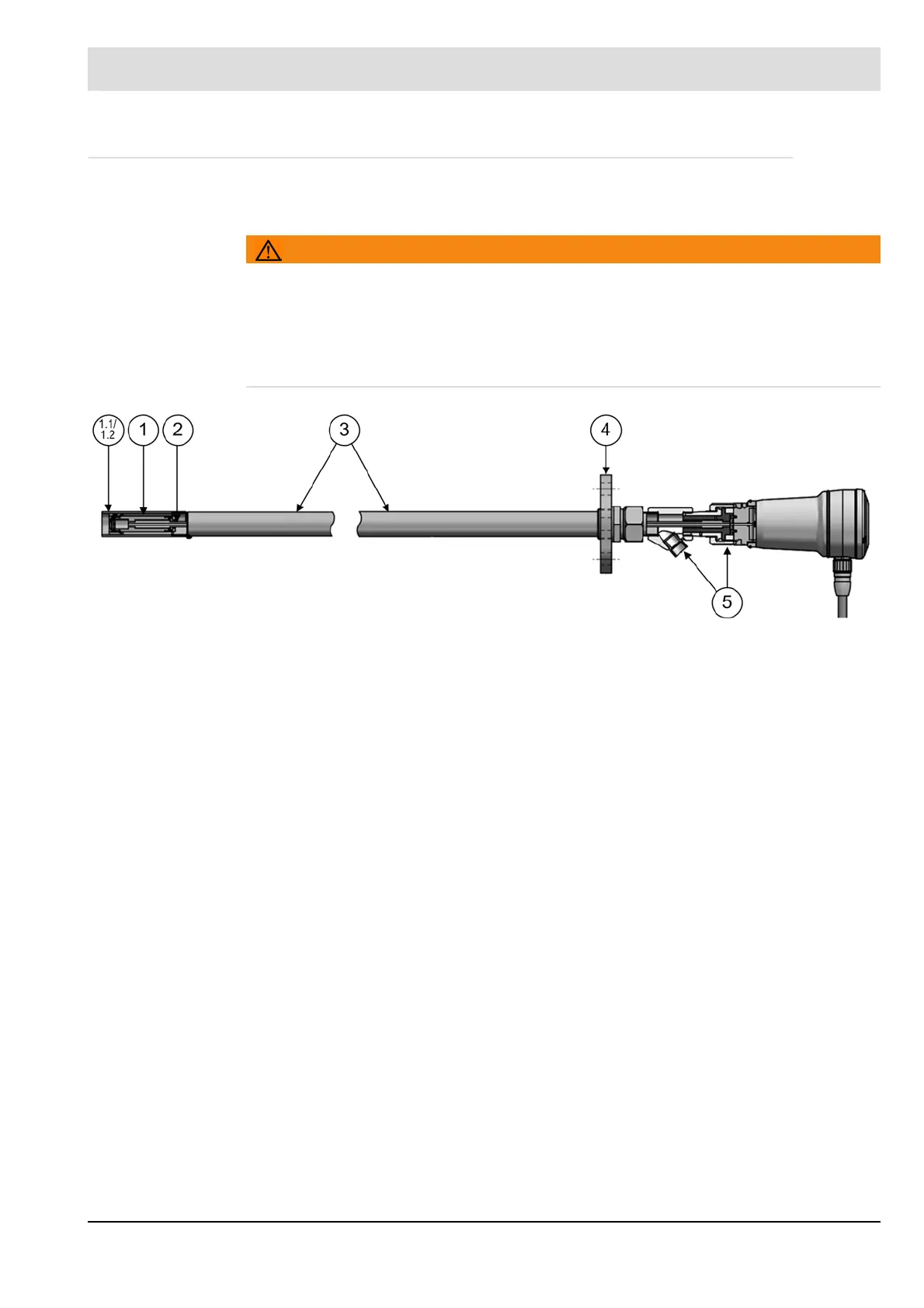

Fig. 3-17 Fiber optic with Flame scanner
Fiber Optic with enclosure - Type key: FOabb-cc-dd
a - enclosure type: R - starr, F - flexibel
b - enclosure series: e.g. 10
c - lenght: e.g. 25 - (2,5 m)
d - optic: UV - uv/vis/nir, IR - nir
1 Component Group Process Optics 3 Component Group rigid housing
1.1 Optic UV 4 Component Group burner mounting assembly
1.2 Optic IR 5 Component Group Flamescanner holder
assembly FV30-FO
2 Fiber bundle (customer-specific length)
