11 Network
11 Network
NOTICE
The networking of multiple devices is provided for F300K from software version 1.3.0.0 and
user interface from software version 1.7.0.0.

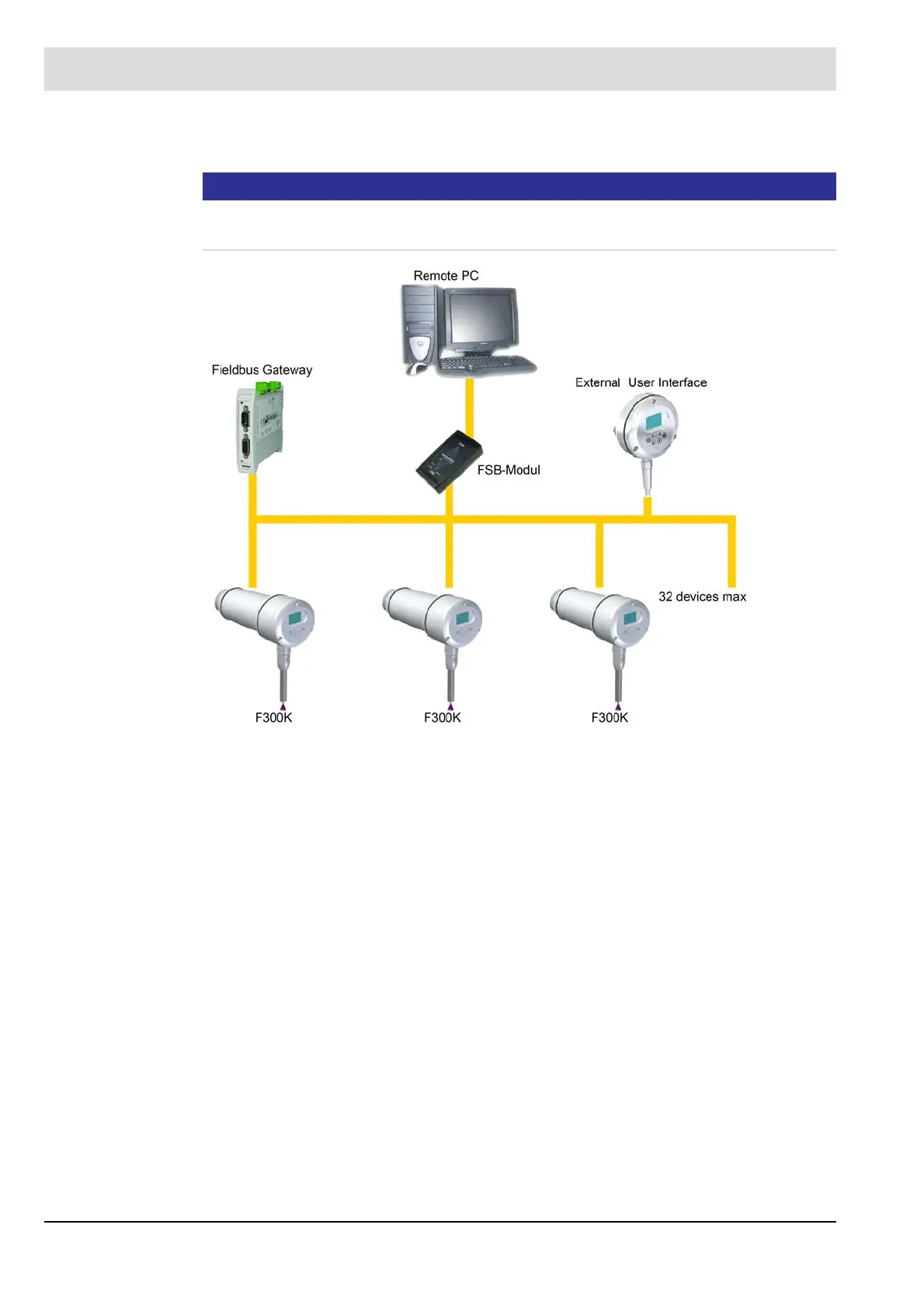

Fig. 11-1 F300K network
The data bus in the connecting cable of the F300K allows you to link different devices:
• Multiple F300Ks
• One FB30 external user interface
• One USB/FSB adapter for F300K Remote Software
• One FSB gateway for communication with other BUS systems
• Two FSB modules for collecting external analogue and digital signals
Use the FG30 connection housing as a network node, for example.
Connecting multiple F300Ks
Multiple F300Ks can:
• Make data available for recording and analysis.
• be parameterised from an external terminal.
FB30 external user interface
You can use the external interface to:
• Parameterise the F300K.
• Save and rewrite a data set.
• Display information and use the "what would happen if?" function.
