14 Appendix

14.1.5 M12 - Mounting box for front / screw mounting with M16 thread

M12 - Mounting box for front / screw mounting with M16 thread

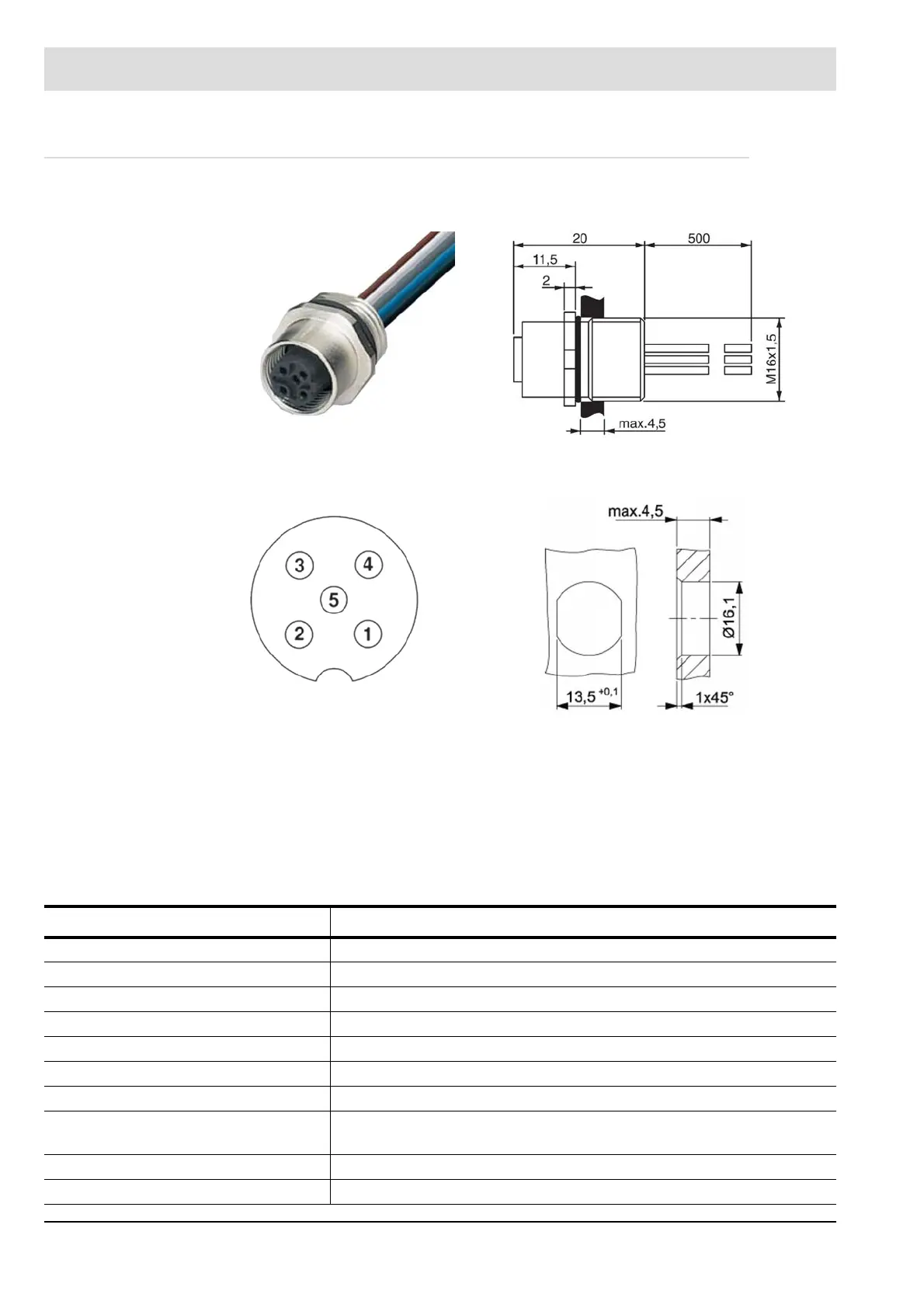

Fig. 14-21 Socket for FSB connection

Fig. 14-22 Dimensional drawing socket for FSB con-

nection

Fig. 14-23 Connector pin assignment

Fig. 14-24 Mounting diagram Socket for FSB con-

nection

Pin 1 (BN)- Shield

Pin 2 (WH)- +24 V

Pin 3 (BU)- GND

Pin 4 (SW)- FSB-H

Pin 5 (GY)- FSB-L

Technical Data

Rated voltage:

24 VAC/DC

Rated voltage range : max. 60 V

Rated current: 4 A

Contacts: 5

Cable length: 0,5 m/1,64 ft

Coding: A

Construction type: M12 × 1, socket

Rated insulation voltage

(EN 50178):

60 V

Test voltage: 1,5 kV

Degree of pollution: 3
