14 Appendix

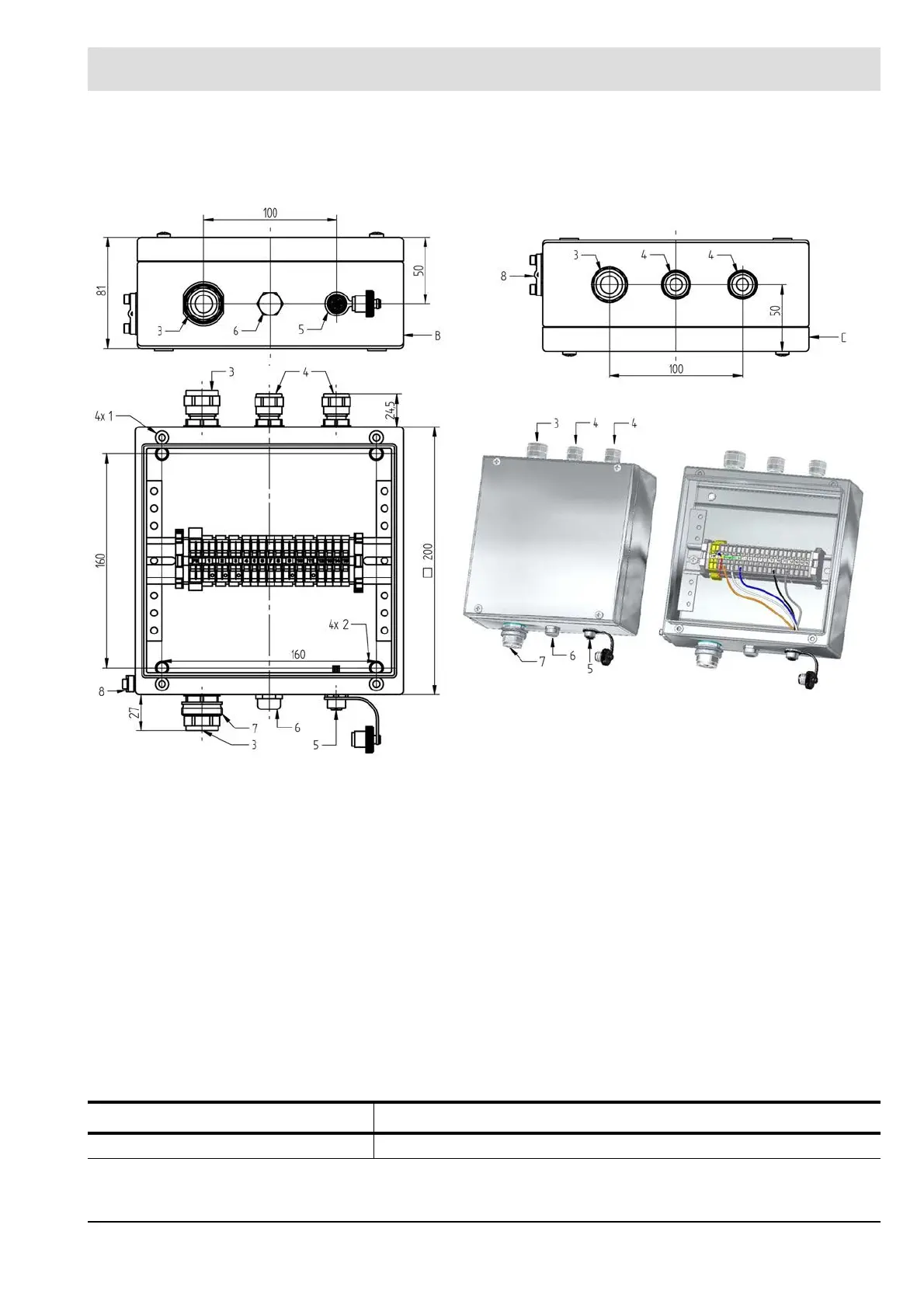

FG30-21 connection housing stainless steel
Fig. 14-20 FG30-21
1
The product must not be operated outside the specified range. If it is, any guarantees with regard to safety-related functions lose
their validity.
A Bottom Side
Note during installation!
1 Cover attachment 4 x cross recessed raised rounded
head screw M5
B Housing bottom 2 fixing holes grid dimension 160 x 160 / use screws M8,
Screw length minimum of 16 mm, End length depends on
assembly
C Housing cover
(internal ground connection)
3 Screwed cable gland M20 x 1,5 / 10...14
4 Screwed cable gland M16 x 1,5 / 5...10
5 5-pin round connector M12
6 Pressure compensation element
7 Bracket for stainless steel protection hose from connec-
tion cable AK05-21
8 external ground connection
Housing
Protection class:
1
IP66
