6 Commissioning

6.4.4 Setting Monitoring Parameters

6.4.4.1 Automatic setting

This section describes the learning processes for setting the monitoring parameters.

WARNING!

Checking the switch-off parameters

There is a risk of death and serious injury.

 The preset switch-off parameters are to be verified through switch-off tests see

Section 6.4.5 Switch-off Test

Recording the signal with the flame ON

 You must have aligned the device and set the amplification to optimum effect beforehand.

 Select the firing-rate state with the lowest signal amplitude. This is normally the base fir-

ing-rate.

NOTICE

 You can open the menus Record flame ON, Record flame OFF and Analyse individually

or process them as a series.

 You can also have the monitoring parameters set automatically and/or set them manually.

 You can switch to the next menu in the sequence or select the next step "freehand".

1. Open the Automatic flame ON/OFF parameter setting > Record flame ON

menu.

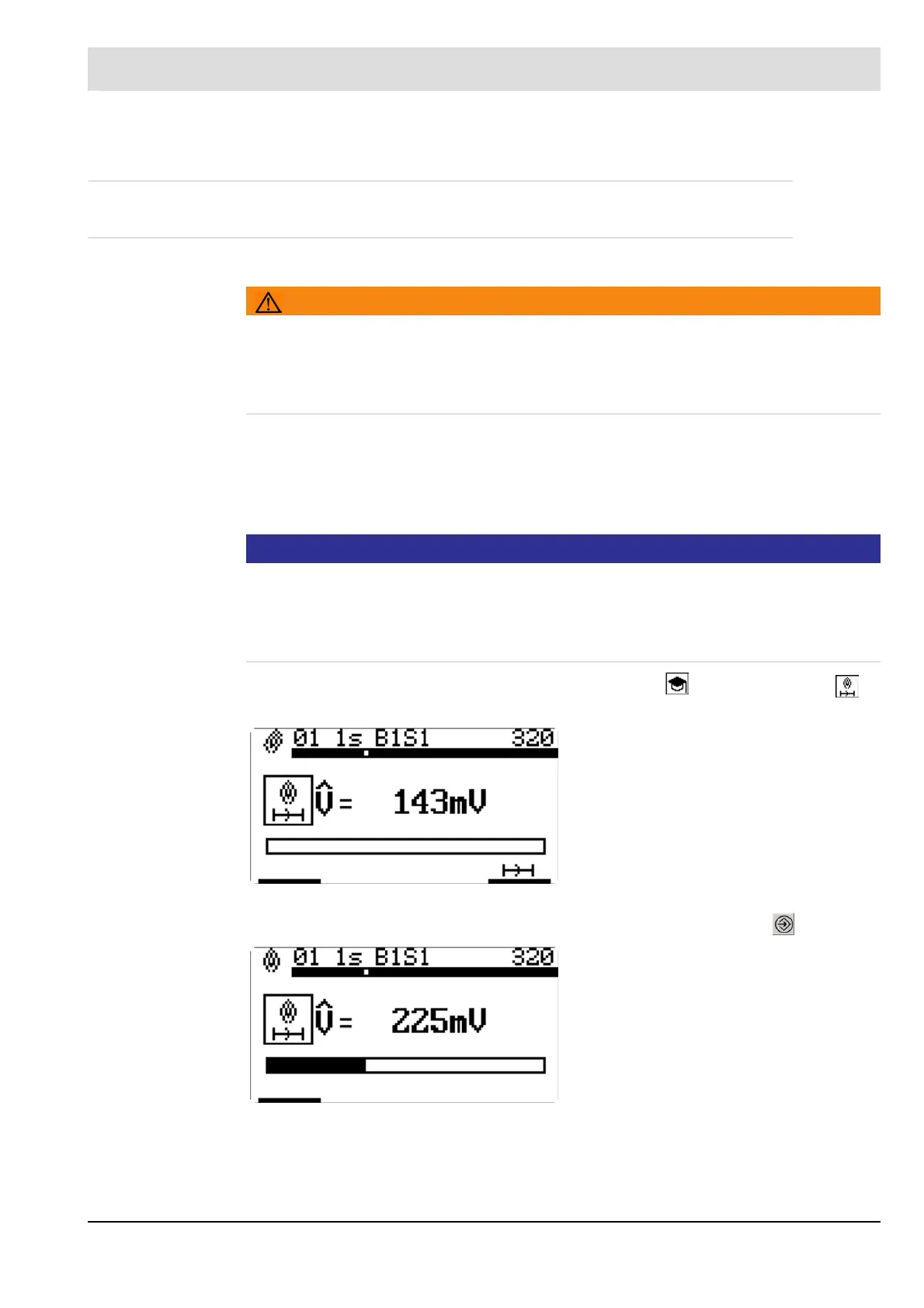

Fig. 6-10 "Record flame ON" display

2. Start the automatic recording of the "Flame ON" parameters by pressing .

Fig. 6-11 The "flame ON" flame data is recorded
