5 User Interface
5 User Interface
5.1 Operating and display elements
You can adjust and operate the F300K compact flame scanner by using either the user inter-
face (integrated in the F300K or as an external device) or the F300K Remote Software.
You will find a description of the F300K Remote Software in a separate manual (publication
no. DLT7652).
NOTICE
To extend the service life of the display, it only remains switched on within a limited tempera-
ture range. If the temperature of the display rises to over 70 °C, it is deactivated. In this phase
it is not possible to carry out parameterisation or read out information using the display. In or-
der to get information about the reason (C0013) of the deactivated display, it is activated brief-
ly after pressing a key.. If the temperature of the display drops below 70 °C, it is activated
again. Alternatively, the F300K Remote Software or an external user interface FB30 can be
used to communicate with the F300K from a cooler place.
NOTICE
The accessibility and operation of the different displays depend on the current access level.
See section 7.2 Enter Password.

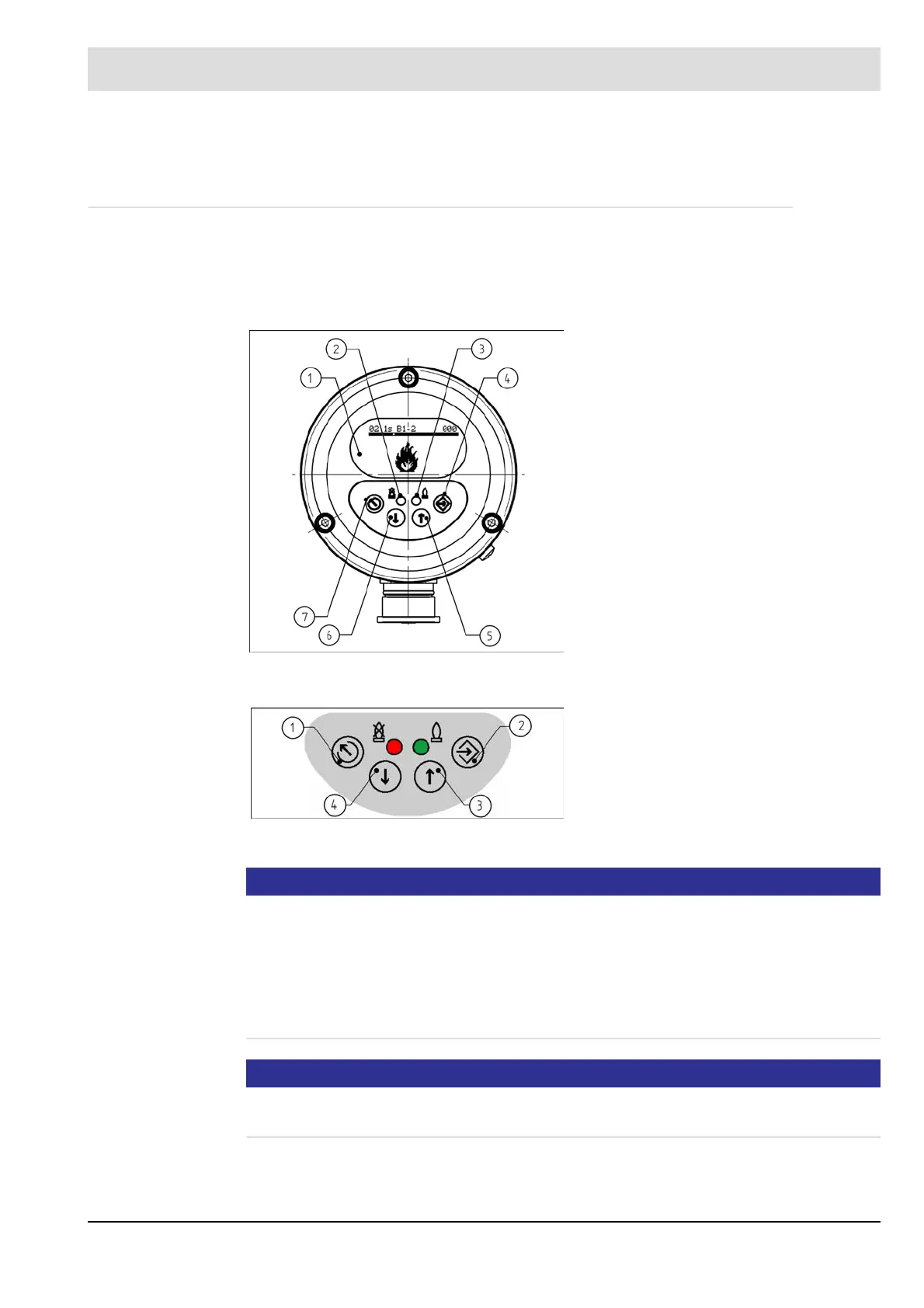

Fig. 5-1 F300K operating and display unit with UI
1 Display
2 LED shines red: Flame OFF/ready for
operation
LED flashes red: fault
3 LED shines green: flame ON
LED flashes green: warning
4 ENTER key
5 UP key
6 DOWN key
7 ESC/BACK key
Fig. 5-2 Keypad
1 ESC/BACK key
2 ENTER key
3 UP key
4 DOWN key
