103
14 Appendix
Further connection diagrams see chapter 14.2 Connection Diagram
Fig. 14-8 Connector pin assignment
* - Wire from pin 4, 5 twisted together

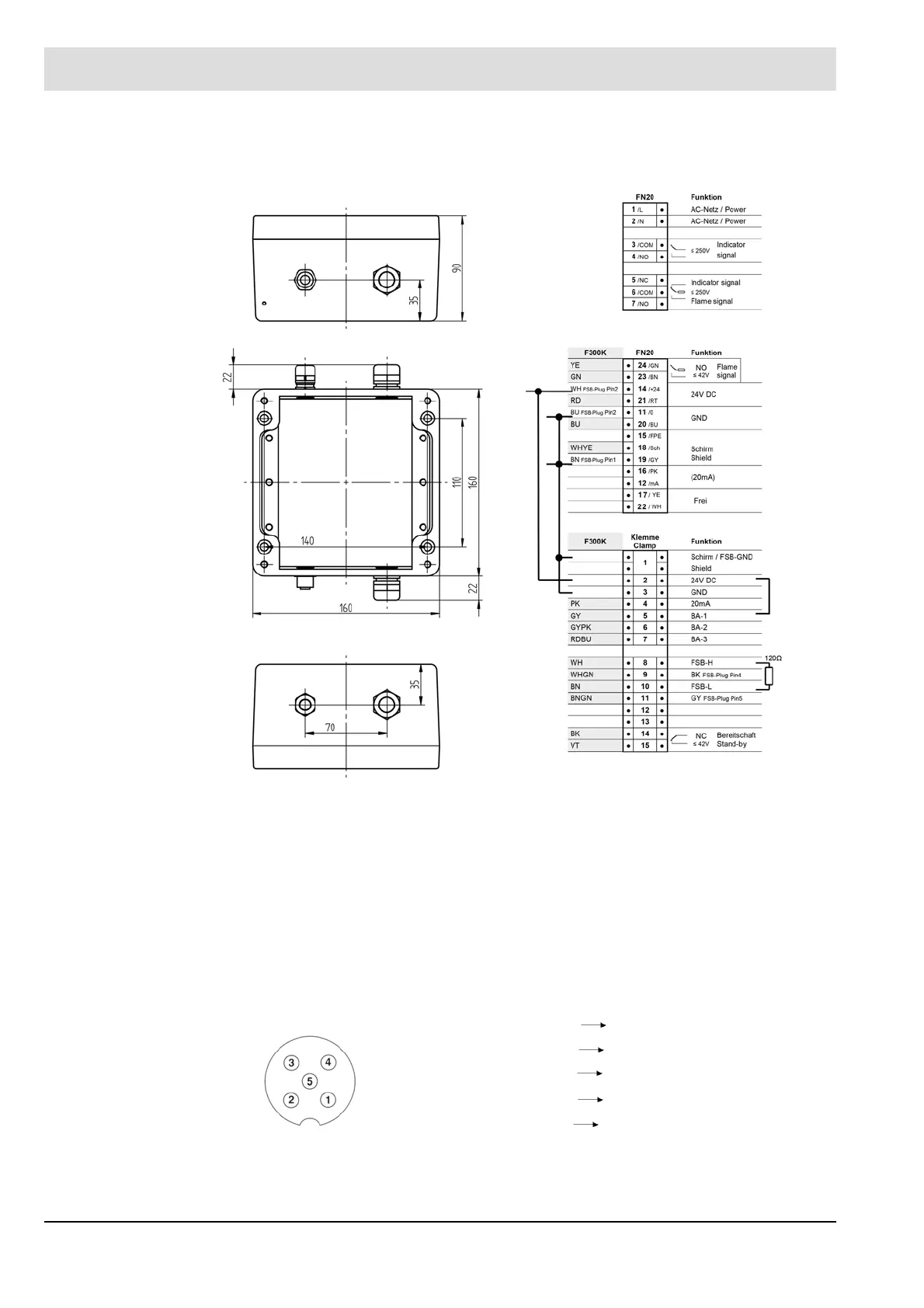

Terminal Assignment Power Pack FN20 and FN30-20 in Housing
Fig. 14-6 Dimensions FN30-20 Fig. 14-7 Terminal assignment
BK black BU blue WHYE white/yellow
BN brown VT violet GYPK gray/pink
RD red GY gray RDBU red/blue
OG orange WH white WHGN white/green
YE yellow PK pink BNGN brown/green
GN green TQ turquoise GNYE green/yellow
Pin 1 (BN) - Schirm Terminal 1
Pin 2 (WH) - +24V Power pack +V
Pin 3 (BU) - GND Power pack -V
Pin 4 (SW) - FSB-H Terminal 9 *
Pin 5 (GY) - FSB-L Terminal 11 *
