14 Appendix

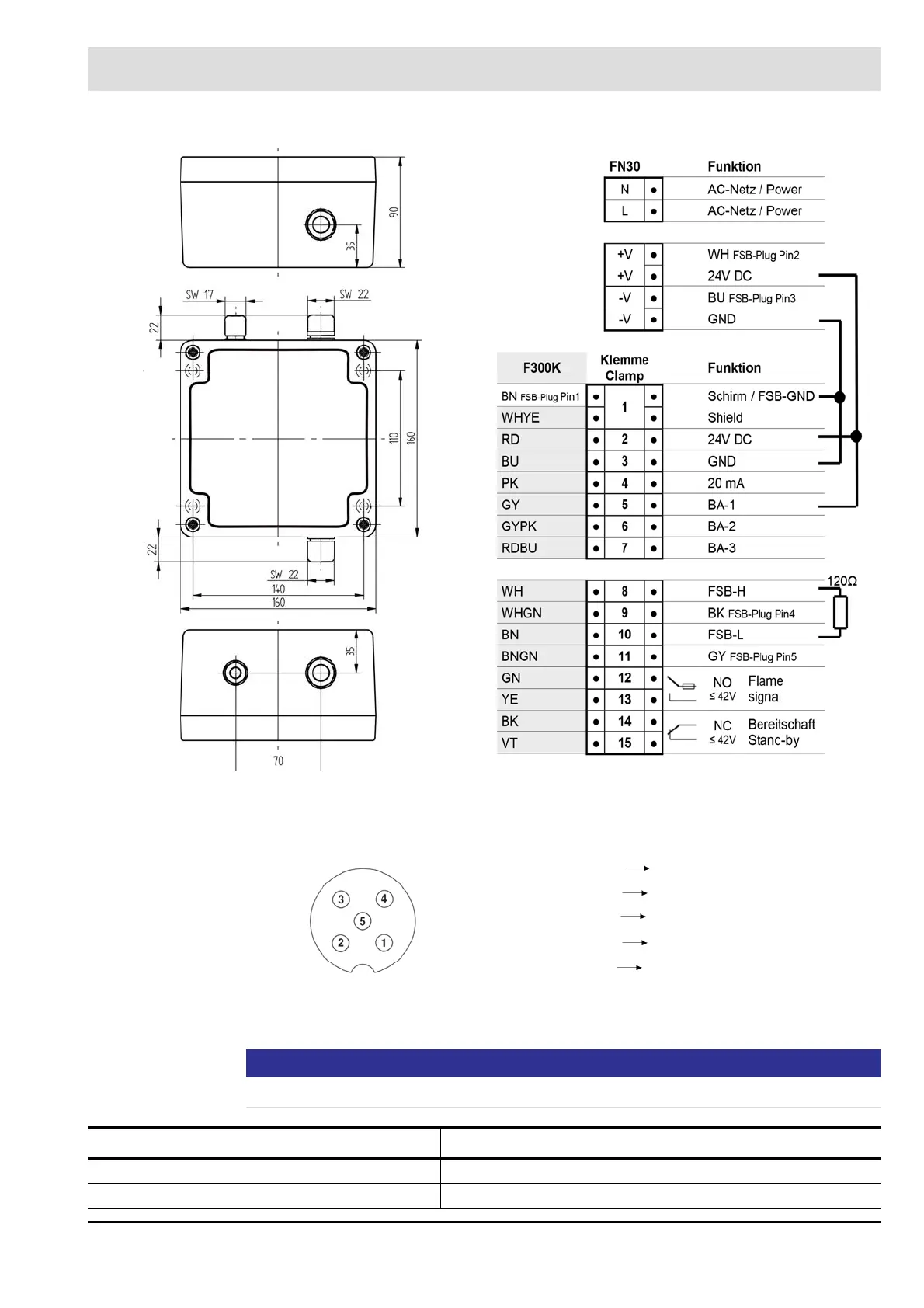

Fig. 14-13 Connector pin assignment
* - Wire from pin 4, 5 twisted together
NOTICE
The FN30-00 is the MEAN WELL Model DR-30-24.
Fig. 14-11 Dimension drawing FN30
Fig. 14-12 Terminal assignment
Pin 1 (BN) - Schirm Terminal 1
Pin 2 (WH) - +24V Power pack +V
Pin 3 (BU) - GND Power pack -V
Pin 4 (SW) - FSB-H Terminal 9 *
Pin 5 (GY) - FSB-L Terminal 11 *
Input parameters
Supply voltage: 100-240 VAC +10%, -15%
Power consumption: ≤ 32 W, starting current type. 30 A/230 VAC, 15A/115 VAC
