51
7 Operation

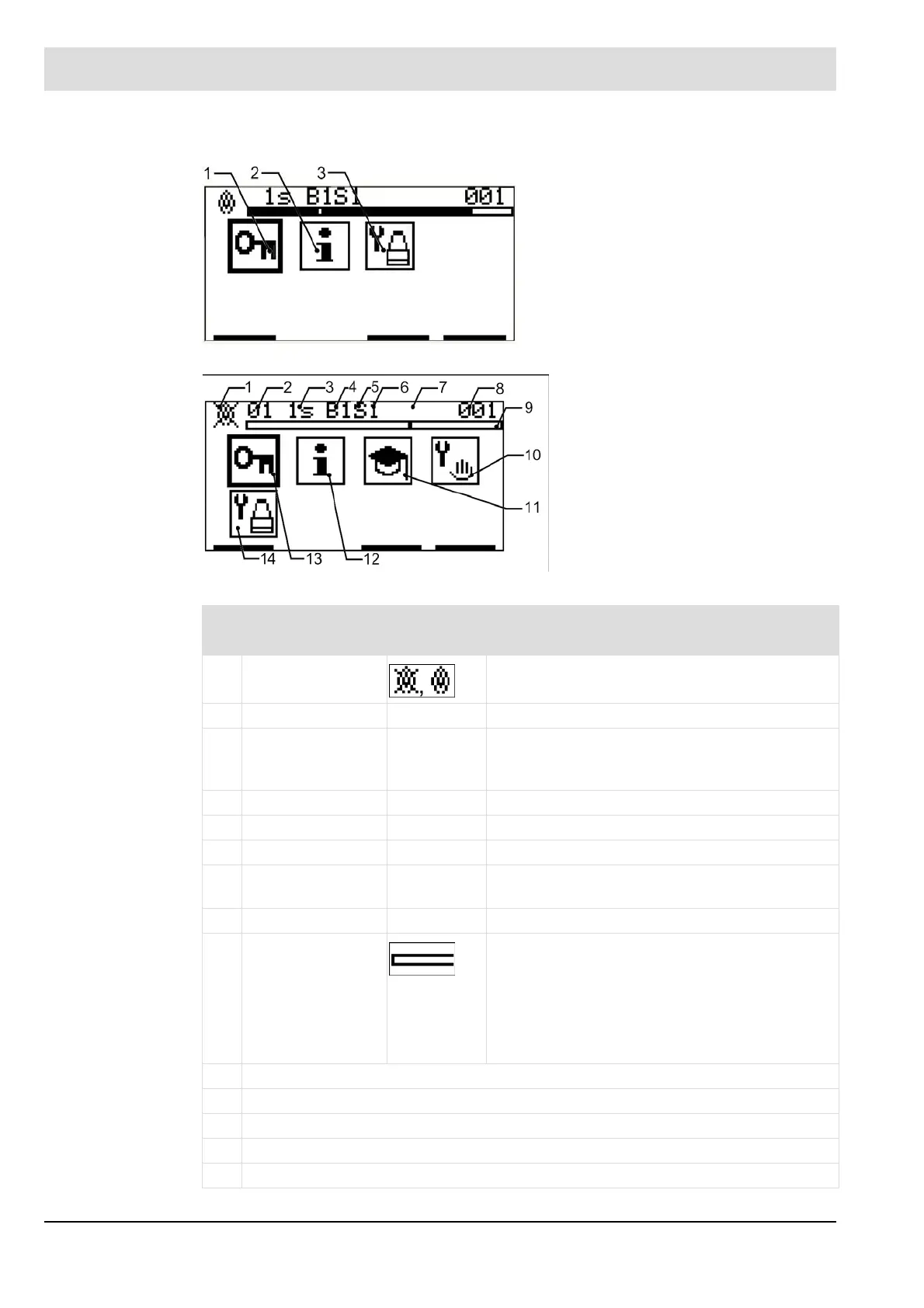

Main menu
Fig. 7-6 Main menu with access via password (access level 1)
Fig. 7-5 Main menu without access via password (access level 0)
1 Password entry
2 Information menu
3 Device setting
No
.
Name Value Explanation
1 Flame detection Current state: flame OFF or ON
2 BUS ID 01 ... 32 F300K subscriber number on the bus
3 Safety time 1 ... 5 sec-
onds
FFDT, maximum time before the flame relays are
switched off after the non-appearance of the
flame OFF signal in the current operating mode.
4 Operating mode 1, 2, 3 Active mode
5 Frequency band S, T Active frequency band
6 Frequency range 1 ... 7 Active frequency range
7 Fault/cause of
problem
Hxxx, Uxxx Fault that led to the problem (cause of switch-off)
8 Image number 000 ... 999 Current image number
9 Bar display Flame intensity – evaluated signal with indication
of the current switching threshold for flame ON/
OFF
• Approx. 70 % switching threshold: flame ON
• Approx. 30 % switching threshold: flame
OFF
10 Set monitoring parameters
11 Set and align parameters automatically
12 Information menu
13 Password entry
14 Device settings
