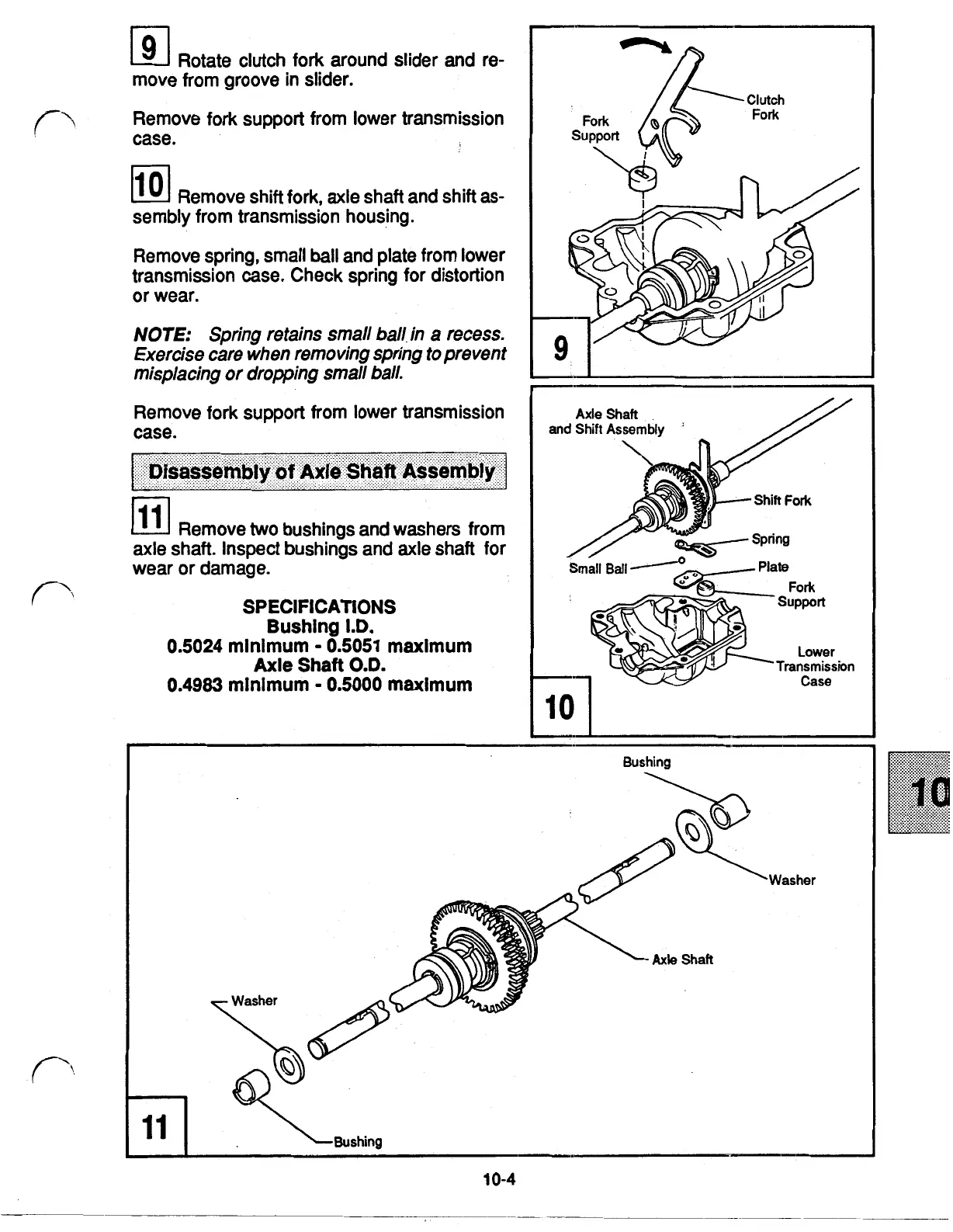

9
Rotate clutch fork around slider
and
re-
move from groove in slider.
Remove fork support from lower transmission
case.
10
Remove shift fork, axle shaft and shift as-
sembly from transmission housing.
Remove spring, small
ball
and plate from lower
transmission case. Check spring for distortion
or
wear.
NOTE:
Spring retains small ball-in
a
recess.
Exercise care when removing spring
to
prevent
misplacing or dropping small ball.
Remove fork
support
from lower transmission
case.
11
Remove
two
bushings and washers from
axle shaft. Inspect bushings and axle shaft for
wear or damage.
SPECIFICATIONS
Bushing
I.D.
0.5024
mlnlmum
0.5051
maxlmum
Axle
Shaft
O.D.
0.4983
mlnlmum
0.5000
maxlmum
Clutch
Bushing
10-4
