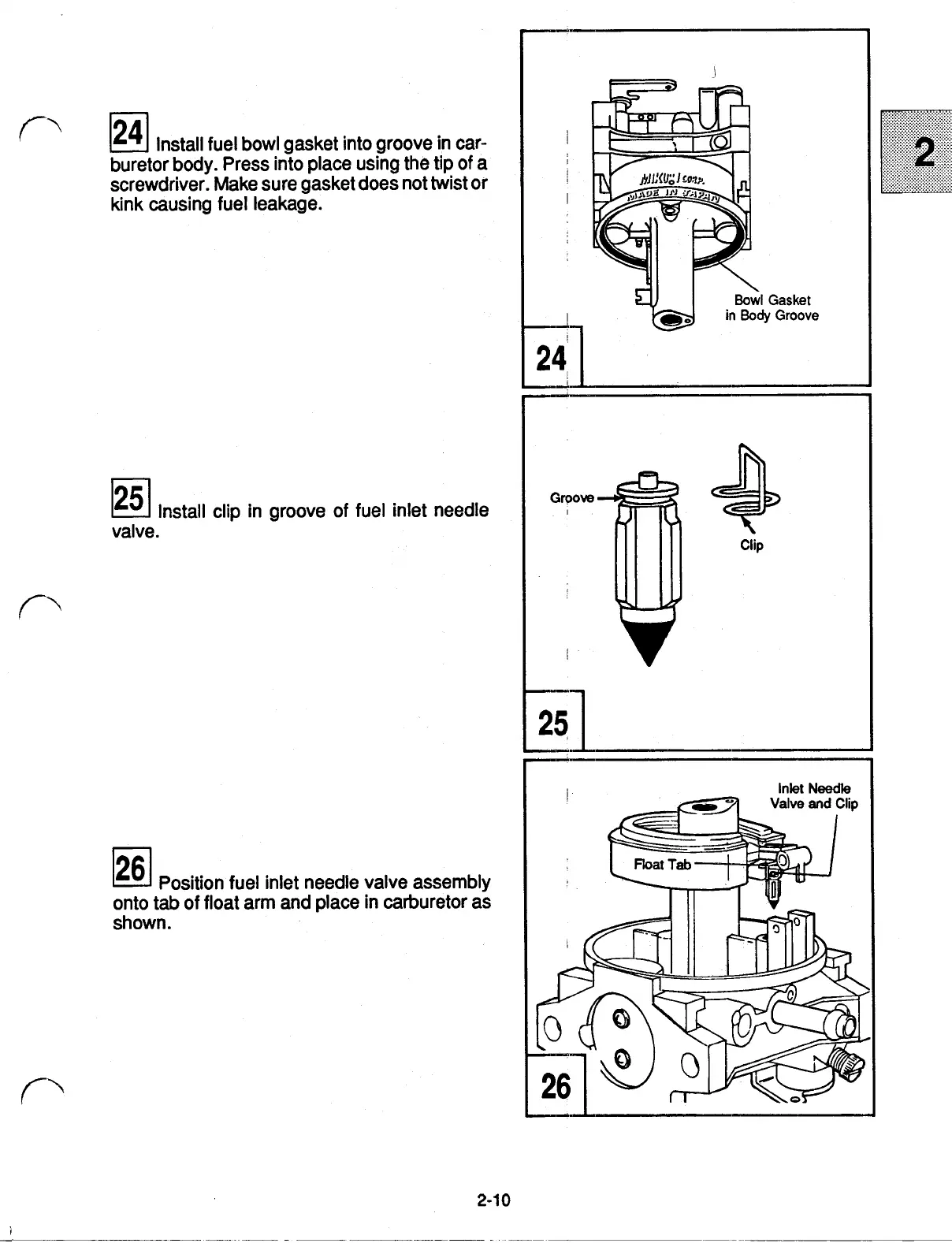

Install fuel bowl gasket into groove in car-
buretor body. Press into place using the tip
of a
screwdriver. Make sure gasket does not twist or
kink causing fuel leakage.
Install clip in groove of fuel inlet needle
valve.
Position fuel inlet needle valve assembly
onto tab of float arm and place in carburetor
as
shown.
2-10
Gasket
I in Body Groove
Groove
I
Clip
Inlet Needle
