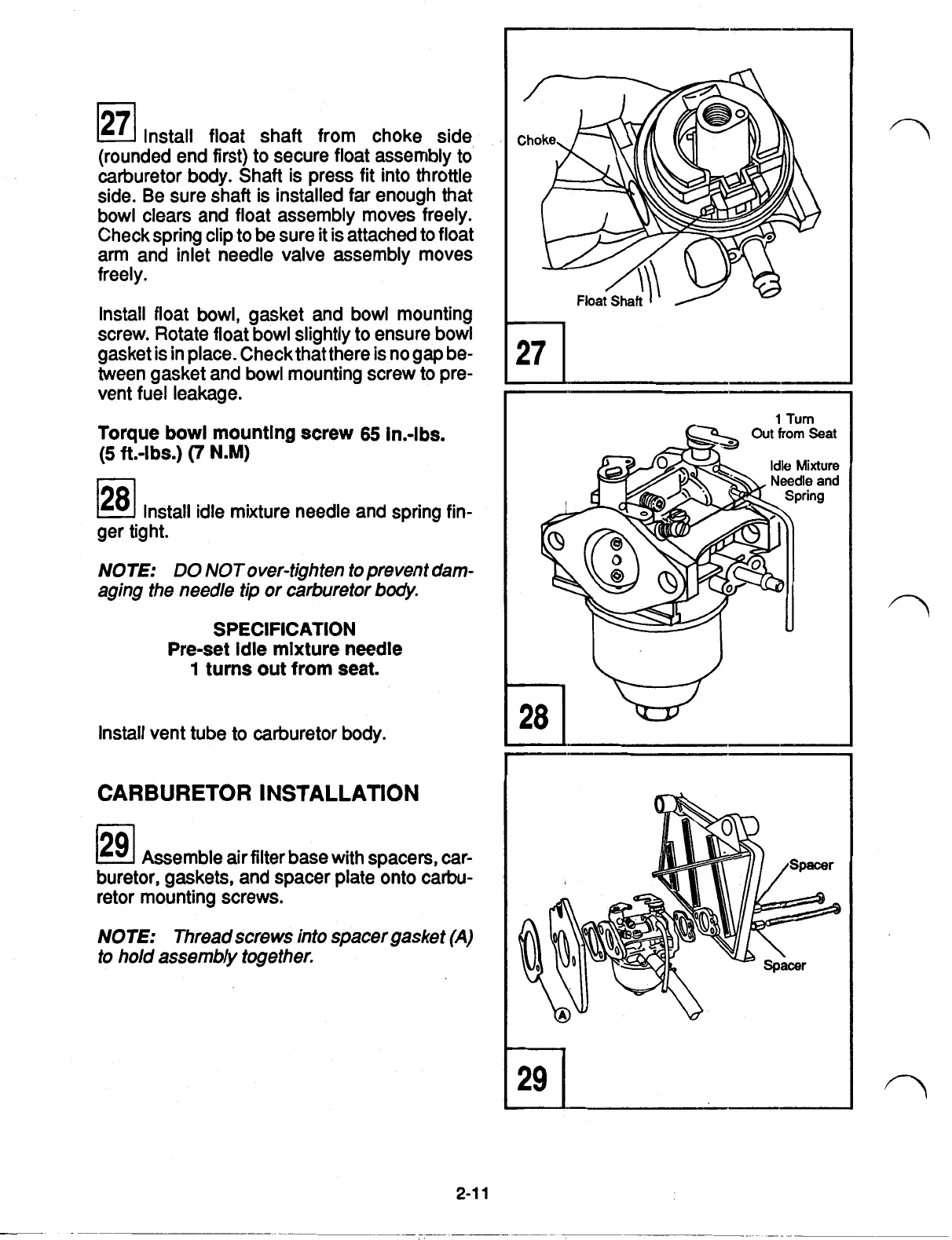

Install float shaft from choke side
(rounded end first) to secure float assembly to
carburetor body. Shaft is press
fit
into throttle
side. Be sure shaft is installed far enough that
bowl clears and float assembly moves freely.
Checkspring clip to be sure it is attached to float
arm and inlet needle valve assembly moves
freely.
Install float bowl, gasket and bowl mounting
screw. Rotate float bowl slightly to ensure bowl
gasket is in place. Checkthat there is no gap be-
tween gasket and bowl mounting screw to pre-
vent fuel leakage.
Torque bowl mounting screw
65
in.-lbs.
1281
Install idle mixture needle and spring fin-
ger tight.
NOTE:
DO
NOT
over-tighten to prevent dam-
aging the needle
tip
or carburetor body.
(5
ft.-lbs.)
(7
N.M)
SPECIFICATION
Pre-set idle mlxture needle
1
turns out from seat.
Install vent tube to carburetor body.
CARBURETOR INSTALLATION
Assemble air filter base with spacers,
car-
buretor, gaskets, and spacer plate onto carbu-
retor mounting screws.
NOTE:
Thread screws into spacergasket
(A)
to hold assembly together.
2-1
1
1
Turn
Out
from
Seat
I
