n

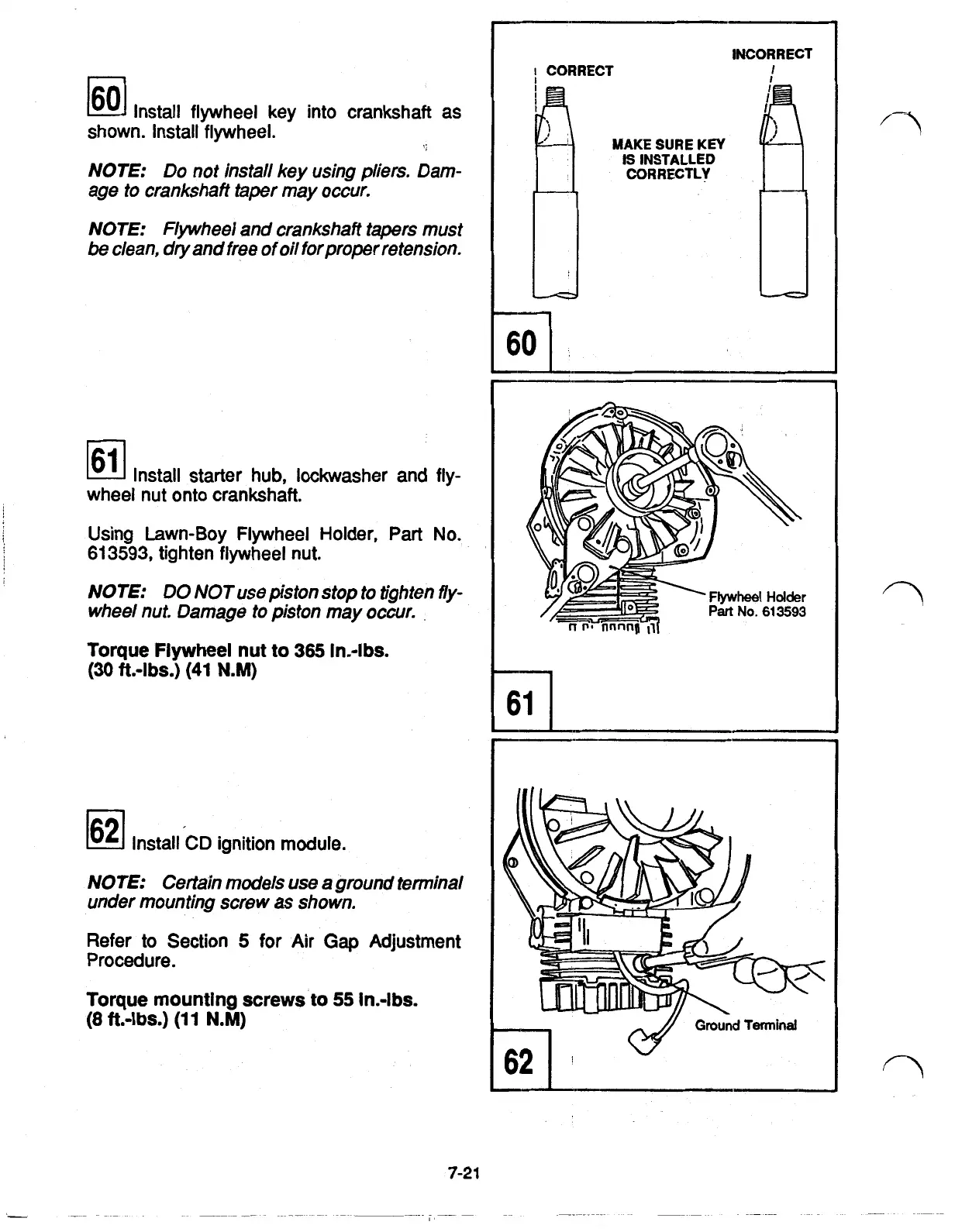

Install flywheel key into crankshaft as
shown. Install flywheel.
NOTE:
Do not install key using pliers. Dam-
age to crankshaft taper may occur.
NOTE:
Flywheel and crankshaft tapers must
be
clean, dry and free of oil for proper retension.
61
Install starter hub, lockwasher and fly-
wheel nut onto crankshaft.
Using Lawn-Boy Flywheel Holder, Part
No.
613593,
tighten flywheel nut.
NOTE:
DO NOT use piston stop to tighten fly-
wheel nut. Damage to piston may occur.
Torque Flywheel nut
to
365
In.-lbs.
(30
ft.-lbs.)
(41
N.M)
62
Install
CD
ignition module.
NOTE:
Certain models use
a
ground terminal
under mounting screw
as
shown.
Refer to Section
5
for Air
Gap
Adjustment
Procedure.
Torque mounting screws to
55
In.-lbs.
(8
ft.-lbs.)
(11
N.M)
INCORRECT
I
CORRECT
MAKE
SURE
KEY
IS
INSTALLED
CORRECTLY
Part
No.
613593
I
I
