LeCroy WaveAce series User Manual

Getting Started Manual
WA-GSM-E RevB
20

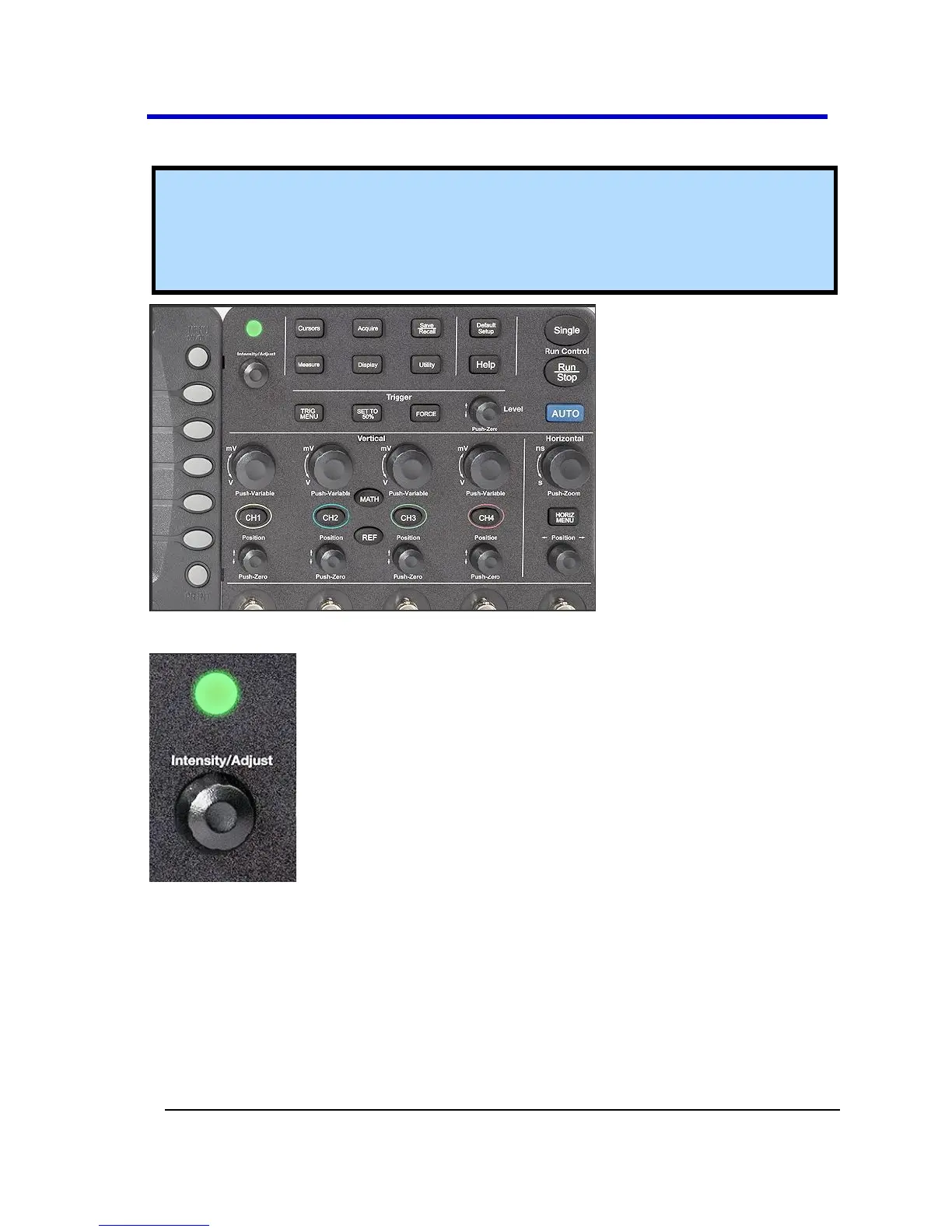

Front Panel Controls
Note: Although control locations on 4 and 2 channel versions vary, the
controls themselves are identical. Meaning, the pictures used in the
following illustrations are from the 4 channel version and therefore look
the same on the 2 channel as well.
Intensity/Adjust Knob
 Intensity/Adjust knob - You can use the Adjust knob with many
functions, such as adjusting the holdoff time, moving cursors,
setting the pulse width, setting the video lineage adjusting the
upper and lower frequency limits, adjusting X and Y masks when
using the Pass/Fail function, etc. You can also turn the Adjust knob
to adjust the storage position of setups, waveforms, pictures when
saving/recalling and to select menu options.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
