LeCroy WaveAce series User Manual

Getting Started Manual
WA-GSM-E RevB
58

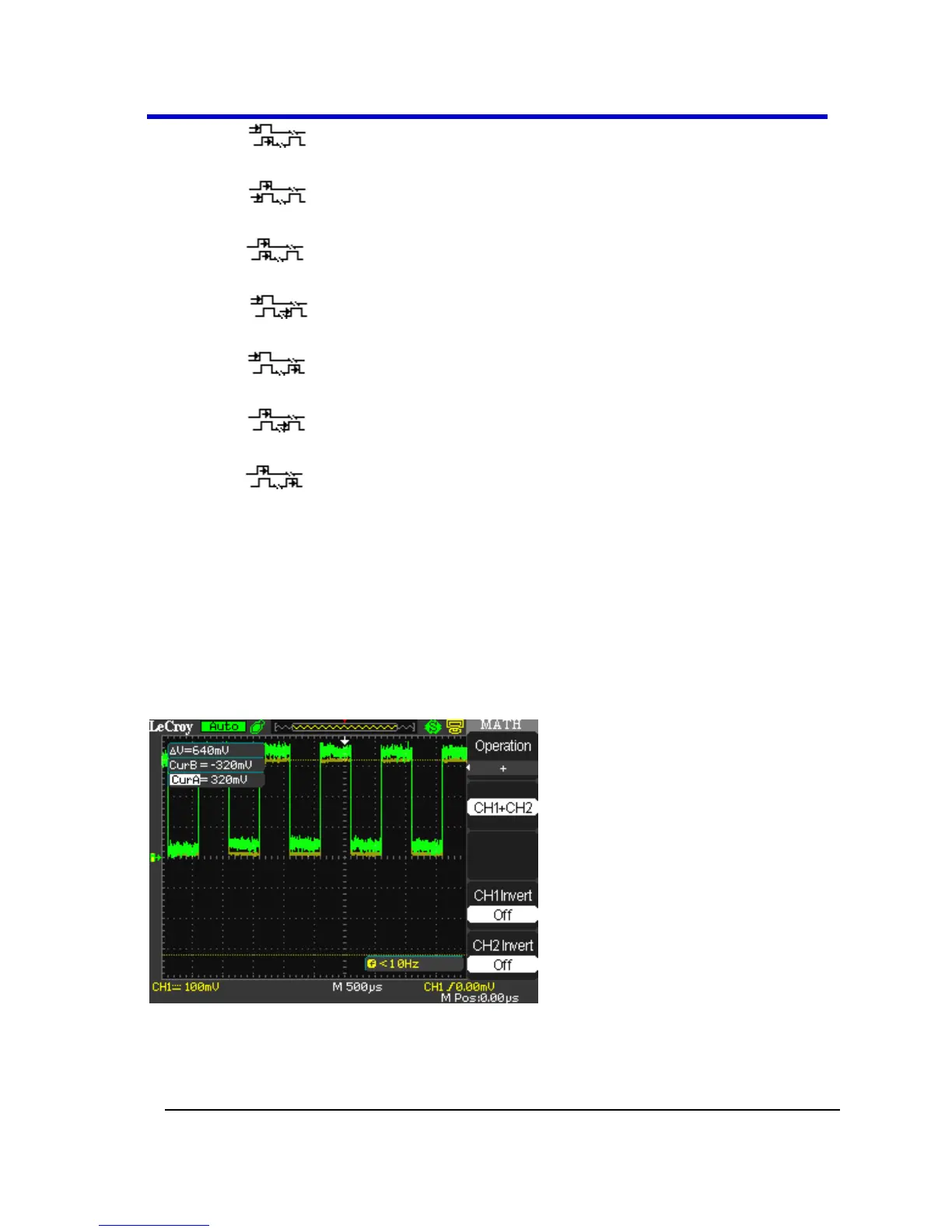

 FRF - Time between the first rising edge of Source 1 and the
first falling edge of Source 2.
 FFR - Time between the first falling edge of Source 1 and the
first rising edge of Source 2.
 FFF - Time between the first falling edge of Source 1 and the
first falling edge of Source 2.
 LRR - Time between the first rising edge of Source 1 and the
last rising edge of Source 2.
 LRF - Time between the first rising edge of Source 1 and the
last falling edge of Source 2.
 LFR - Time between the first falling edge of Source 1 and the
last rising edge of Source 2.
 LFF - Time between the first falling edge of Source 1 and the
last falling edge of Source 2.
Waveform Math
Waveform Math Overview
Standard math functions include addition, subtraction, multiplication,
division, and FFT. For more information on FFT, see the FFT (on page 59)
section. Press the MATH front panel button in the Vertical Control group
to display the Math menu.
1. Press the Operation option button and select a math operator +, -,
*, /, or FFT.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
