LeCroy WaveAce series User Manual

WaveAce Series
57
WA-GSM-E RevB
 +Wid - Time between the first rising edge and the next rising
edge at the waveform 50% level.
 -Wid - Time between the first falling edge and the next rising
edge at the waveform 50% level.
 Rise Time - Duration of pulse waveform's rising transition
from 10% to 90%, averaged for all rising transitions between the
cursors.
 Fall Time - Duration of pulse waveform's falling transition
from 90% to 10%, averaged for all falling transitions between the
cursors.
 BWid - Duration of a burst measured over the entire
waveform.
 +Dut - Ratio between positive pulse width and period.
 -Dut - Ratio between negative pulse width and period.

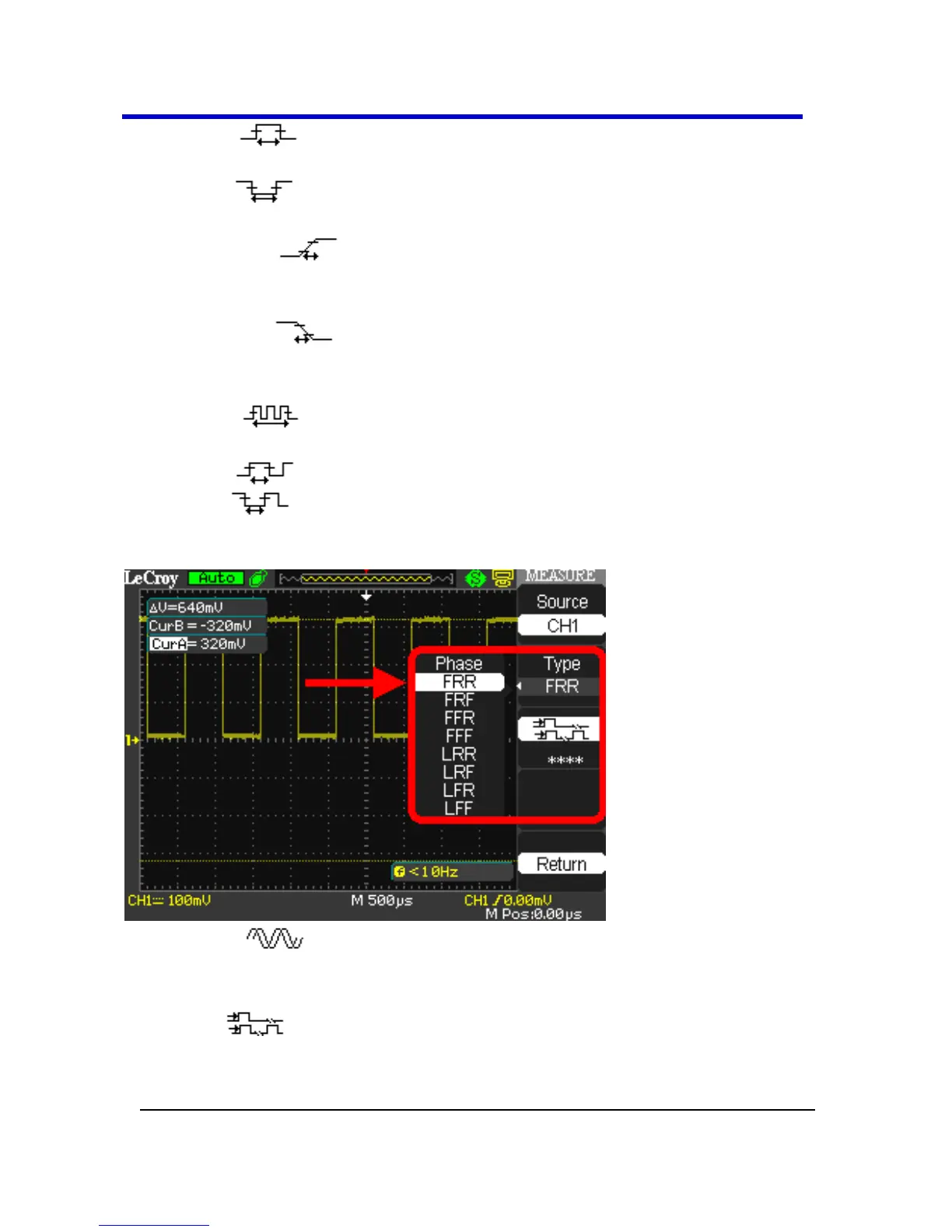

DELAY MEASUREMENT PARAMETERS
 Phase - Amount one waveform leads or lags another in time
expressed in degrees, where 360 degrees comprise one waveform
cycle.
 FRR - Time between the first rising edge of Source 1 and the
first rising edge of Source 2.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
