Print - Page 2/2
After pressing Next Page from Page 1/2, the second of two PRINT menus
(Page 2/2) is shown and contains the following option button functions.
 Image Size - Choose from Default, 2.5x3.25 in, L (3.5x5 in), 4x6 in,
2L (5x7 in), 8x10 in, 4L (7 x 10 in), E, Card, Hagaki card, 6 x 8 cm,
7x10 cm, 9x13 cm, 10x15 cm, 13x18 cm, 15x21 cm, 18x24 cm, and
A4, Letter
 Paper Type - Choose from Default, plain, Photo, and Fast Photo.
 Print Quality - Choose from Default, Normal, Draft, and Fine.
 ID Print - Choose from Default, On, and Off.
 Next Page - Use this option button to show Page 1/2.

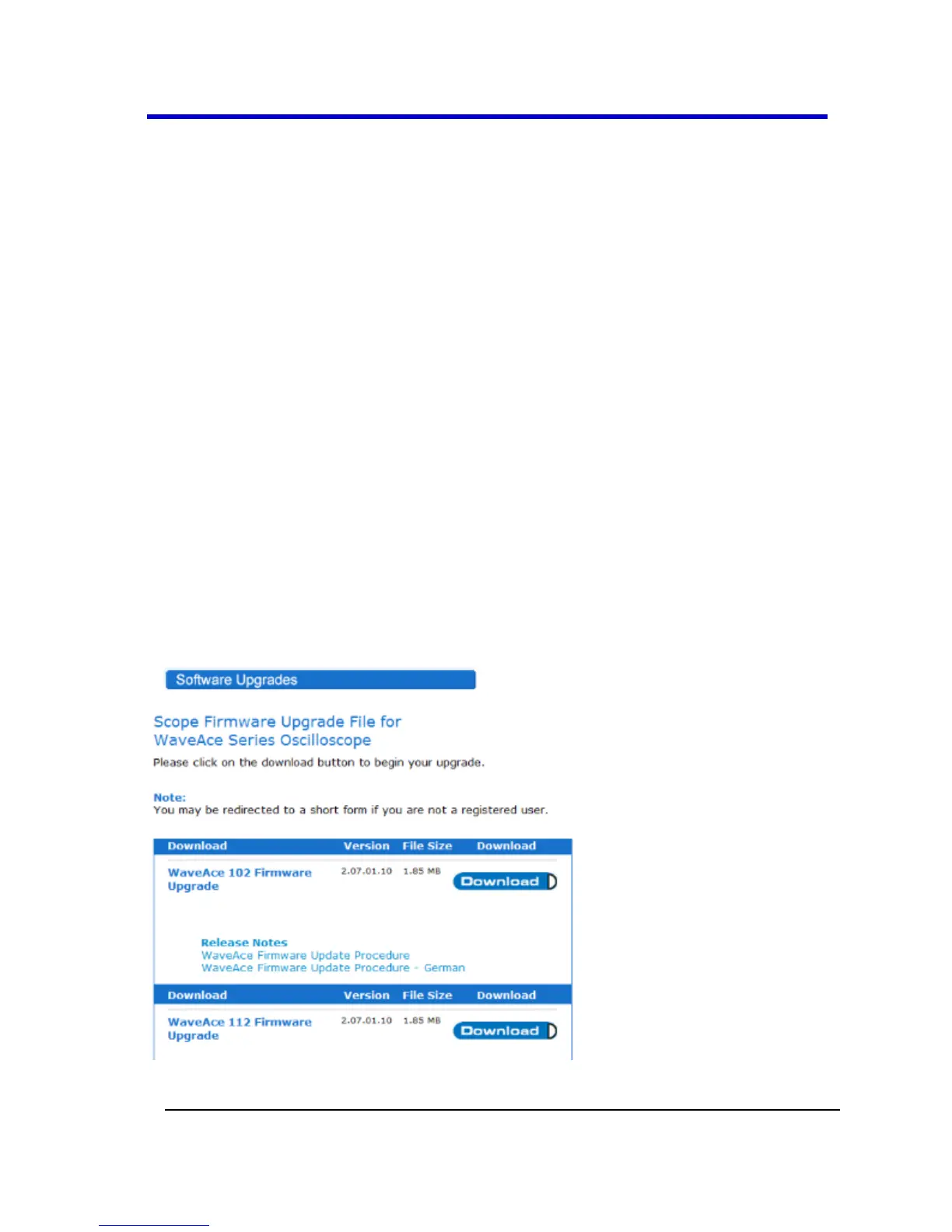

Updating the System Software
LeCroy periodically releases software updates for the WaveAce which
provide new features, enhancements, and software corrections. These
updates are available for download from the LeCroy website at
www.lecroy.com. After registering your product, you can select the
appropriate download based on your specific WaveAce oscilloscope
model.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
