Sinx/x interpolation is suitable for reconstructing curved or irregular wave
shapes, especially when the sample rate is 3 to 5 times the system
bandwidth.
Sampling Settings
You can choose between Equivalent Time Sampling and Real Time
Sampling settings.
 Equivalent Time Sampling can achieve up to 20 ps of horizontal
resolution (equivalent to 50 GS/s). This mode is good for observing
repetitive waveforms.
 Real Time Sampling can be used for repetitive and non-repetitive
waveforms.

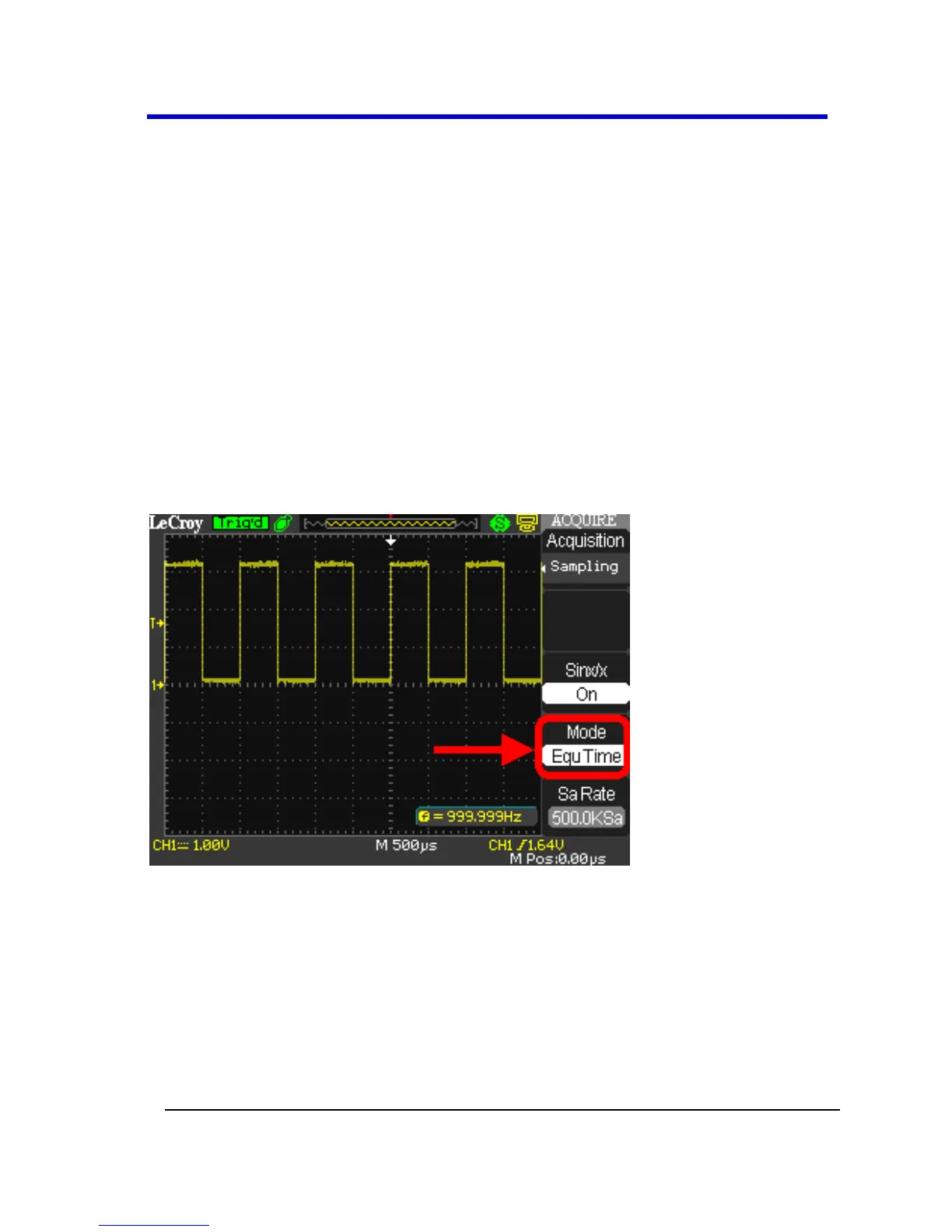

Select from the sampling settings by pressing the Mode option button and
selecting Equ Time or Real Time.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
