LeCroy WaveAce series User Manual

WaveAce Series
79
WA-GSM-E RevB
3. Turn the Frequency Counter ON/OFF.
4. Use the Language function to choose the local language of the user
interface.
5. Press the Next Page option button to display page 2/4.

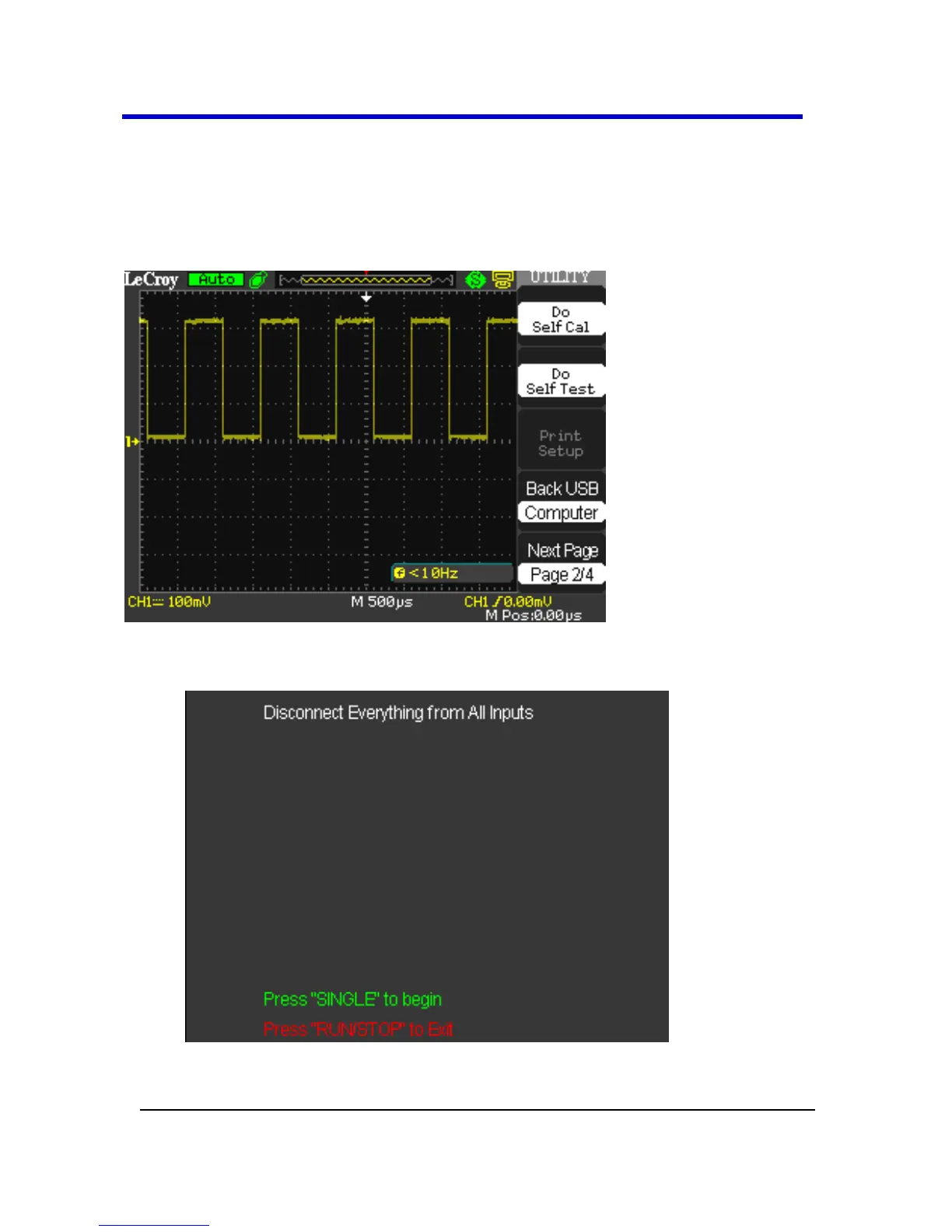

Utility Menu - Page 2/4
1. Press the Do Self Cal option button to perform a self-calibration.
The Do Self Cal screen is shown.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
