LeCroy WaveAce series User Manual

Getting Started Manual
WA-GSM-E RevB
80

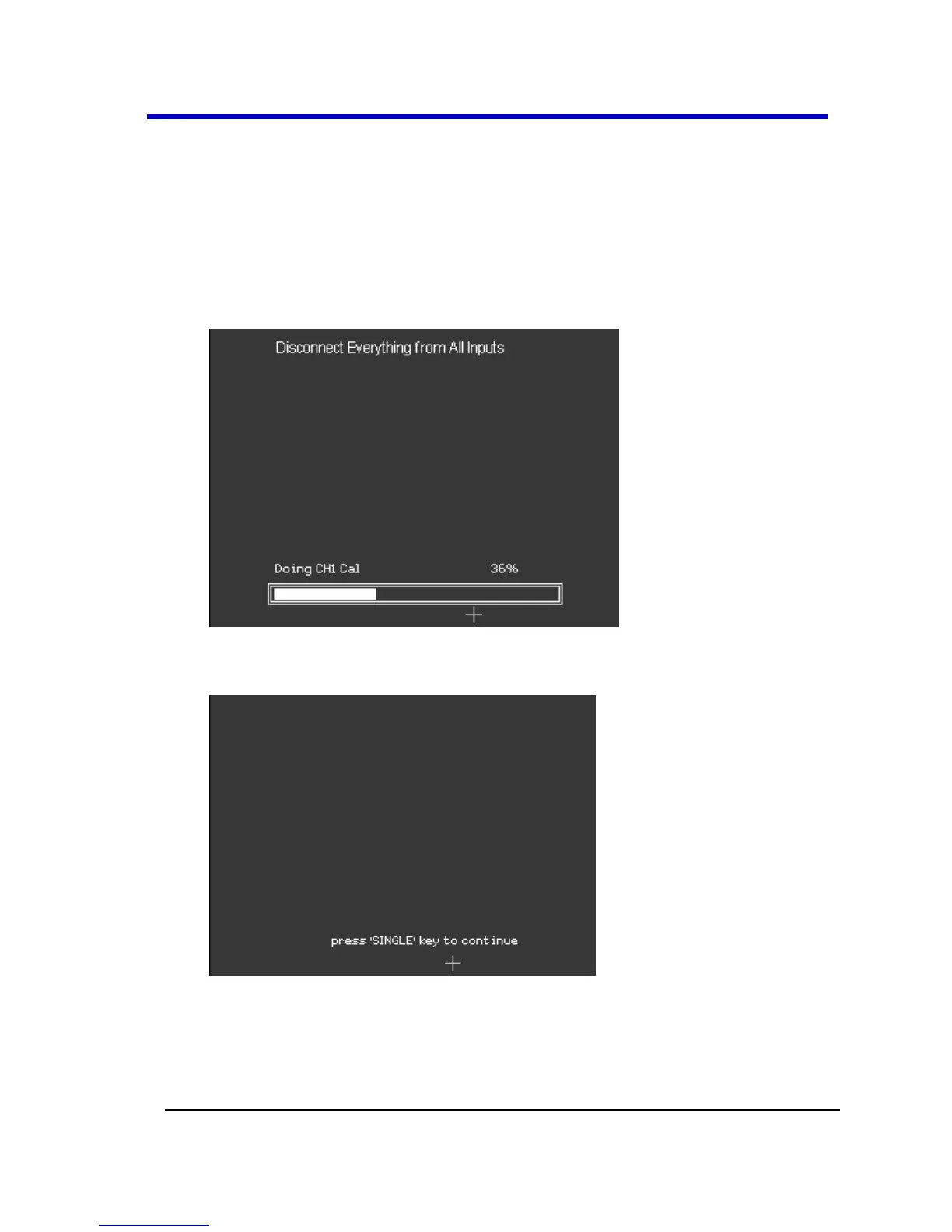

 As the screen indicates, disconnect anything plugged into
receptacles (except for the power cable) before performing a self-
calibration.
 Press the SINGLE front panel button to begin the self-calibration or
the RUN/STOP front panel button to exit the Do Self Cal screen.
After pressing the SINGLE front panel button, a status bar shows the
self-calibration progress for each channel on the instrument.
Press the SINGLE front panel button when self-calibration is
complete.
2. Press the Do Self Test option button to perform a self-test.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
