 Only when the Back USB option button (covered in the next
step) is set to Printer is the Print Setup option button
enabled for use.
 When printing, make sure your printer is connected to your
WaveAce oscilloscope.
For more information, see the Print Setup (on page 87) section.
3. Press Back USB and choose either Computer or Printer as desired
based on what you connect to your instrument using the USB Type
B Receptacle on the back of the oscilloscope.
4. Press the Next Page option button to display page 3/4.

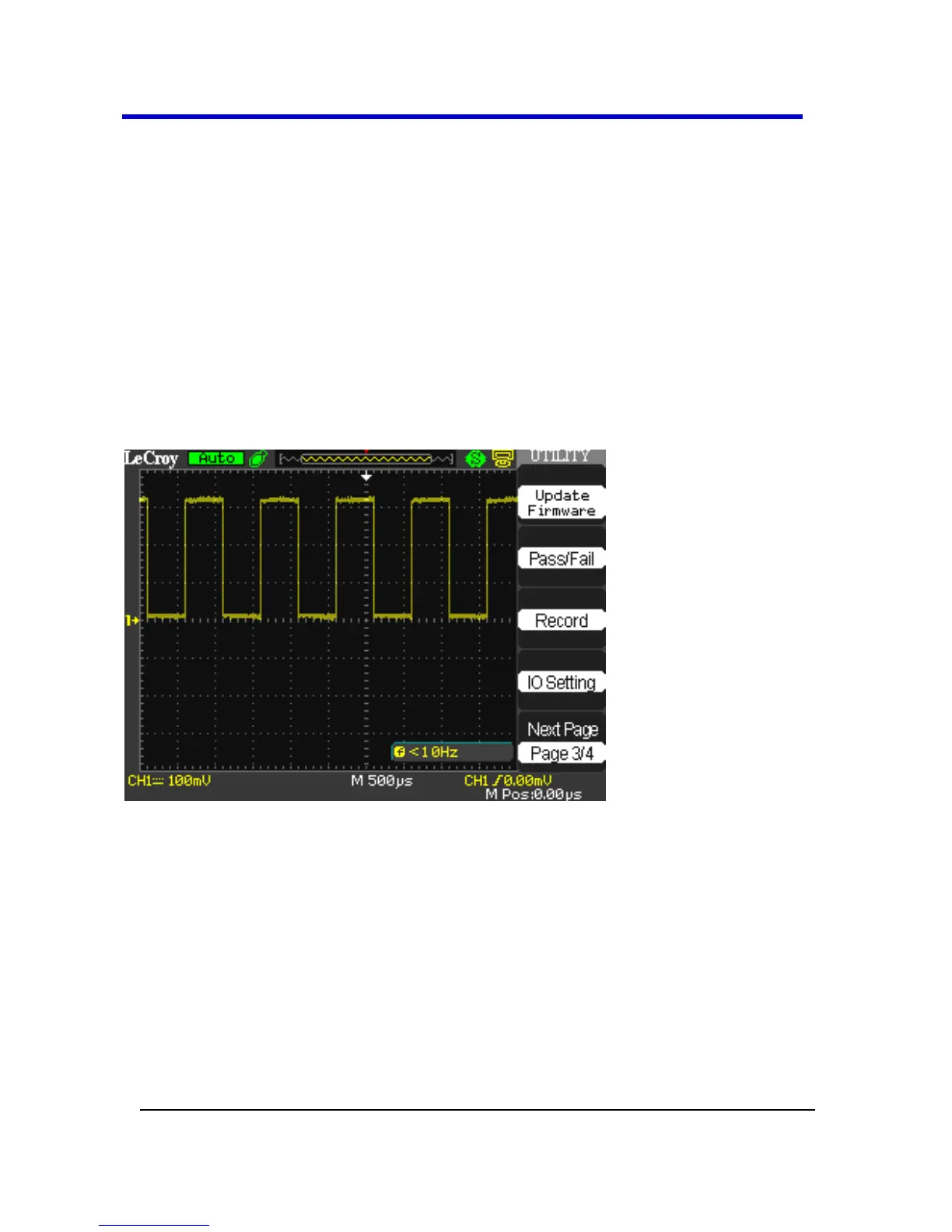

Utility Menu- Page 3/4
1. Press the Update Firmware option button to update the
oscilloscope using the USB memory device. For more information,
see the Updating the System Software (on page 88) section.
2. Pressing the Pass/Fail option button shows the Pass/Fail menu
where you can monitor changes of signals and output pass or fail
signals by judging whether the input signal is within the predefined
mask. For more information, see Using Pass/Fail (on page 91).

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
