LeCroy WaveAce series User Manual

Getting Started Manual
WA-GSM-E RevB
82

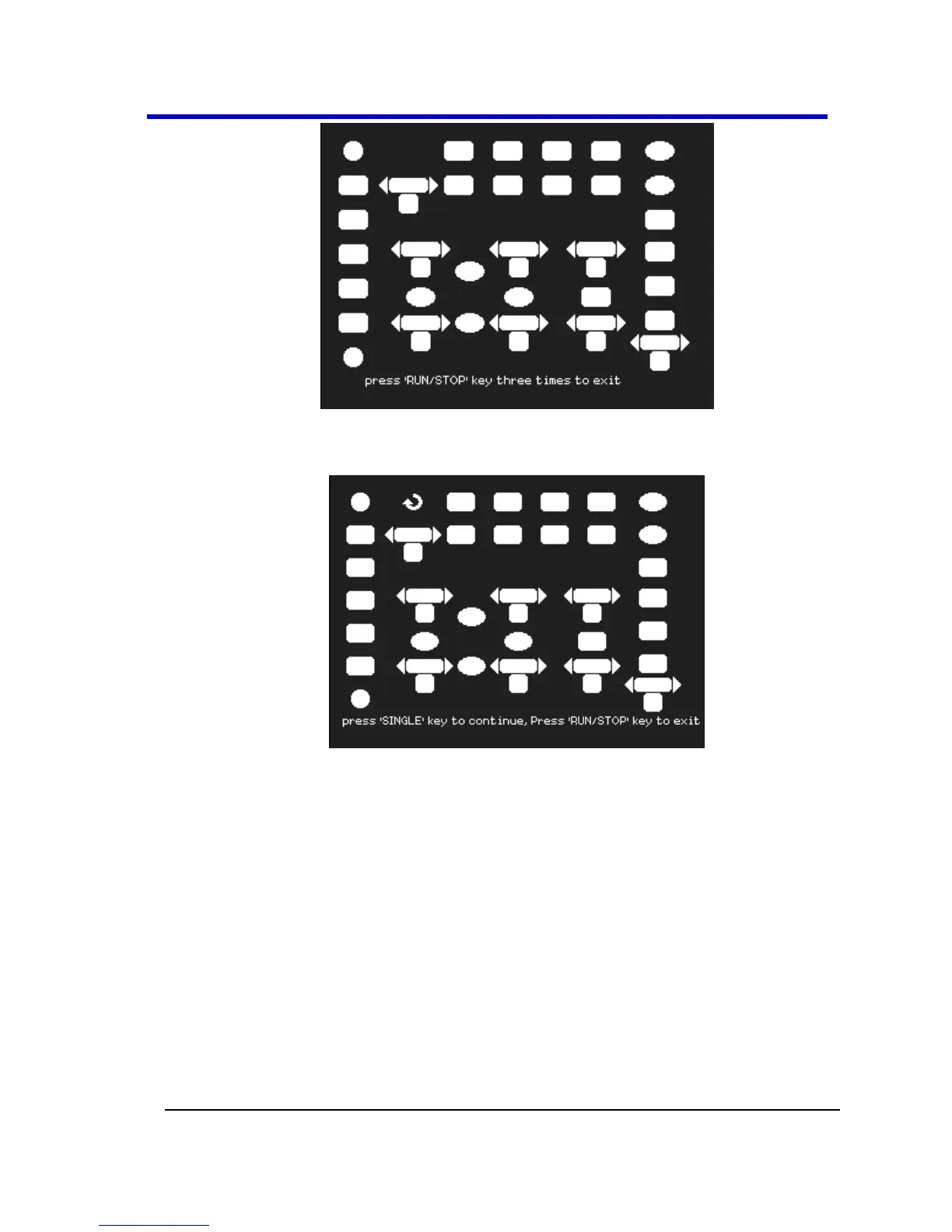

Figure 4-6. As the screen indicates, press the RUN/STOP front panel
button three times to perform the Keyboard Test and exit.
Figure 4-7. Each press of the SINGLE front panel button colors a symbol
representing a front panel button and illuminates the button on the
actual front panel. Test as many LEDs as desired. As the screen indicates,
press the RUN/STOP front panel button to exit.
2. Press the Print Setup option button to set up your print options.
The Print menu (Page 1/2) is shown.
PLEASE NOTE THE FOLLOWING:
 After using an option button to select either the Do Self Test,
and Print Setup (when enabled) functions, more options are
then shown. You can return to the original menu by pressing
the UTILITY front panel button.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
