 Load - Press the Load option button to retrieve a stored
mask. After pressing, the mask is retrieved Internally, or the
SAVE ALL screen is shown, depending on your Location
setting.
 Return - Press the Return option and the Pass/Fail menu is
shown.
4. Press the Return option button and the Utility menu is shown.
Using Record
The Record function can record the input waveform from CH1 and CH2
(also, CH3 and CH4 on four channel versions), with a maximum record
length of 2500 frames. This keeps you from having to watch the signal
when capturing abnormal signals over a long period of time.

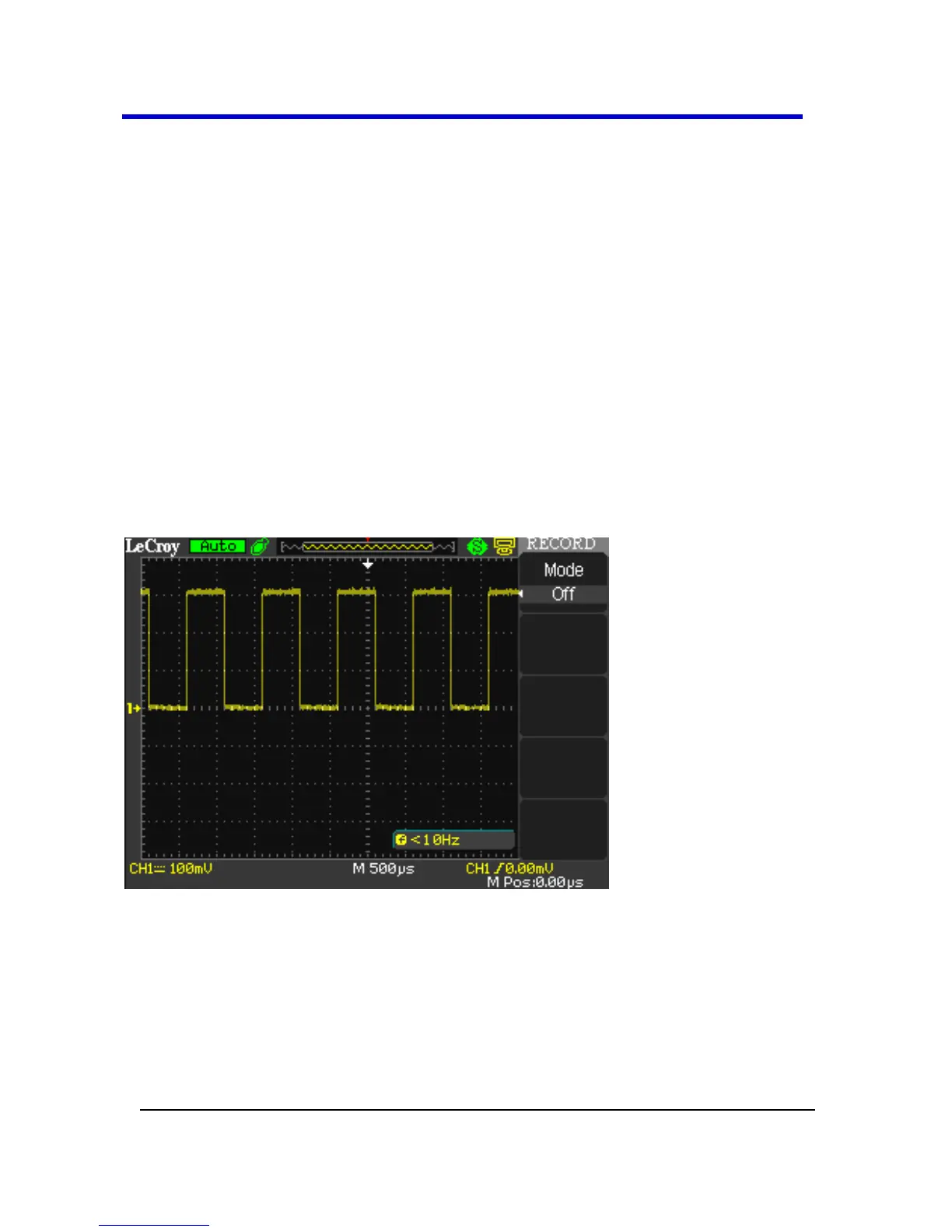

Access the Record function by pressing the corresponding option button
on the Utility menu. The Record menus are then shown.
The Record function operates in three Modes: Off, Record, and Playback.
As shown previous, no option button functions are available when the
Record's Mode is set to Off.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
