LeCroy WaveAce series User Manual

Getting Started Manual
WA-GSM-E RevB
94
 X Mask - Press the X Mask option button and use the Adjust
front panel knob to dial in the desired range of horizontal
waveform clearance (0.04div - 4.00div).
 Y Mask - Press the Y Mask option button and use the Adjust
front panel knob to dial in the desired range of vertical
waveform clearance (0.04div - 4.00div).
 Create Mask - Press the Create Mask option button to create
a test mask with the clearances specified using the X and Y
Mask settings.
 Location - Press the Location option button to select from
Internal (to store the mask into oscilloscope memory) or
External (to store the mask onto a USB memory device Using
the SAVE ALL Screen (on page 75)).
 Next Page - Press the Next Page option button to show Mask
Page 2/2.

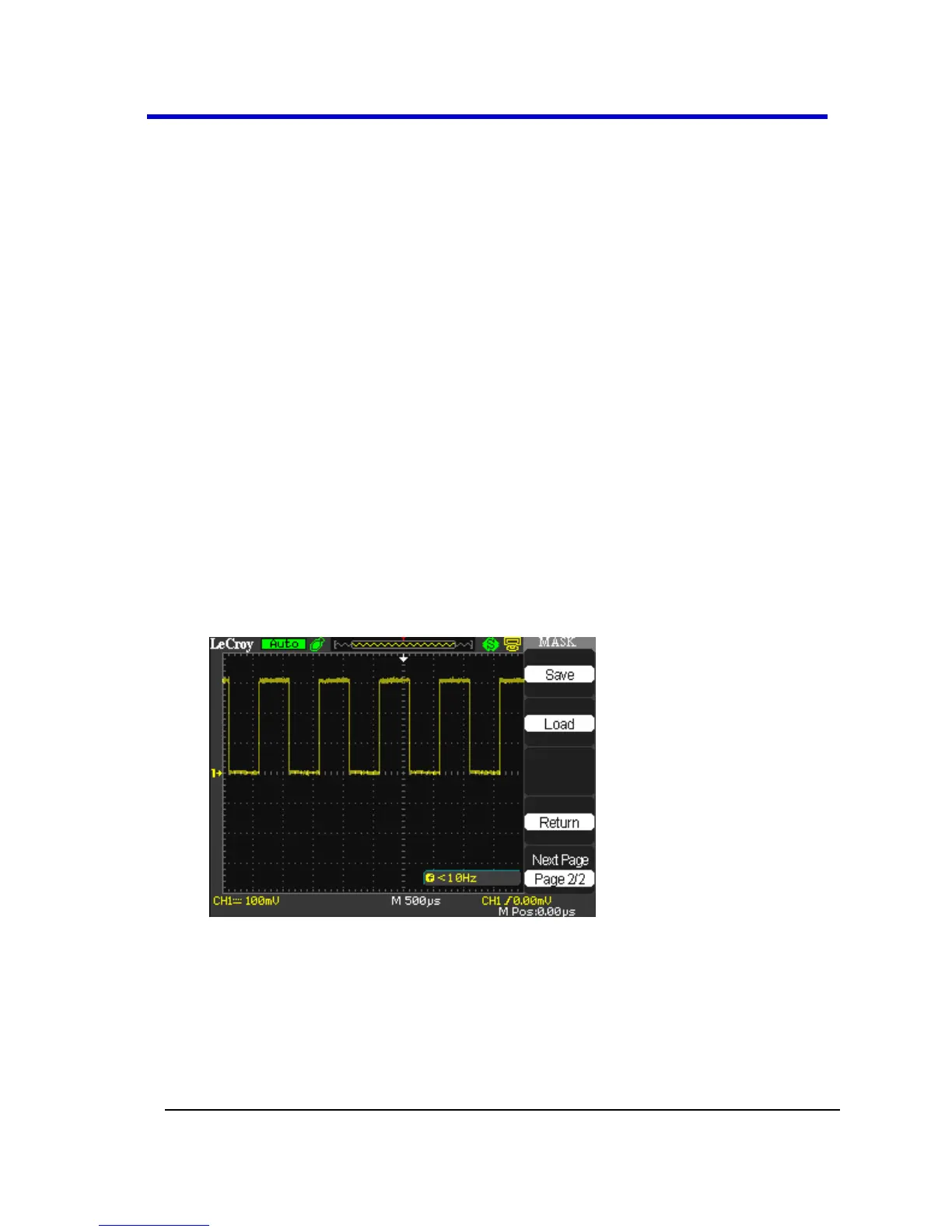

Mask - Page 2/2
After pressing the Next Page option button, Mask menu Page 2/2 is
shown which contains the following option button functions.
 Save - Press the Save option button to store your mask. After
pressing, the mask is saved Internally, or the SAVE ALL
screen is shown, depending on your Location setting.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
