PLEASE NOTE THE FOLLOWING:
The default setting for the Probe option is 1X.
Be sure that the Attenuation switch on the probe matches the
Probe option in the oscilloscope. Switch settings are 1X and 10X.
When the Attenuation switch is set to 1X, the probe limits the
bandwidth of the oscilloscope to 10MHz. To use the full bandwidth
of the oscilloscope, be sure to set the switch to 10X.
Inverting Waveforms
Use the following steps to invert your waveform.
1. Invert the waveform by turning on the specific channel. Press the
desired channel button - CH1 or CH2 (or CH3 or 4 on 4 channel
models).

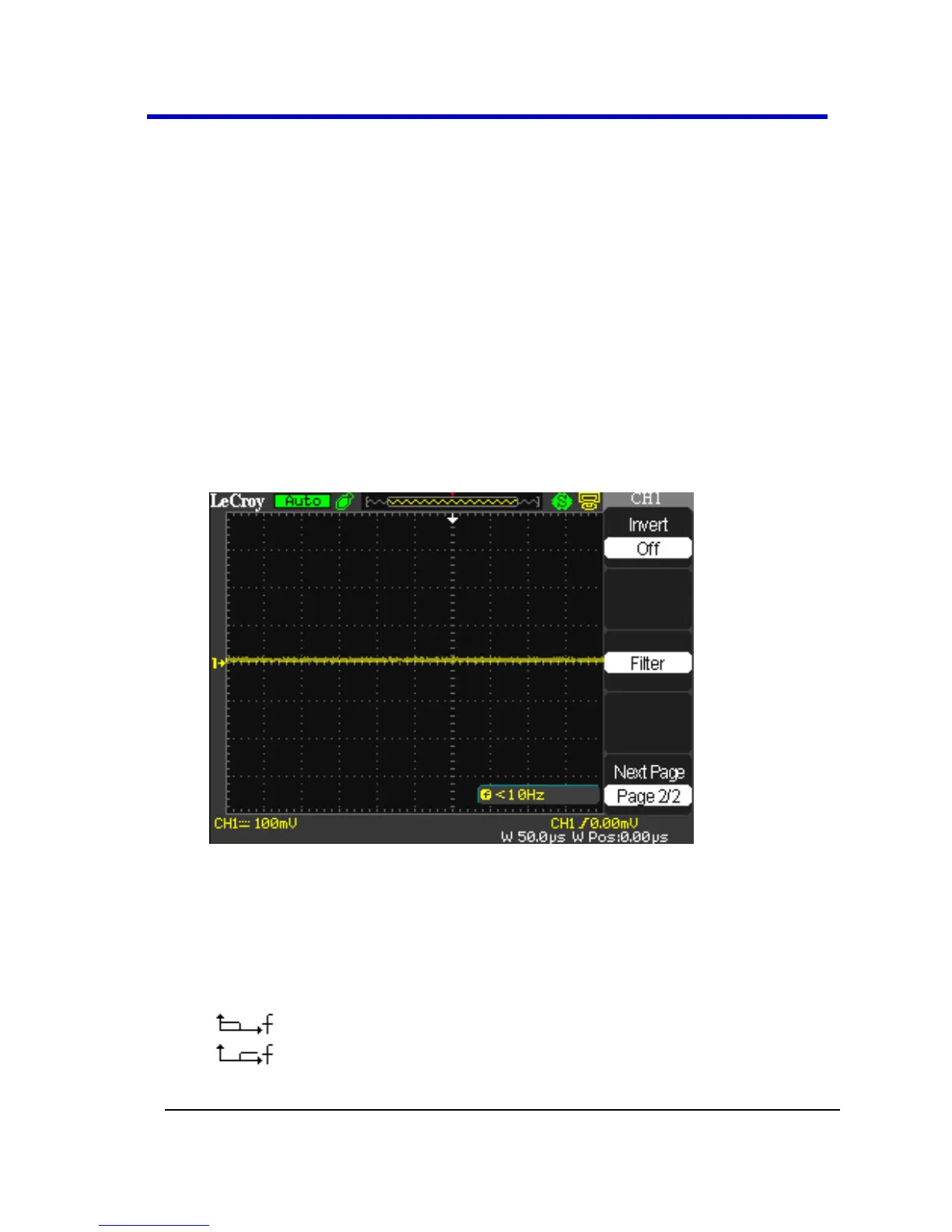

2. Now, on the channel menu, press the Next Page option button,
showing page 2/2.
3. Press the Invert option button on page 2/2, and then select On.
Using the Digital Filter
You can choose from the following digital filter types:
Low Pass Filter (LPF)
High Pass Filter (HPF)
To Next Page
