LeCroy WaveAce series User Manual

WaveAce Series
65
WA-GSM-E RevB
Saving and Recalling Waveforms
You can quickly save waveforms in internal memory (up to 20 waveforms)
or on a USB memory device (limited by memory capacity of USB device).
You can display up to three waveforms at the same time. You can easily
recall these saved waveforms later.
Saving Waveforms
1. Display the waveform(s) you want to save and press the Save/Recall
front panel button. The SAVE/REC menu is shown.
2. Press the Type option button and select Waveforms.
3. Save the waveform either to internal memory or on a USB memory
device using the following methods.

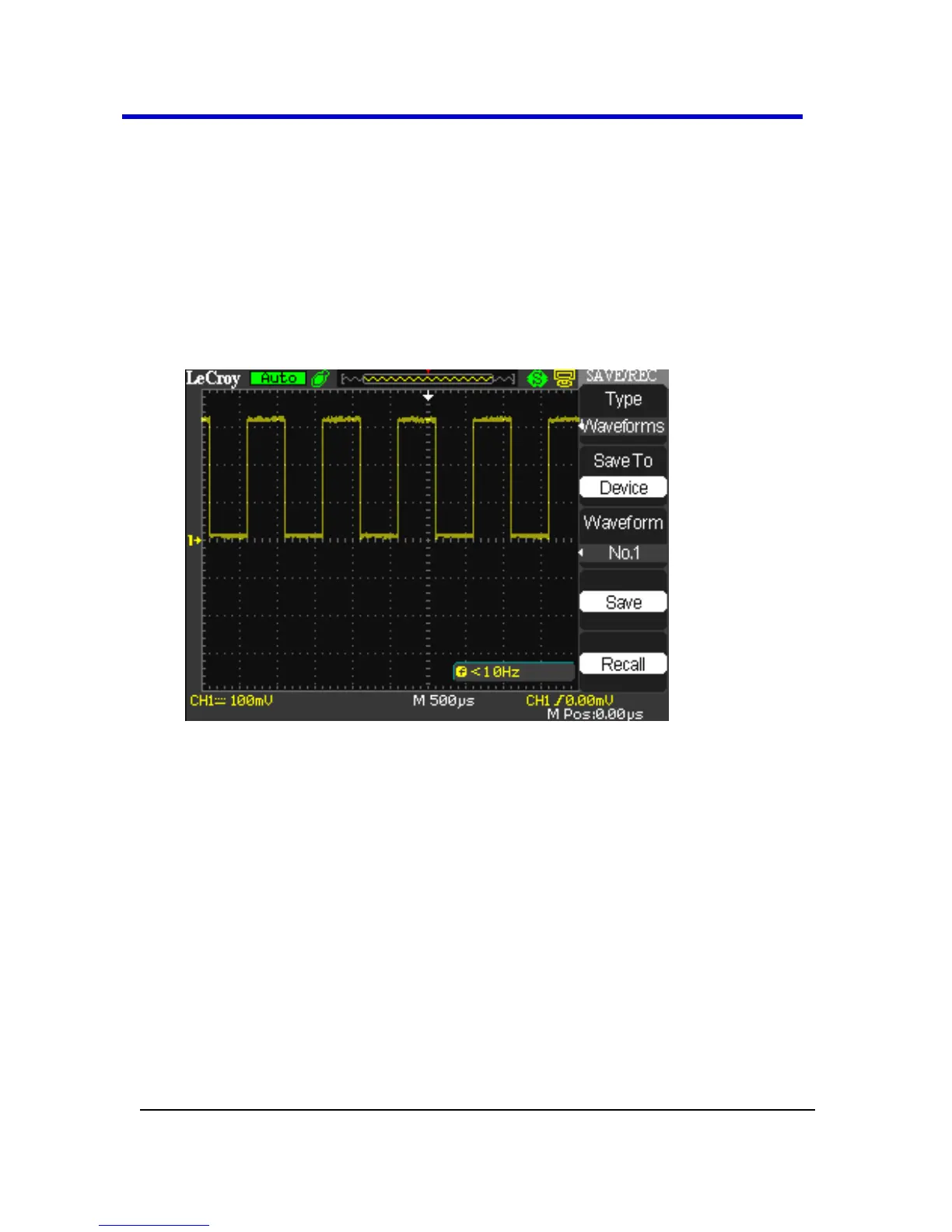

Saving Waveforms to Internal Memory
 Press the Save To option button to select Device.
 Press the Waveform option button or turn the Adjust knob
to assign a number (No. 1 - No. 20) to the waveform.
 Press the Save option button to save the waveform.
 The waveform is saved to memory and the oscilloscope
briefly shows a Store Data Success! message on the lower
part of the grid display area.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
